NINTENDO NES ADVANTAGE JOYSTICK
REPLACEMENT::
DeviceNintendo NES Advantage
DifficultyModerate
TimeNo estimate
Steps6
This guide is by Kristen Gismondi on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Phillips #0 Screwdriver; Spudger


STEP 1::

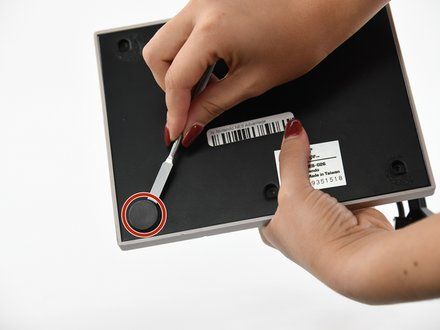

[step 1 photo]
• Remove the four sticky pads from the bottom of the device.
• NOTE: If the pads are stuck, use a spudger to remove them.

STEP 2::

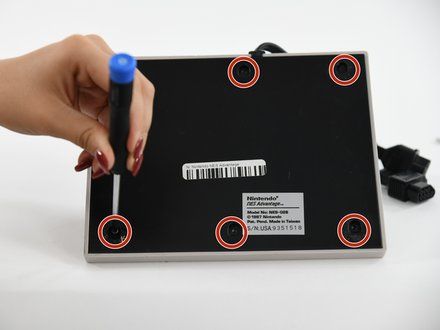

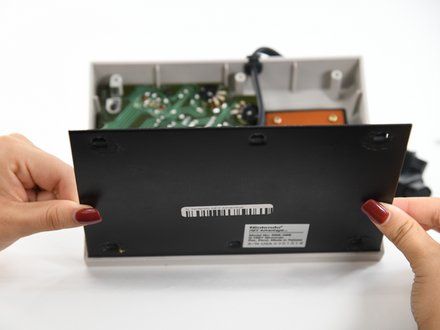

[step 2 photo] [step 2 photo]
• Remove the six 8 mm screws from the bottom of the device with a Phillips #0 screwdriver.
• Use your hands to pull the back panel away from the controller.

STEP 3::

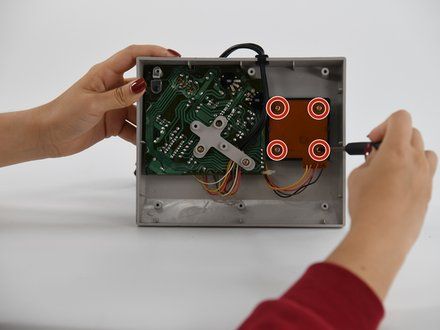

[step 3 photo]
• Remove the four 12 mm screws from the small square panel on the right with a Phillips #0 screwdriver.
• NOTE: While removing the last (fourth) screw, apply downward pressure on the panel. This will make it easier to remove the last screw because of the joystick spring on the other side of this panel.

STEP 4::

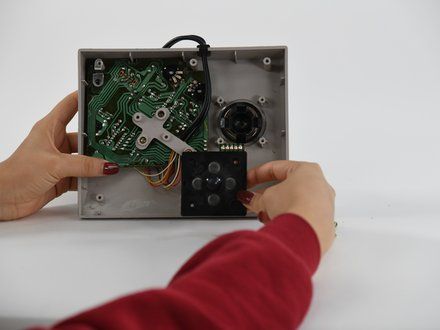

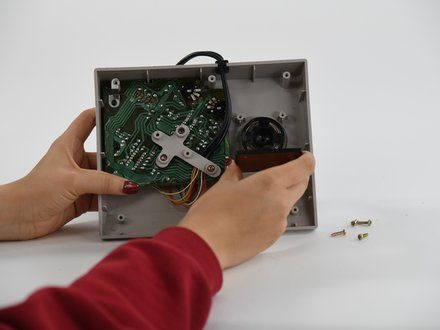

[step 4 photo] [step 4 photo]
• Remove the small square panel.
• REMINDER: This panel is connected with wires to the main circuit board. To replace the joystick panel, you will need to desolder the wires. To learn more about soldering, refer to our How To Solder and Desolder Connections (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750) guide.

STEP 5::

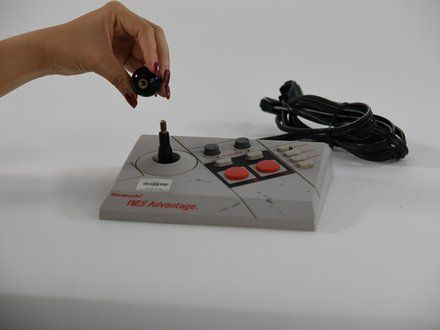

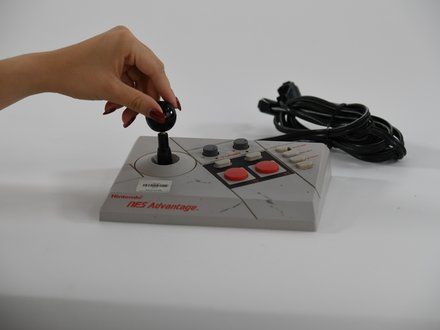

[step 5 photo] [step 5 photo]
• Using your hands, unscrew the ball on top of the joystick.

STEP 6::
[step 6 photo]

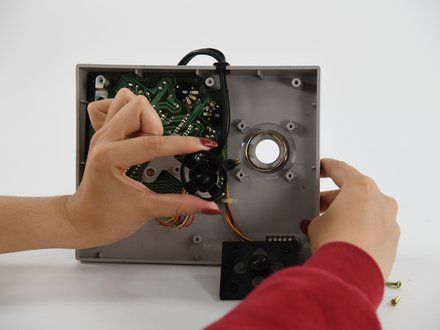

• Pull the joystick through the back of the NES Advantage Gamepad.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Kristen Gismondi on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
