DUALSHOCK 2 D-PAD REPLACEMENT::
DeviceDualShock 2
DifficultyEasy
Time5 - 15 minutes
Steps8
This guide is by Gilberto Rosales on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Improper care and attention to a PlayStation 2 controller can wear down buttons and analog sticks. The D-pad is no exception and can become unusable and sticky to the point of repairs being required. Fortunately, D-pads can be easily replaced so you can get back to playing your favorite PlayStation 2 games. To complete this repair, you'll need a Phillips #00 screwdriver, a D-pad replacement, and tweezers.

Once the repair is done, make sure to store and often clean to reduce the chance of needing to replace again.

Tools: Tweezers; Phillips #00 Screwdriver

Parts: D-pad replacement

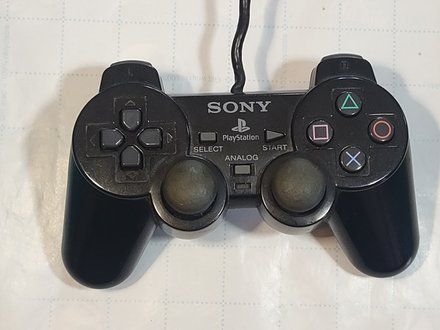

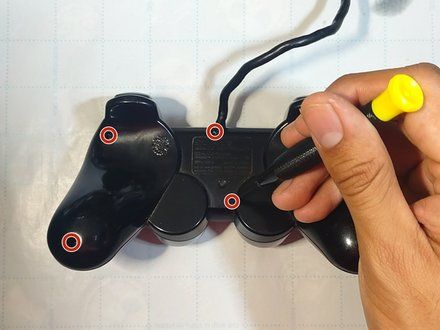

STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

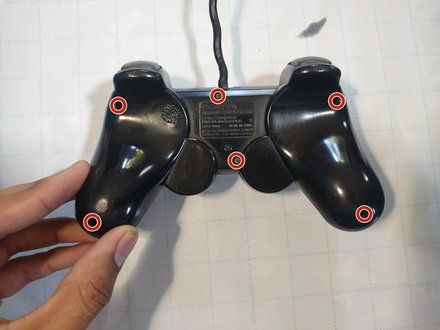

• Turn the controller over.
• Unscrew the six screws using your Phillips #00 screwdriver.

STEP 2::

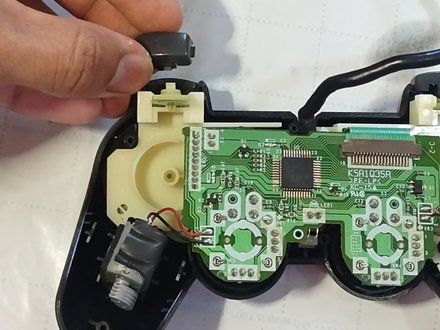

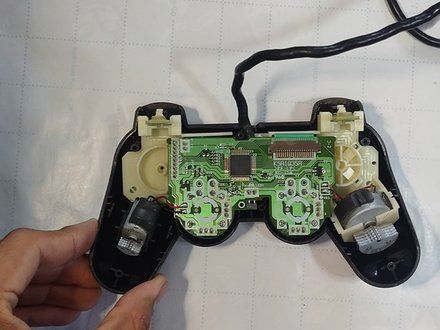

[step 2 photo] [step 2 photo] [step 2 photo]

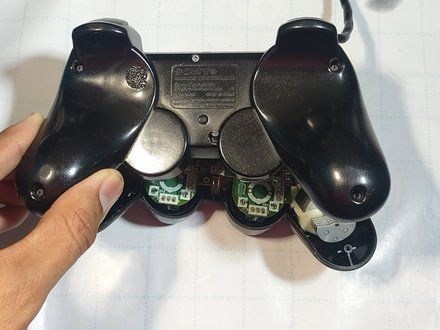

• Remove the back cover from the controller.
• Slide the triggers off by pulling the trigger off the controller and repeat for another side.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

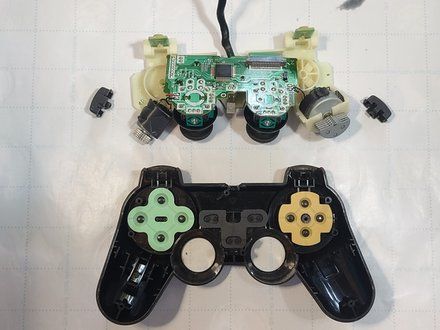

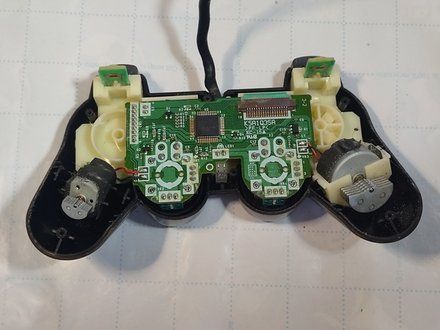

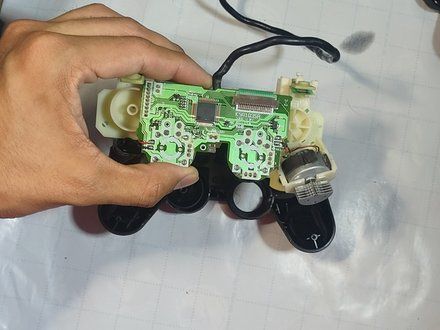

• Remove the circuit board carefully.
• CAUTION: Make sure not to touch any vital components and only grab them by the side.

STEP 4::

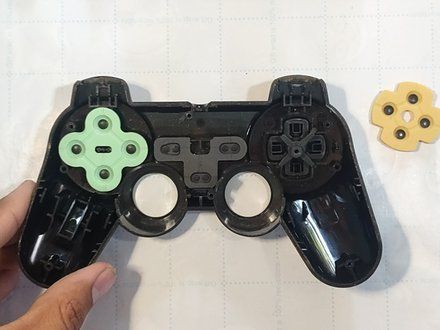

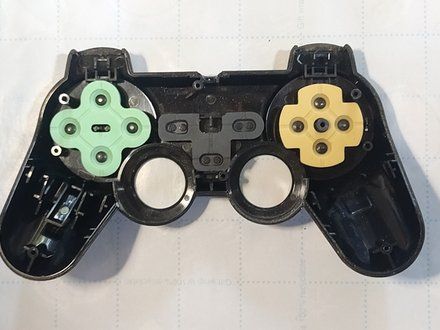

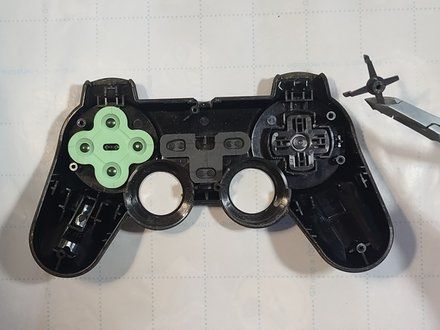

[step 4 photo] [step 4 photo] [step 4 photo]
• Remove the yellow rubber from the D-pad.
• Remove the black plastic bracket with a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers).

STEP 5::

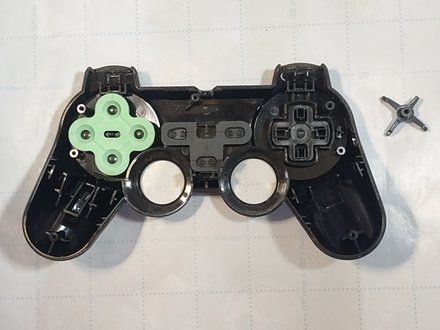

[step 5 photo] [step 5 photo] [step 5 photo]

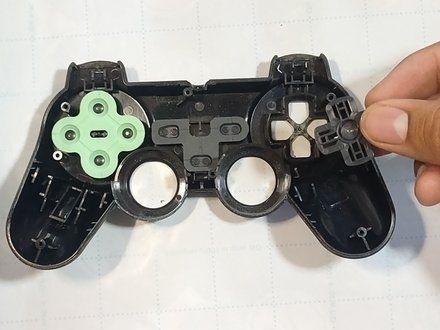

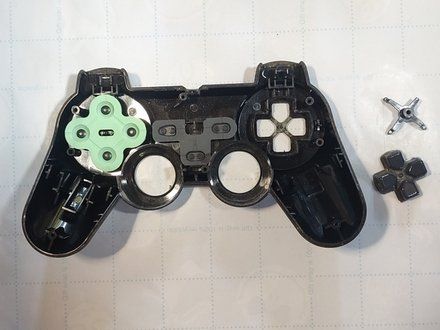

• Remove the broken D-pad from the controller carefully.

STEP 6::

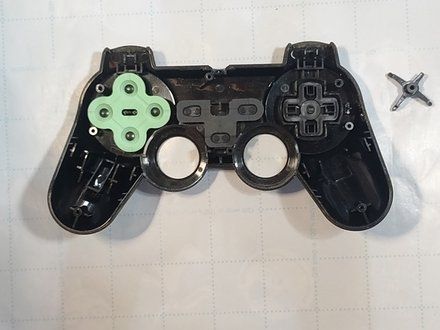

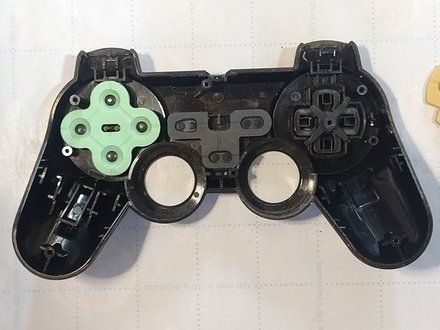

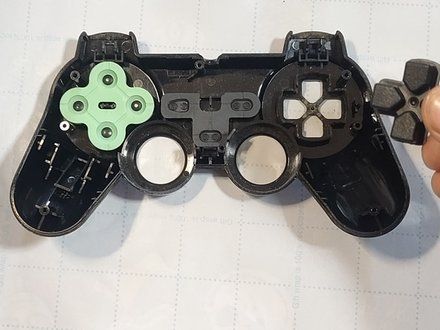

[step 6 photo] [step 6 photo] [step 6 photo]
• Put the replacement D-pad in the controller.
• NOTE: Make sure to get replacement parts designed for your controller as sizes may vary.
• Put the plastic bracket back on carefully.

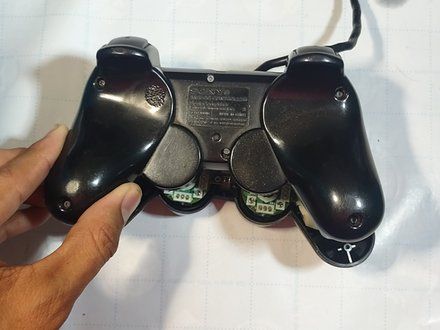

STEP 7::

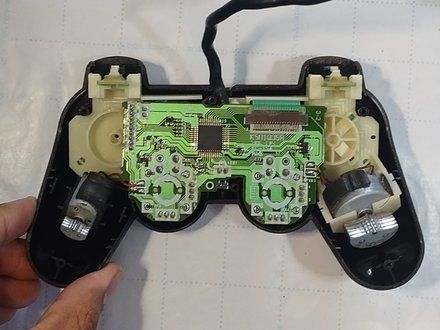

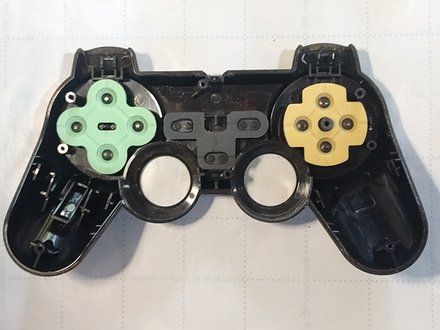

[step 7 photo] [step 7 photo] [step 7 photo]
• Replace the yellow rubber.
• Carefully insert the circuit board and reclip the triggers.
• REMINDER: Make sure to insert the analog sticks through the designed opening.
• Insert the back cover back in place.

STEP 8::

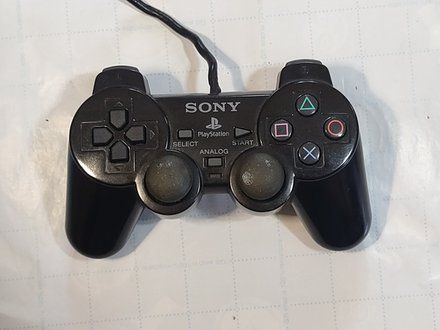

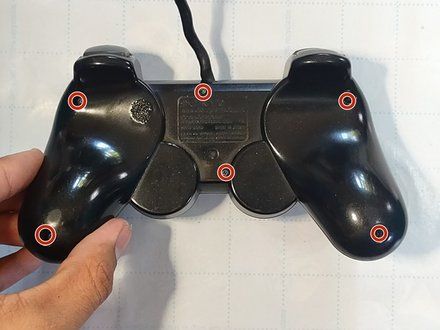

[step 8 photo] [step 8 photo] [step 8 photo]

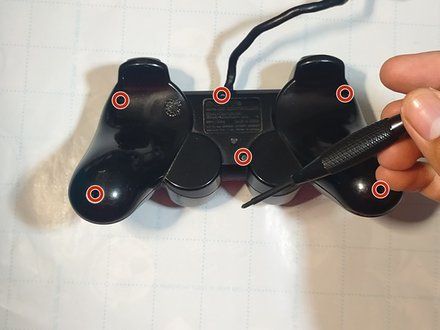

• Screw the back cover on again clockwise.
• Test D-pad to make sure its in working order.

CONCLUSION::
Enjoy your new D-pad.

CREDIT::
This guide is by Gilberto Rosales on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
