Nintendo NES Advantage Circuit Board Replacement
DeviceNintendo NES Advantage
DifficultyModerate
Time10 minutes
Steps7
This guide is by Alyssa Yustat on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If you need to repair any buttons on your Nintendo NES Advantage Model NES-026 game controller, you will need this guide to start the button repair process.

This guide is about removing the circuit board and includes the first steps in removing and fixing its buttons. You will need to follow this guide before you begin working on the button removal and repair guides.

Tools: Spudger; Phillips #0 Screwdriver; Tweezers; Flathead 3/32" or 2.5 mm Screwdriver


Step 1
[step 1 photo]

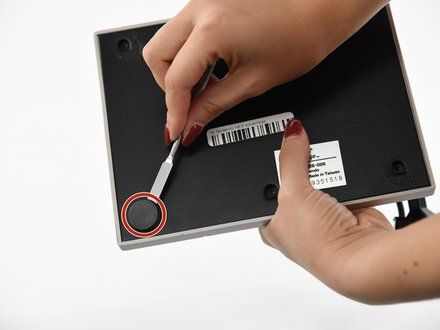

• Remove the four sticky pads from the bottom of the device.
• NOTE: If the pads are stuck, use a spudger to remove them.

Step 2
[step 2 photo] [step 2 photo]

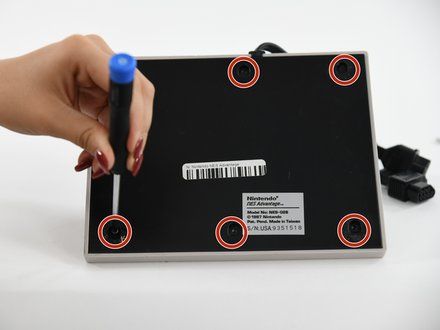

• Remove the six 8 mm screws from the bottom of the device with a Phillips #0 screwdriver.

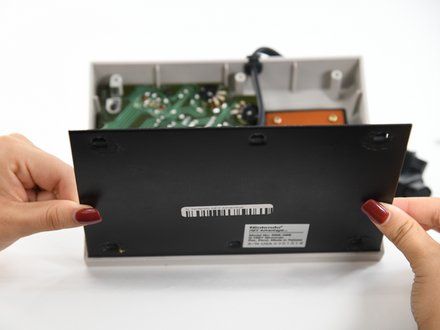

• Use your hands to pull the back panel away from the controller.

Step 3
[step 3 photo] [step 3 photo]

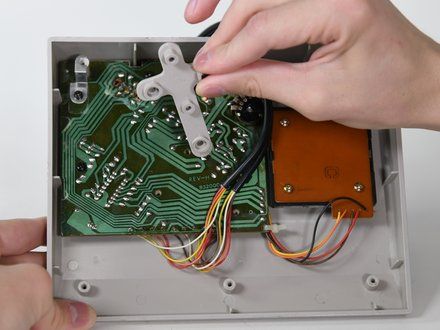

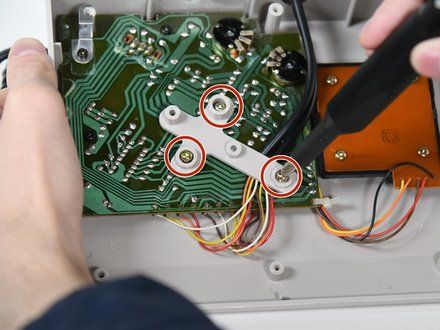

• Remove the three 14 mm screws from the gray cross with a Phillips #0 screwdriver.
• Lift the gray component away from the device.

Step 4
[step 4 photo]

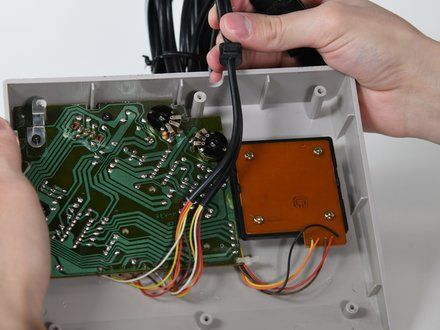

• Lift up the black wire and move it to the side.

Step 5
[step 5 photo] [step 5 photo] [step 5 photo]

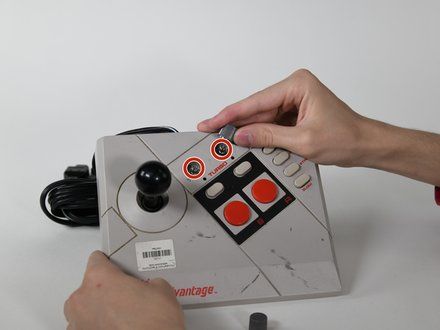

• Remove the two silver knobs on the front of the device.

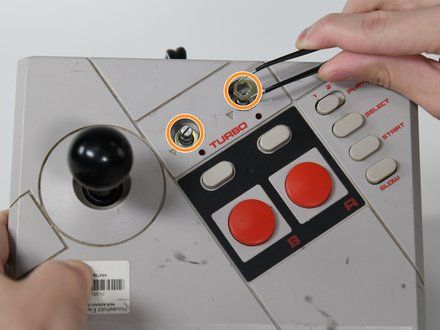

• Unscrew the two silver nuts using a flathead screwdriver.

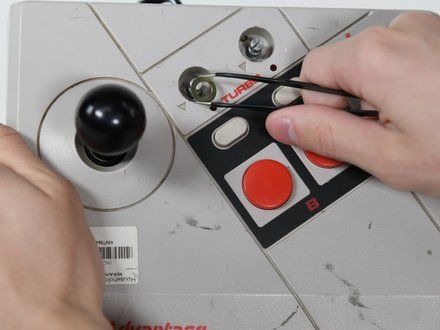

• Remove each silver nut and silver washer using a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers).

Step 6
[step 6 photo] [step 6 photo]

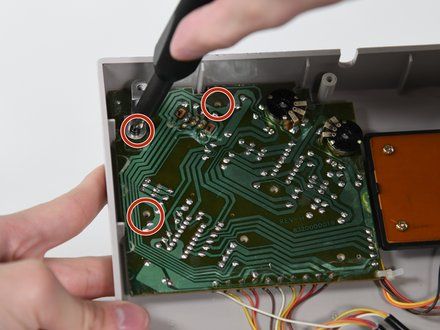

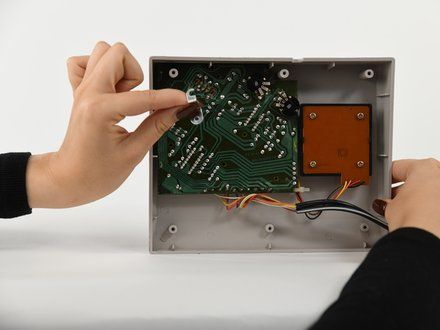

• Remove the remaining three 8 mm screws on the circuit board with a Phillips #0 screwdriver.
• Remove the silver bracket from the top of the circuit board.

Step 7
[step 7 photo]

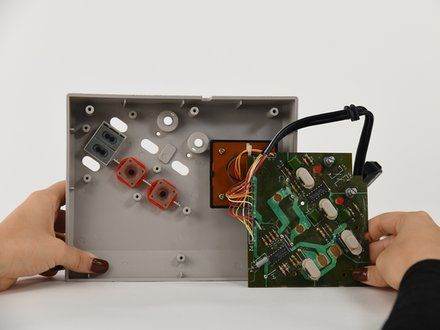

• Remove the circuit board from the controller.

Conclusion
To reassemble your device, follow these instructions in reverse order.
