HOW TO CLEAN NINTENDO ENTERTAINMENT
SYSTEM CARTRIDGES::
DeviceNintendo Entertainment System
DifficultyEasy
Time5 - 10 minutes
Steps3
This guide is by [deleted] on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Hello! In this guide I will show you how to clean NES cartridge contacts. Let's get started!

Tools: Minnow Driver Kit; Tamper Resistant TORX Plus TR Bit

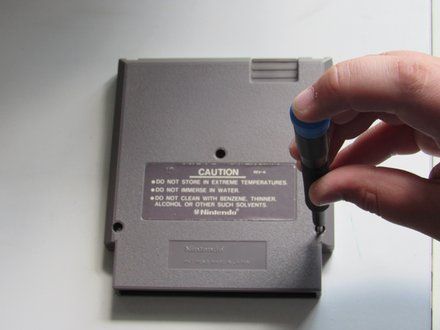

STEP 1 :: TAKE APART THE CARTRIDGE::
[step 1 photo]
• Remove the three screws on the bottom of the cartridge. While most of the time the screws are security screws, sometimes there are Phillips/Flathead screws.

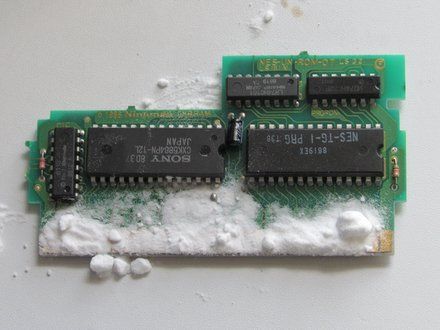

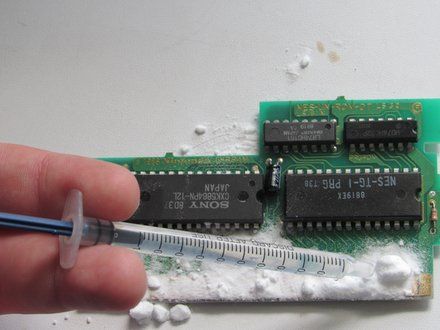

STEP 2 :: MIX THE ABRASIVE PASTE::
[step 2 photo] [step 2 photo]
• Simply put about 2 tablespoons of baking soda on the cartridge contacts. Then put enough water on the baking soda until it is the consistency of a thick paste.

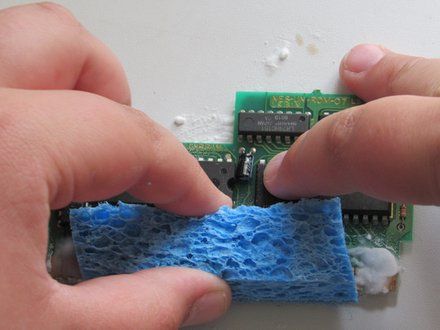

STEP 3 :: SCRUB THE CONTACTS::
[step 3 photo]
• Take something like a toothbrush or the scraping part of a sponge and scrub the cartridge contacts.
• After scrubbing for about 4-5 minutes, rinse the cartridge board off in the sink. Let it dry for about 4 hours after pouring alcohol under the chips.

CONCLUSION::
And with that your cartridge should be working properly!

CREDIT::
This guide is by [deleted] on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
