Game Boy Pocket Back Cover Replacement

Device	Game Boy Pocket
Difficulty	Moderate
Time	6 - 9 minutes
Steps	2

This guide is by Judy Fisher on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Removing the back cover is an essential step that must be carried out before removing or replacing other parts.

Tools: Y1 Tri-point Screwdriver

Step 1

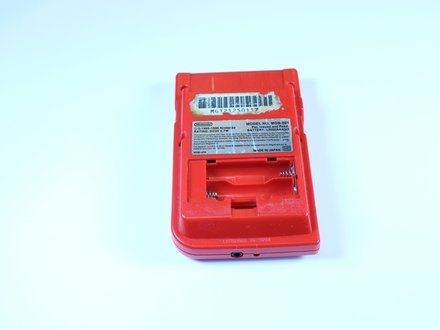

• Place the Game Boy Pocket face-down on a clean, flat surface.

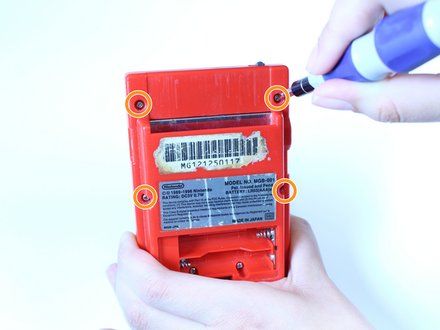

• Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the four external screws.

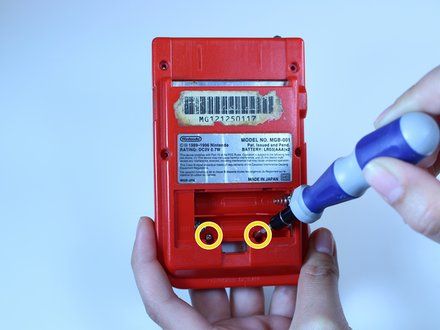

• Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the two screws inside the battery compartment.

Step 2

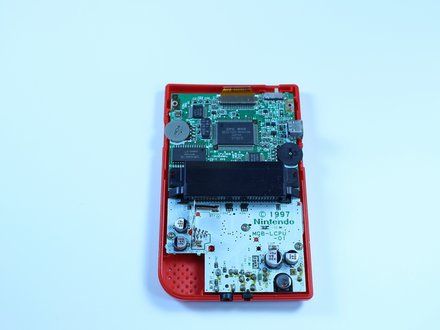

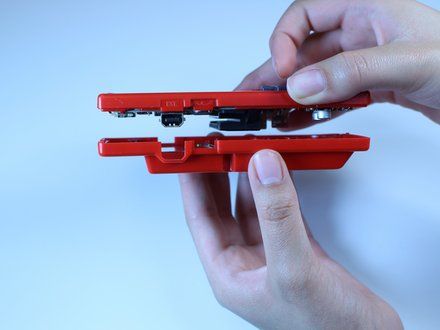

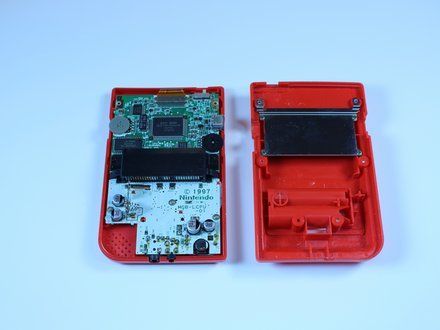

• Place your hands on the front and back covers of the Game Boy Pocket, and carefully separate the device.
• NOTE: Set the back cover aside. You will need it to reassemble the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
