NEC PC-FX Teardown

Device	NEC PC-FX
Difficulty	Moderate
Time	30 minutes
Steps	13

This guide is by Paul Prantilla on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A 32-bit home video game console developed by NEC and Hudson Soft. It was released in 1994 and discontinued in February 1998. It was intended as the successor to the TurboGrafx-16. Unlike its predecessor, the PC-FX was only released in Japan. (Source: Wikipedia)

Step 1 :: Remove Side Panels

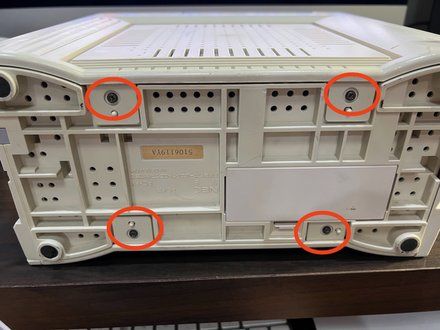

• Remove the four T10 screws located underneath the console. These hold the left and right side panels in place.
• NOTE: After removing these screws, you should easily be able to slide off the left and right panels.

Step 2 :: Remove the Front Plate

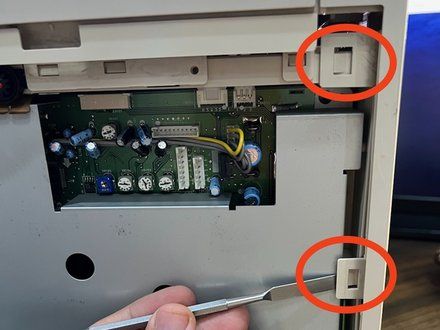

• Remove the front panel attached by three clips on each side. The top two clips on the left are encircled in the picture.

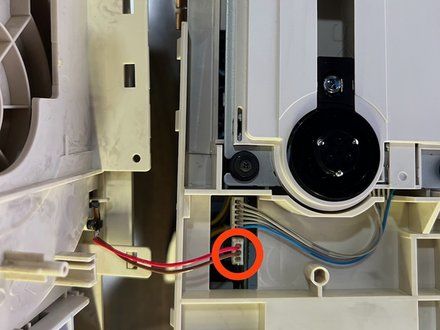

Step 3 :: Remove the Top Panel

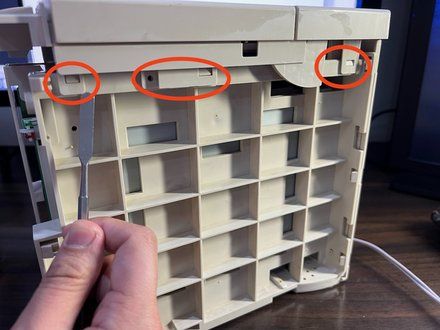

• With the front panel out, lift the top panel that is attached by three clips on each side. Be aware that the top panel is attached to the daughterboard via the lid sensor connector (second picture), so do not pull it away immediately.
• Remove the lid sensor connector in order to fully free up the top panel.

Step 4 :: Remove the Rear Panel

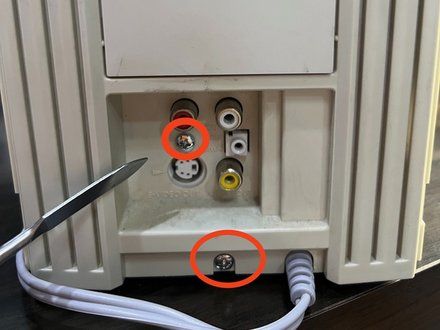

• Now remove the rear panel. First, unscrew the two Philips screws in the rear.
• REMINDER: Remember that when reassembling the unit, you will need to affix the panels in the exact reverse order (Rear, Top, then Front).

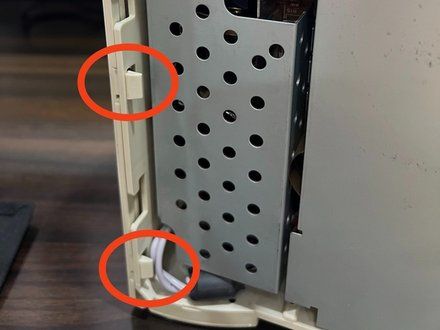

• NOTE: With the rear screws removed, remove the rear panel attached by three clips on each side. The second picture shows the two lower clips on the left side (viewing from the front).

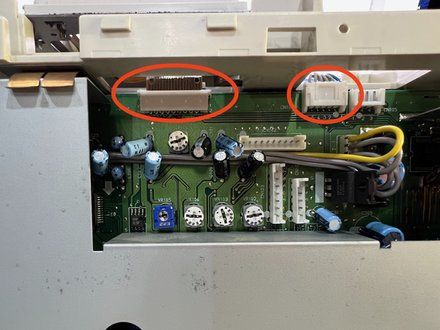

Step 5 :: Remove the CD Drive

• Now turn your attention to the CD drive. Lift up the tabs holding the drive ribbon connector at the left and the power connector at the right (if you haven't already).

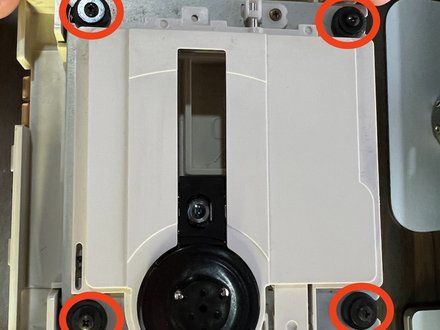

• Unscrew the four small Philips screws on each post holding up the drive (encircled in the second pictur). You may now lift up the drive and remove the springs on each post underneath.
• There will be a transparent plastic sheet holding the ribbon connector in place. I strongly suggest totally removing this, as this will make plugging back the drive much easier.

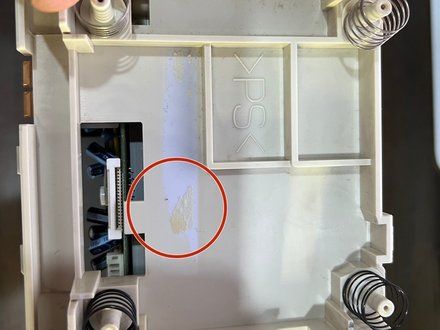

• The third picture shows the remaining adhesive after from removing the clear plastic sheet.

Step 6 :: Remove the Power and Daughter Board Screws

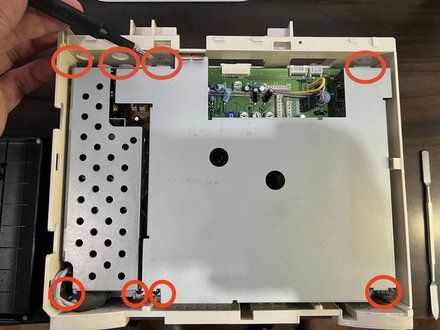

• Remove the 8 philip screws encircled. For the lower leftmost screw, you will need to move the power cable out of the way. The lower rightmost screw will also be holding in a ground cable.
• Remove the daughterboard shielding (the big one on the right of the Power Board) after.

Step 7 :: Remove the Power Board

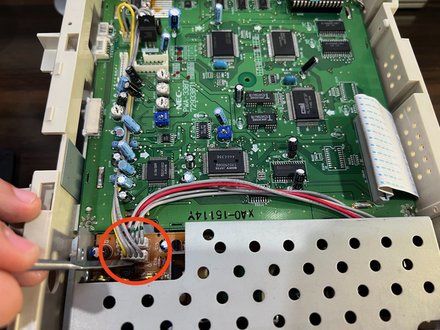

• Unplug the 4-pin power connector from the daughterboard to the powerboard (with yellow wire). Do the same with the 5-pin power connector from the motherboard (with red wire).

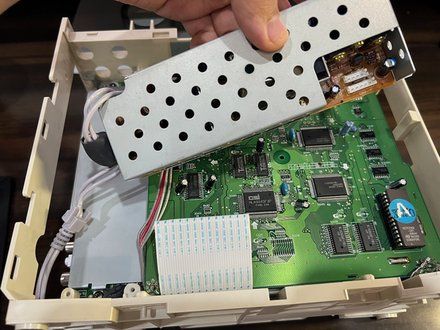

• After this you may remove the power board. You will have to pull the whole power cable from the inside as shown in the second picture.

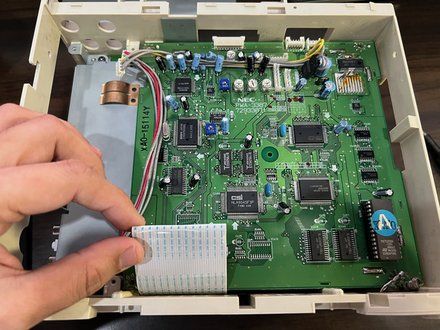

Step 8 :: Remove the Daughter Board

• Remove the main ribbon cable from the daughterboard.
• The daughterboard may then be removed since nothing else will be affixing it to the unit.

Step 9 :: Remove the Mother Board Screws

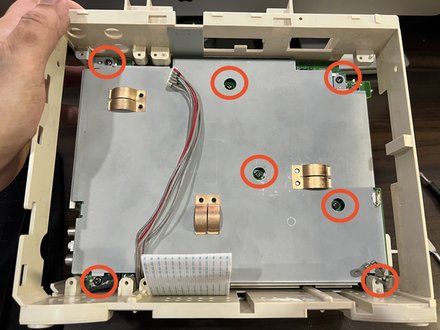

• Remove the four corner screws, and the three long screws in the middle of the motherboard.

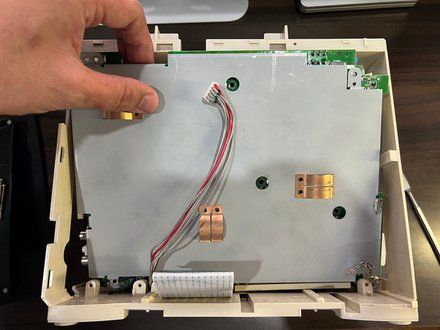

Step 10 :: Remove the Motherboard

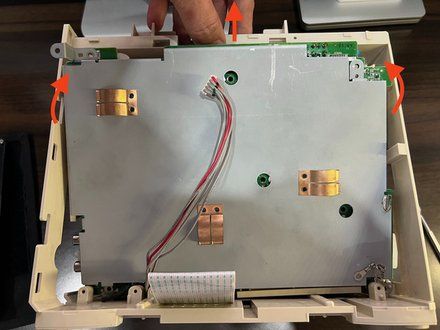

• The trickiest part - remove the main motherboard. To do this, you will have to flex the top part of the plastic frame up while lifting the upper part of the motherboard towards you.
• This may require some fiddling, so check from time to time if there is no frame plastic blocking the top part of the motherboard when you lift it up. If you have trouble, you almost certainly just need to flex up the top area of the plastic frame a bit more.

Step 11 :: Remove the Expansion Port Bays

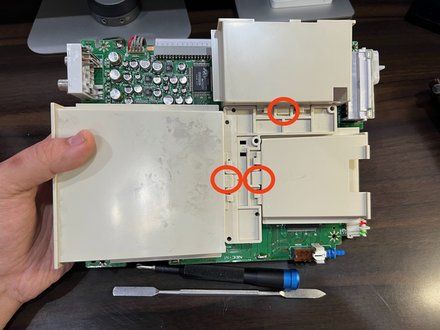

• With the motherboard liberated, simple unsnap the three encircled clips of the expansion port bays. You are now done with the teardown at this point.

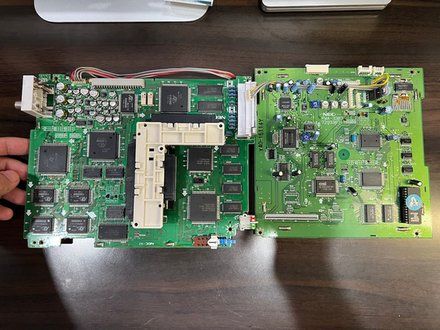

Step 12 :: Completed Teardown

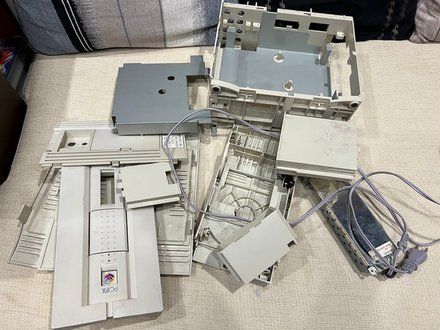

• NOTE: This completes the teardown. Reassembly will require reversing the teardown procedure, but please see my notes on the next step on some important reassembly tips to keep in mind.

Step 13 :: Reassembly Tips

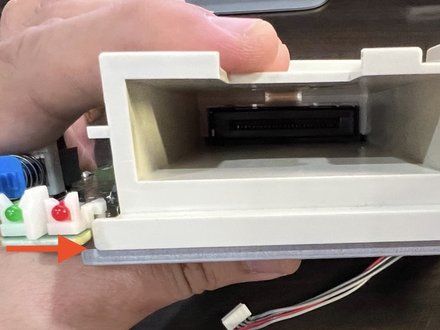

• When reassembling any of the three expansion port bays, make sure that the lower "lip" fits BETWEEN the PCB and shielding underneath. Failure to do so may not allow the Rear, Top and Front outer panels to close properly.
• When putting in the motherboard back, insert it the opposite way you took it out. Slide in the PCB bottom side first, then flex up the top frame area while pushing down the topside of the PCB.
• After reinserting the motherboard, check to make sure that all three three expansion port pieces are snapped correctly into place within the bare PC-FX plastic frame.
• Again, remember that when reassembling the unit, you will need to affix the panels in the exact reverse order you removed them in this guide. (Rear, Top, then Front). This is because they are interlocking.
