NEXTSTATION TEARDOWN::
DeviceNeXTStation
DifficultyModerate
TimeNo estimate
Steps13
This guide is by Chris Green on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

NeXT Computer was founded in October of 1985 when Steve Jobs was forced out of Apple by John Scully. He started NeXT as a high-end computer company targeted at the University/Scientist/Computing Industry. NeXT only ever released , the NeXTStation, and The NeXTCube, in different variations. NeXT computers were high-end workstation computers, and only a few thousand were ever sold. The NeXTStation featured a, though the Turbo NeXTStation featured a68040. There were color and non-color variations of the NeXTStation. The world's first web server was created by Tim Berners-Lee, at CERN on a NeXTCube. NeXT computers were used to make games like Doom, and Wolfenstein. This is my&W NeXTStation. Mac OS X Is based off of NeXTStep, the NeXT OS.

Tools: Phillips #00 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

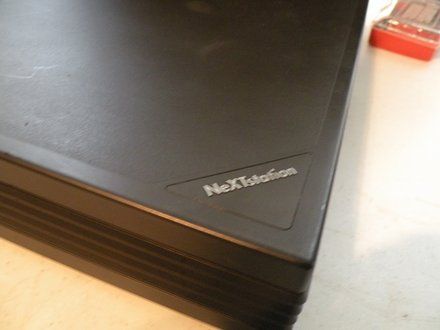

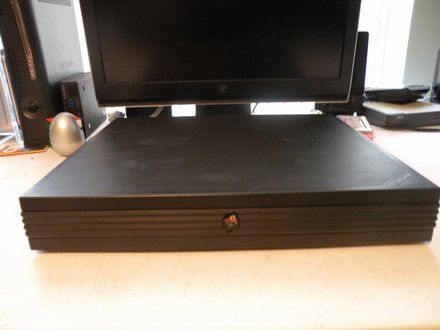

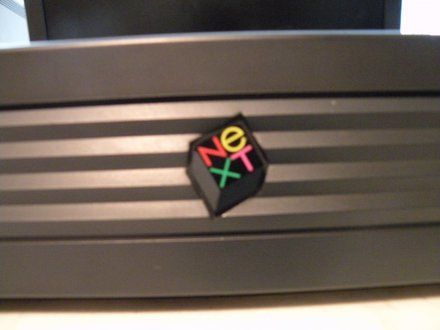

• The NeXTStation, this is a great addition to any computer collection.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

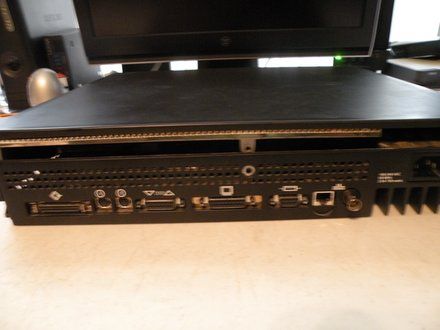

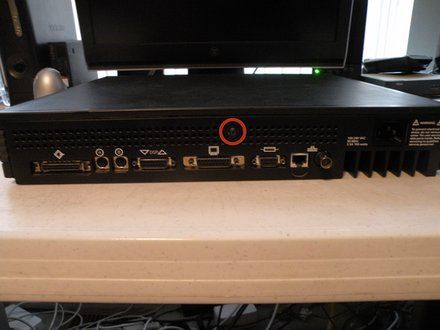

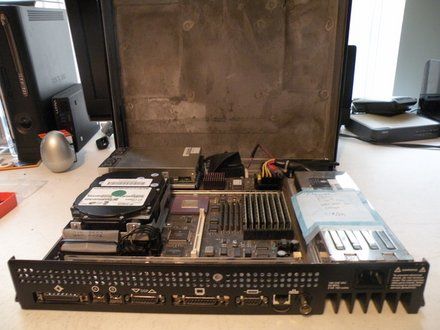

• Turn the NeXTStation around, and remove this screw:
• Then, lift the top cover of the computer. This will reveal the guts.
• The ports from left to right: SCSI2, Keyboard & Mouse, DSP Port, DB-19(MegaPixel Display), DB-9(Serial), RJ-45(Ethernet), Coaxial (10b2 Ethernet), Power
• I find notes in everything!

STEP 3::
[step 3 photo] [step 3 photo]

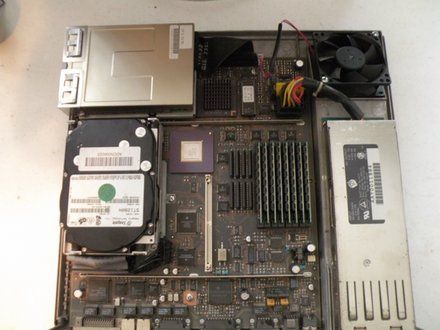

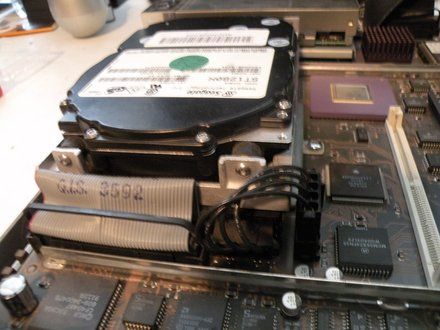

• Removing the hard drive:
• The NeXTStation uses a 50-Pin SCSI Hard Drive up to 4GB.
• Remove all of the cables from the logic board.

STEP 4::
[step 4 photo] [step 4 photo] [step 4 photo]

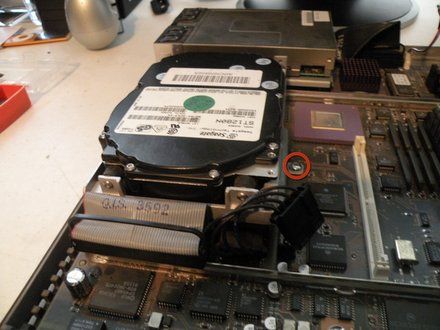

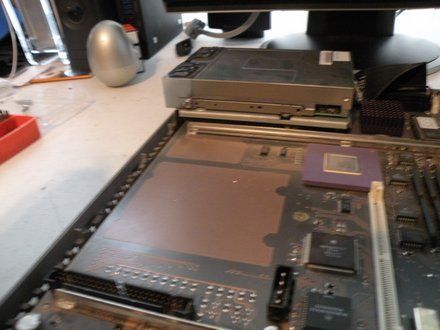

• Then remove this screw.

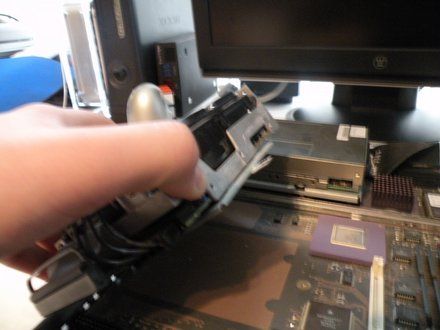

• Once the screw is removed, pivot the drive up on a 45 Degree angle, then slide it out.

STEP 5::
[step 5 photo]

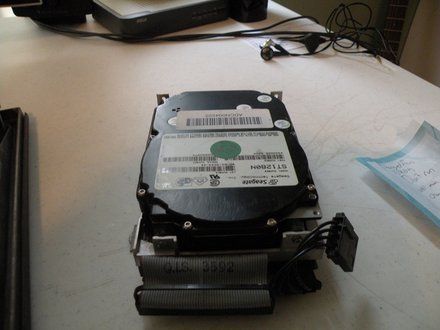

• The Hard Drive & Caddy

STEP 6::
[step 6 photo] [step 6 photo] [step 6 photo]

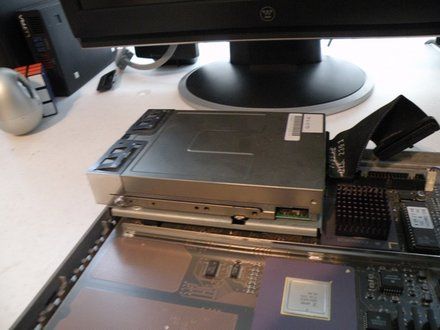

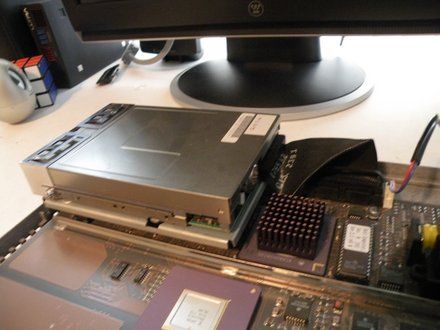

• Removing the floppy disk drive:
• The NeXTStation uses a non-standard 2.88MB 3.5" floppy drive, though it uses the standard floppy connector.
• Remove the floppy cable.

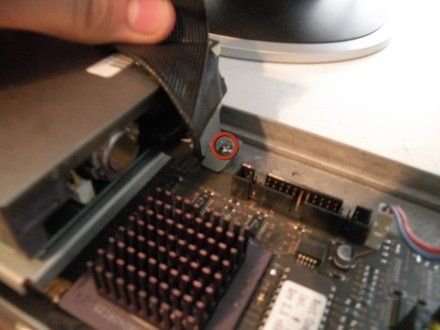

• Then, remove this screw.

STEP 7::
[step 7 photo] [step 7 photo] [step 7 photo]

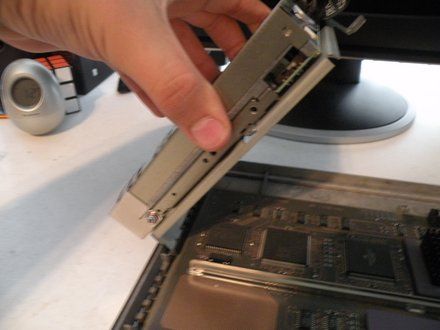

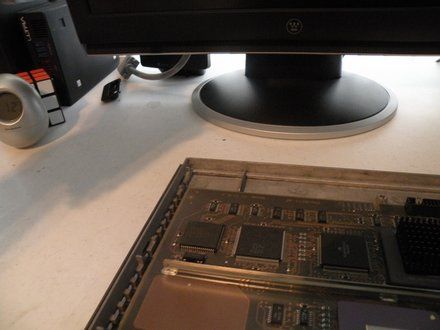

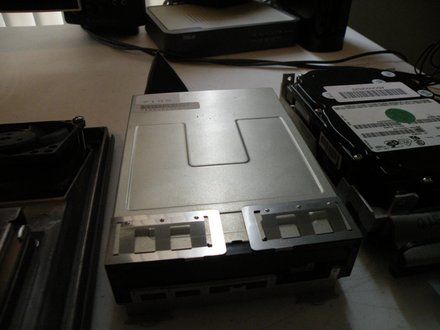

• Then, just like the hard drive, pivot the drive up 45 degrees, and pull it out.

STEP 8::
[step 8 photo] [step 8 photo] [step 8 photo]
• Removing the fan:

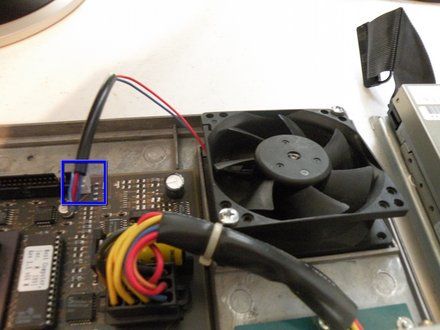

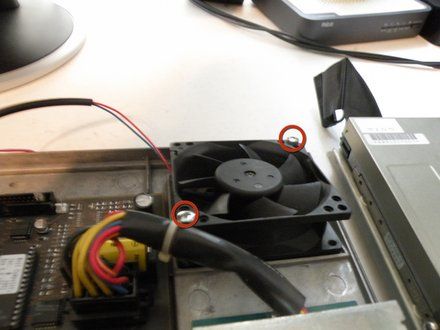

• Remove this connector.
• Remove these screws.

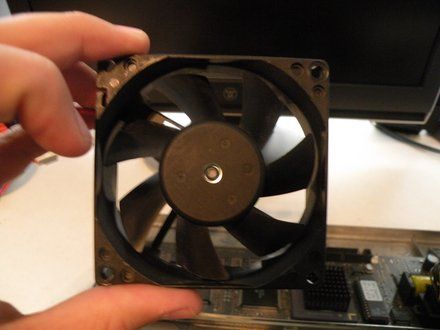

• Remove the fan.

STEP 9::
[step 9 photo] [step 9 photo] [step 9 photo]

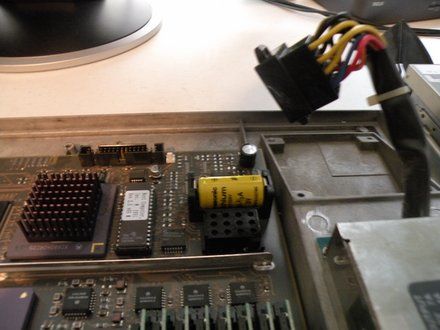

• Removing the logic board:

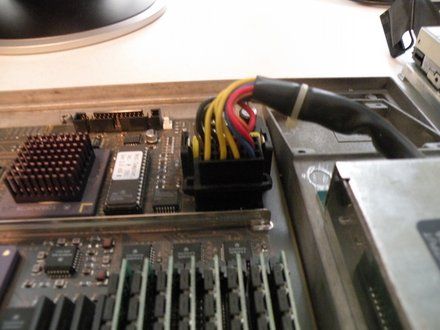

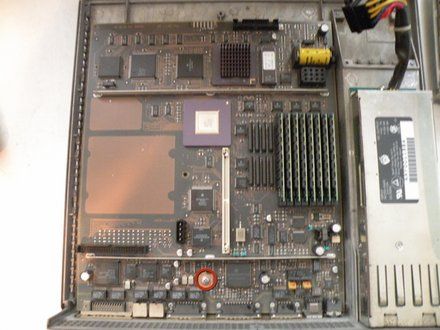

• Remove the power supply connector. Just lift it straight up, and it should come free.
• Remove this screw.

STEP 10::
[step 10 photo] [step 10 photo] [step 10 photo]

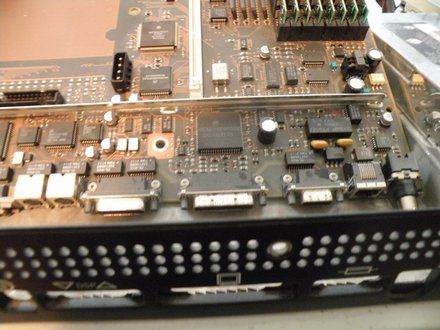

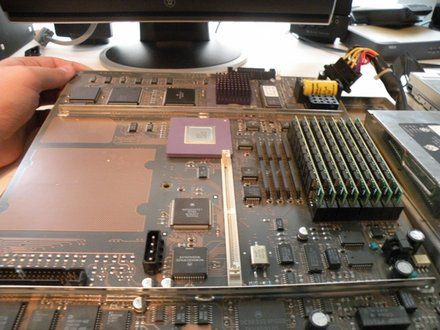

• Lift the end of the logic board(away from the ports), and slide it away from the ports.
• Now, set the board aside.

STEP 11::
[step 11 photo] [step 11 photo] [step 11 photo]

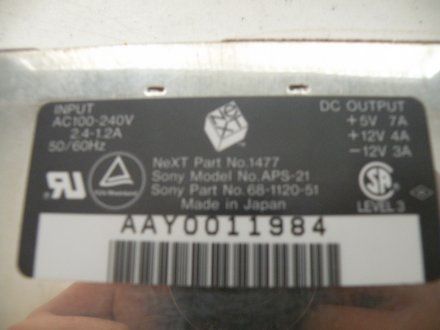

• Power Supply:

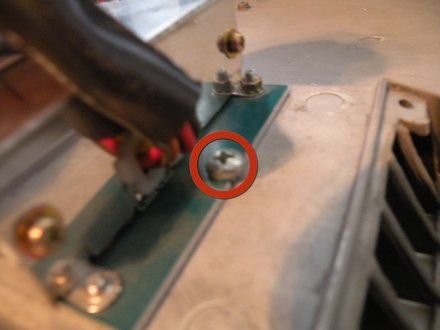

• Remove this screw.

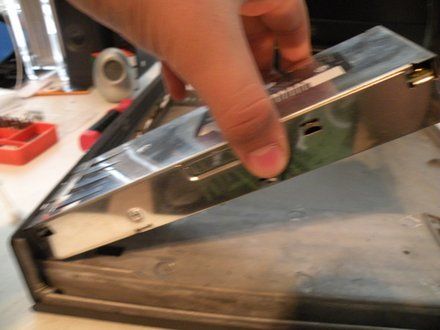

• Lift the power supply up, and out.

STEP 12::
[step 12 photo]

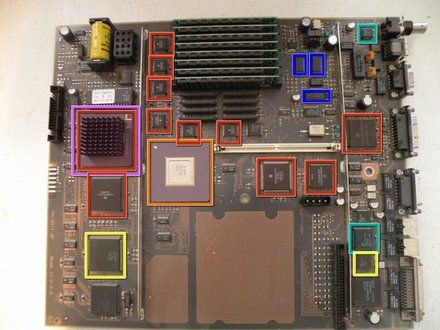

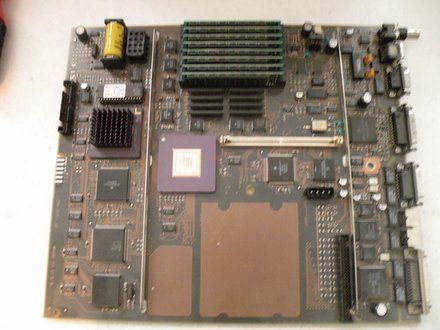

• The Logic Board Overview:
• The Board has a 25Mhz Motorola 68040 CPU, This board features a ton of chips for something made nearly 20 years ago.
• The CPU: Motorola XC68040RC25
• The Co-Procesor: MB610313
• Motorola Chips
• Intel Chips
• AMD Chips (Intel and AMD In the same computer?)
• Fujitsu Chips

STEP 13::
[step 13 photo] [step 13 photo] [step 13 photo]

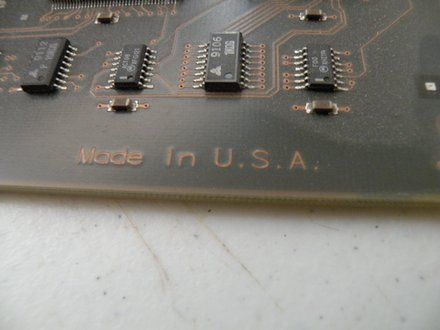

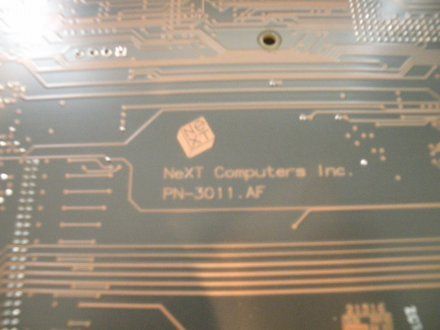

• Made in the USA, you don't see this anymore.

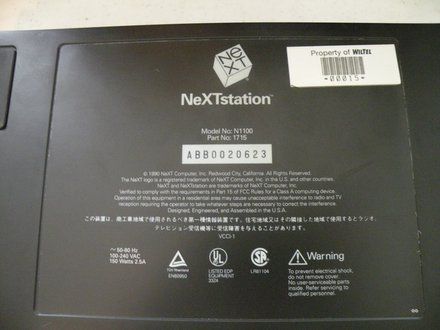

• The Serial #
• Looks like my NeXTStation came from WilTel.
• It is model # N1100
