| | Nintendo WaveBird Wireless Controller Motherboard Replacement |
| Device | Nintendo WaveBird Wireless Controller |
| Difficulty | Moderate |
| Time | 15 - 20 minutes |
| Steps | 7 |
This guide is by Travis Taylor on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
This guide will show you the steps on installing the motherboard. This will be helpful if the controller won't turn on (https://www.ifixit.com/Wiki/Nintendo_WaveBird_Wireless_Controller_Troubleshooting#Section_The_controller_won_t_turn_on) or if it turns on and doesn't work. (https://www.ifixit.com/Wiki/Nintendo_WaveBird_Wireless_Controller_Troubleshooting#Section_The_controller_turns_on_but_doesn_t_work)
Tools: Y1 Tri-point Screwdriver; Tweezers |
|
| Step 1 |

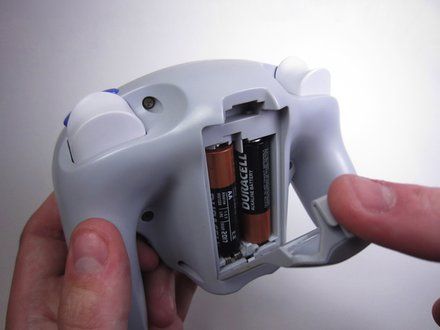

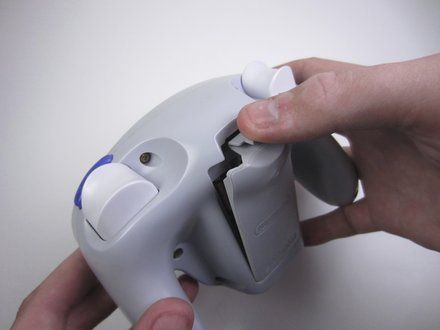

![[step 1 photo]](14289/step01-2.jpg) Pull down on the battery cover release lever and pull back to remove the cover.
|
|

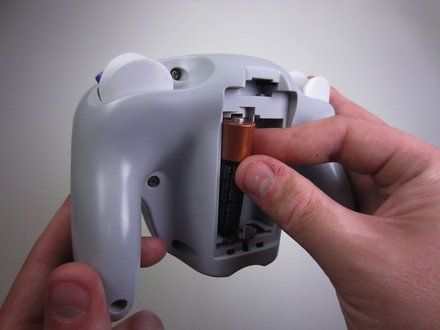

| Step 2 | ![[step 2 photo]](14289/step02-1.jpg) Remove both batteries from the device.
|
|
| Step 3 |

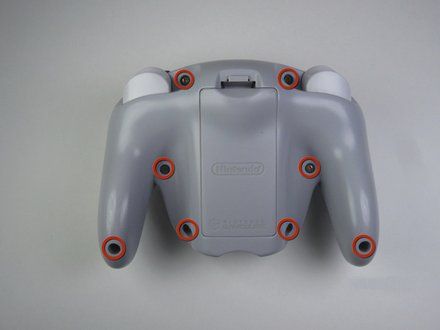

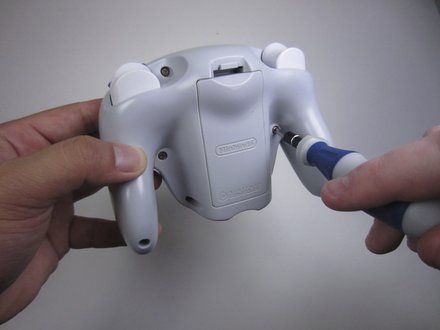

![[step 3 photo]](14289/step03-2.jpg) Remove the eight 9 mm screws from the back panel using the Tri-point Y1 screwdriver. REMINDER: During reassembly, firmly hold the panels of the controller together while replacing the screws so the panels do not separate.
|
|
| Step 4 |

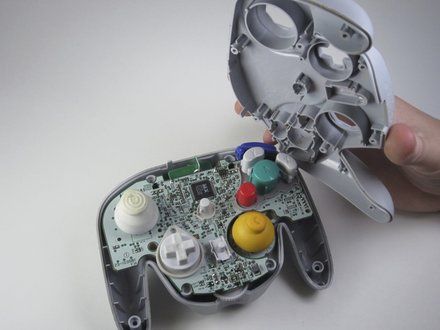

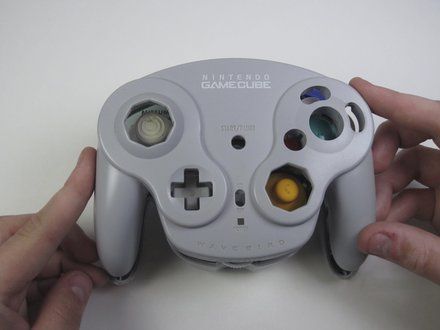

![[step 4 photo]](14289/step04-2.jpg) Carefully turn over the controller and place it on a flat surface. Slowly separate the top panel from the bottom panel. NOTE: The buttons are loose and may fall off the motherboard. Once separated, set aside the top panel. REMINDER: During reassembly, make sure the front panel lines up with the buttons so they slide back into place.
|
|
| Step 5 |

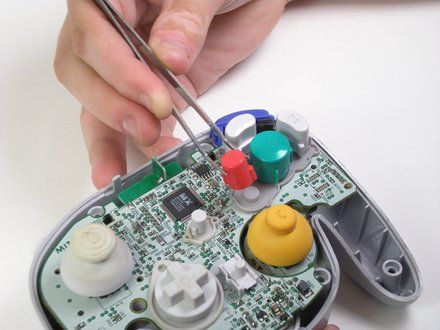

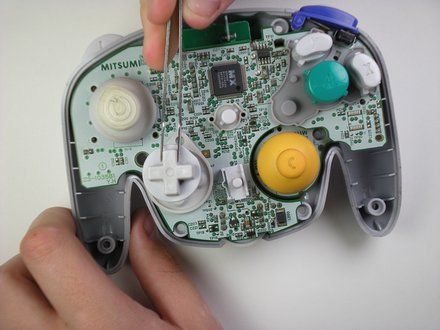

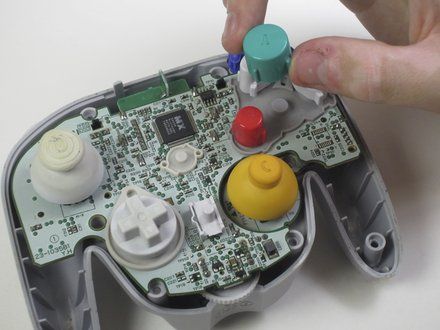

![[step 5 photo]](14289/step05-3.jpg) Use tweezers (https://www.ifixit.com/en-ca/products/tweezers) to remove the buttons. NOTE: It may be easier to remove the A button off of the pad by lifting it with your fingers. REMINDER: During reassembly, make sure all buttons are in their respective sockets so they match up with the front panel.
|
|

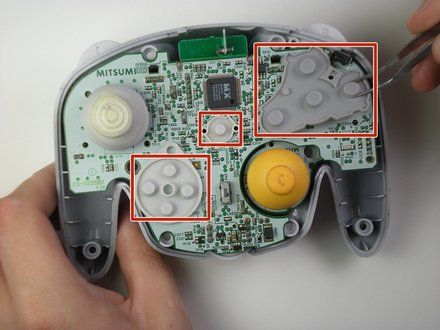

| Step 6 | ![[step 6 photo]](14289/step06-1.jpg) Using tweezers (https://www.ifixit.com/en-ca/products/tweezers) remove the three grey button pads from the motherboard.
|
|

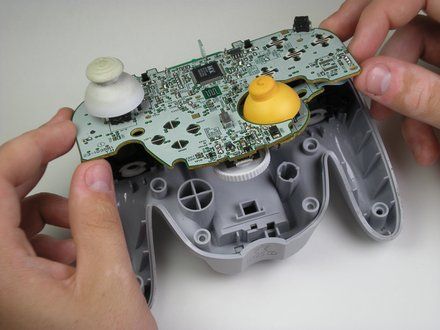

| Step 7 | ![[step 7 photo]](14289/step07-1.jpg) With your fingers gently grip the motherboard on both sides and lift it away from the back panel. NOTE: To put the motherboard back into place, align the two metal clips under the motherboard with the slots in the back panel. The motherboard should fall into place.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
