NES Housing Removal
DeviceNintendo Entertainment System
DifficultyVery easy
Time1 - 7 minutes
Steps1
This guide is by TimedIn on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

To get inside the console, both housing parts need to be taken apart.

Tools: Kreuzschlitzschraubendreher PH 2


Step 1 :: Removing housing
[step 1 photo] [step 1 photo]

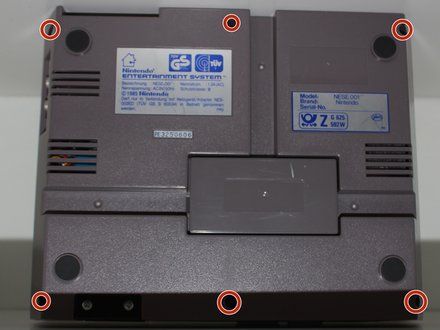

• Remove the six 13.50mm PH2 screws from the base plate.
    • NOTE: The screws are countersunk 40mm into the base plate.

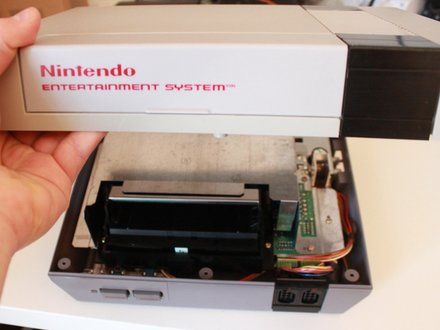

• Now take off the upper part of the housing.

Conclusion
To reassemble your device, follow these instructions in reverse order.

Credit
This guide is by TimedIn on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
