Nintendo GameCube Fan replacement for cleaning

Device	Nintendo GameCube
Difficulty	Moderate
Time	7 minutes
Steps	4

This guide is by dcarlin on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide shows how to properly remove and clean the fan. This will help prevent your GameCube from overheating.

Tools: Nintendo GameCube Bit Tool; Phillips #1 Screwdriver; Phillips #2 Screwdriver

Step 1

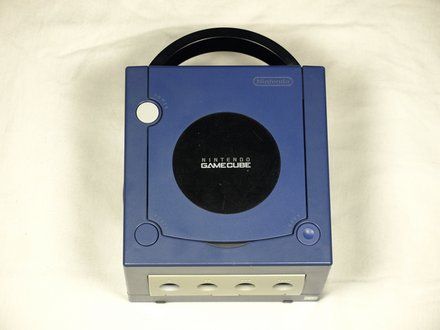

• Turn over the Gamecube so that the bottom side is facing up.

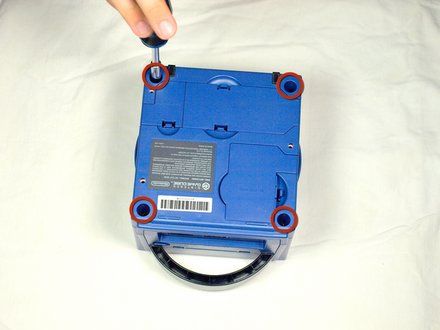

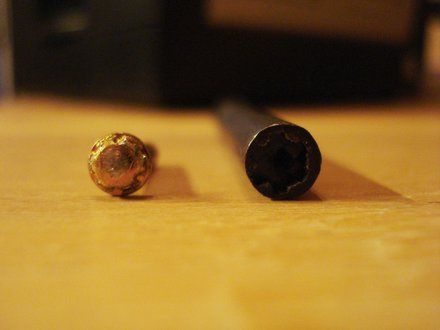

• Use the 4.5 mm Gamebit screwdriver to remove all four screws.

Step 2

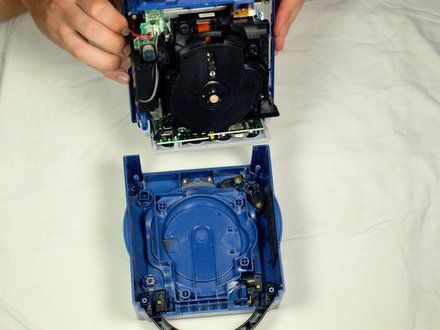

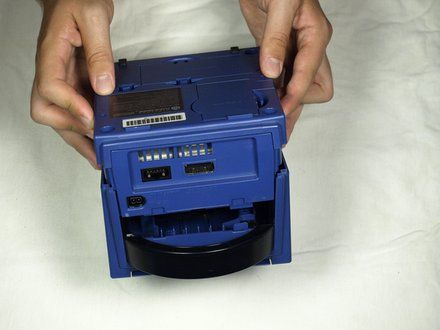

• With the bottom side of the GameCube facing upward and the screws removed, carefully pull the outer shell of the unit away from the top half.

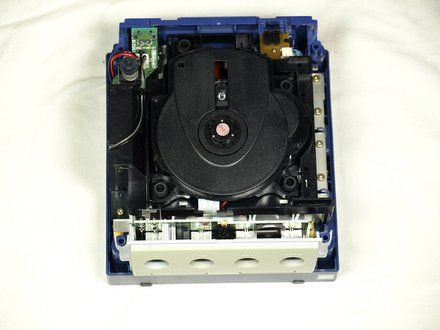

• Move the GameCube so that the inside is facing upwards.

Step 3

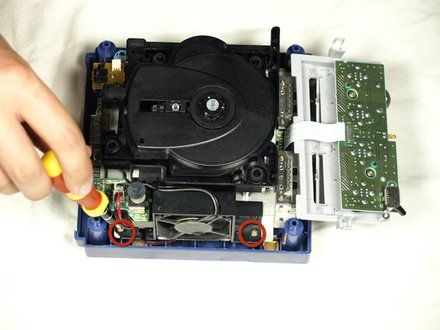

• Using a Phillips #2 screwdriver, remove the two screws (circled in red) attaching the fan assembly to the unit.

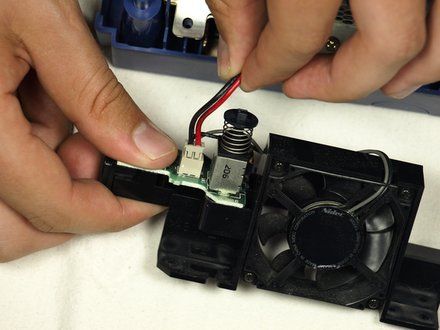

• Carefully disconnect the fan connector from the socket, as depicted in the second picture.
• NOTE: The controller connector panel can be gently pulled out of the main unit and laid down, as depicted. This is not strictly required, but may provide more maneuverability inside the case.
• CAUTION: Make sure to not pull out the wires while removing the fan. Doing so may damage the connector wire or the PCB.

Step 4

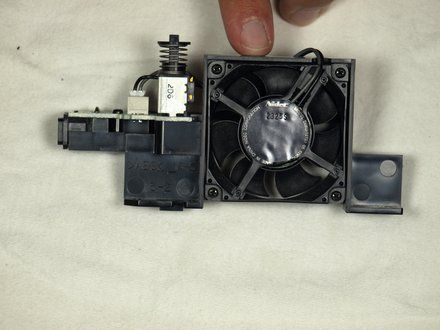

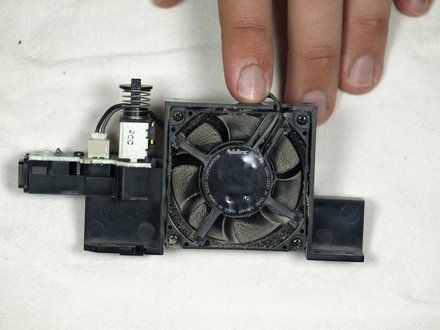

• Once the fan is removed, use compressed air to clean the dust off of the fan blades.
• NOTE: It is highly recommended that you use a toothpick to prevent the fan blades from moving while cleaning. This will prevent accidental damage to the fans motor.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Credit
