Nintendo GameCube Top Case Replacement

Device	Nintendo GameCube
Difficulty	Very easy
Time	1 - 2 minutes
Steps	2

This guide is by dcarlin on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Removing the top case will allow you access to the GameCube's internal parts.

Tools: Gamebit 4.5mm

Step 1

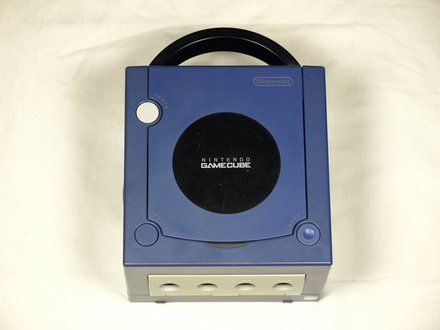

• Turn over the Gamecube so that the bottom side is facing up.

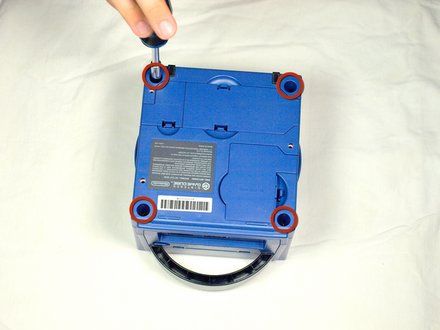

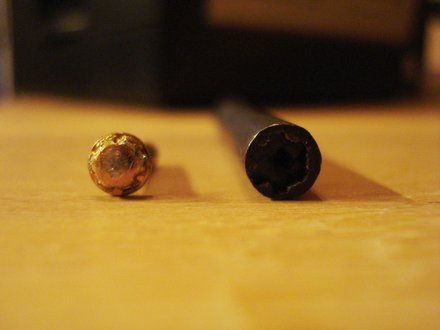

• Use the 4.5 mm Gamebit screwdriver to remove all four screws.

Step 2

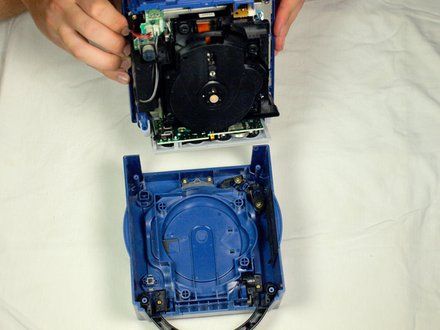

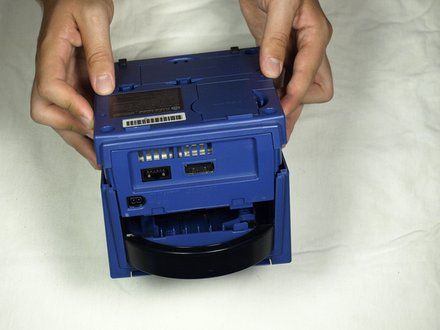

• With the bottom side of the GameCube facing upward and the screws removed, carefully pull the outer shell of the unit away from the top half.

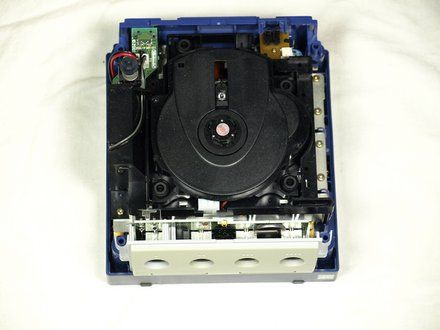

• Move the GameCube so that the inside is facing upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
