PlayStation 2 Optical Disc Drive Laser Assembly Replacement

Device	PlayStation 2
Difficulty	Moderate
Time	20 minutes
Steps	7

This guide is by jwyoung on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Replace the laser assembly in your optical disc drive. Replacing the laser requires you to have or purchase a new laser.

Tools: Metal Spudger; Phillips #00 Screwdriver; Phillips #1 Screwdriver

Step 1

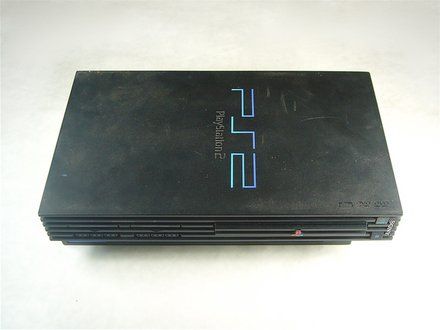

• REMINDER: Flip the PlayStation 2 over so it lays with the bottom of the device facing upwards.

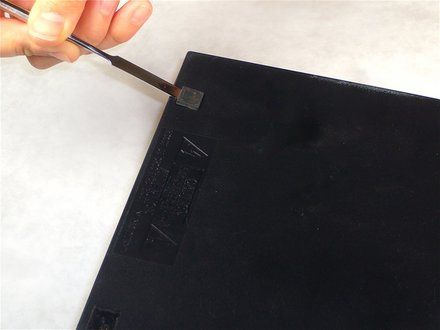

• Use the flat edge of a metal spudger to pry the eight flat screw covers out.

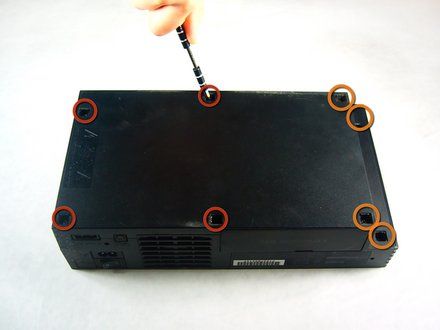

• Remove the following eight screws securing the top cover to the bottom case:
• Four 55.4 mm Philips screws
• Four 18.0 mm Phillips screws

Step 2

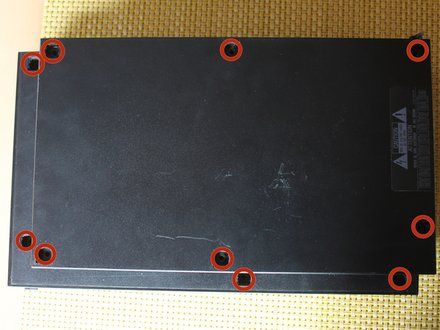

• Some models have a different number of screws and feet. Remove all the feet and screws in the bottom of the case.
• The 10 screw model has 6 screws in the bottom-most portion and 4 in the upper tray.

Step 3

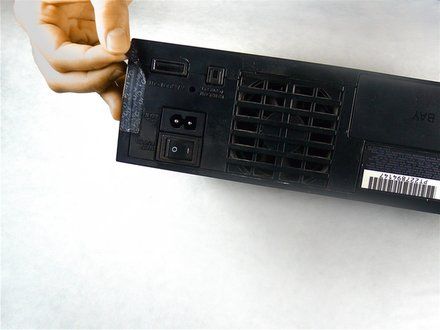

• Peel the warranty sticker (located next to the main power switch) straight away from the case.
• NOTE: To avoid activating the VOID that may come up, heat it carefully to remove and replace it clean

Step 4

• REMINDER: Flip the PlayStation 2 back to its original upside position.

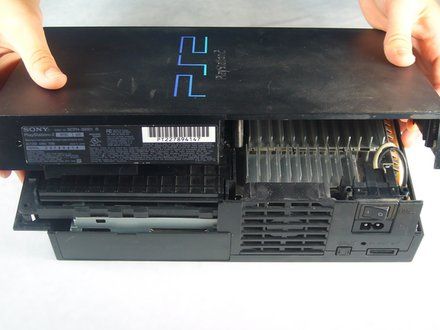

• Lift the top cover off the bottom case.
• NOTE: To facilitate the removal, it is recommended to pry open the half closer to the power switch first while rocking the top cover towards the front of the bottom case.

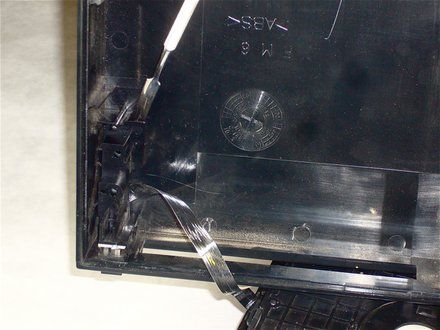

• Carefully remove the power cord that attaches the top and bottom halves by disconnecting the power cord assembly from the top case.

Step 5

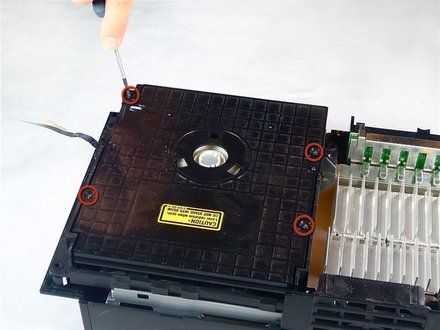

• Remove the four 6.4 mm Phillips screws securing the top lid of the optical disc drive.

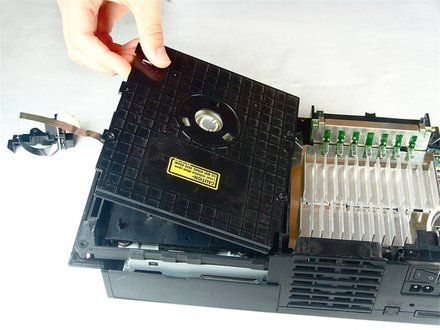

• Lift and remove the lid from the optical disc drive.

Step 6

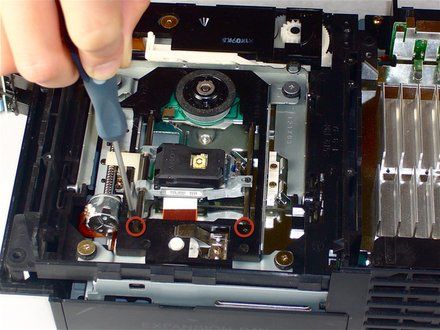

• Remove the two 7.2 mm Phillips black screws securing the metal silver rails that hold the laser in place.

Step 7

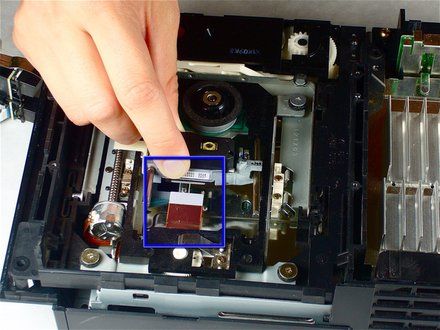

• Use your fingernail to flip up the retaining flap on the optical disc drive laser ribbon cable.
• CAUTION: Be sure you are prying up on the movable retaining flap, not the socket itself.
• Pull the optical disc drive laser ribbon cable straight away and out of its socket.
• REMINDER: If you maneuver the unscrewed ends of the metal rails upwards, the laser will slide out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
