| | Sega Genesis 6-button controller disassembly |
| Device | Sega Genesis II |
| Difficulty | Easy |
| Time | 10 minutes |
| Steps | 5 |
This guide is by Thierry Benitez on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
This guide will help you disassemble your Sega Genesis II 6-button controller. You will need a Phillips #00 screwdriver to complete this guide.
This specific model was released in 1992/93, at the same time as the Sega Genesis II. However, it is also compatible with the Sega Genesis I.
Tools: Phillips #00 Screwdriver; Spudger |
|

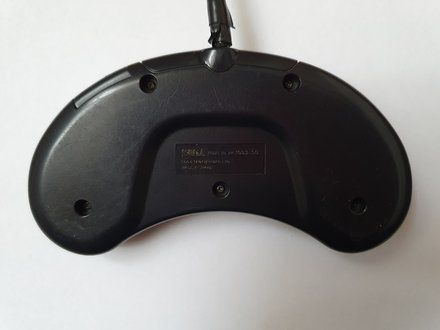

| Step 1 :: Disassembling the handle | ![[step 1 photo]](132517/step01-1.jpg) Flip the controller upside down. Using a Phillips #00 screwdriver, remove the five screws holding the controller back cover in place.
|
|

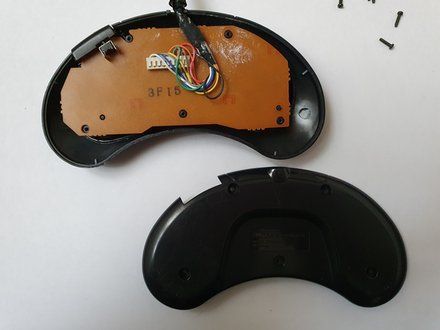

| Step 2 | ![[step 2 photo]](132517/step02-1.jpg) Then remove the back cover of the controller, which gives you access to the motherboard of the controller. NOTE: Carefully put back the 5 screws from step 1 as well as the back cover of the controller.
|
|
| Step 3 :: Disassembling the motherboard |

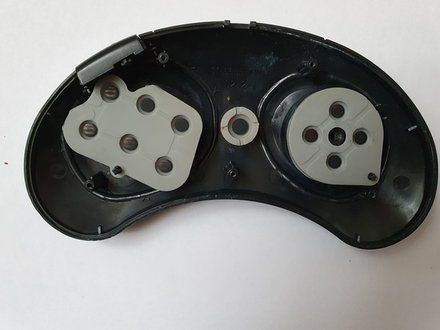

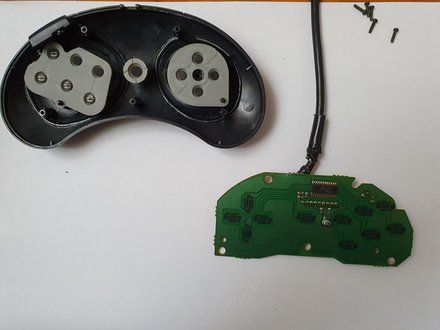

![[step 3 photo]](132517/step03-2.jpg) Remove the motherboard from the controller body, after releasing the rubber part that holds the cable in the controller body. NOTE: This gives you access to the button contact pads.
|
|

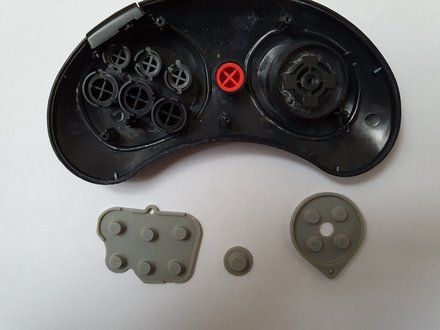

| Step 4 :: Dismantling the buttons | ![[step 4 photo]](132517/step04-1.jpg) Remove the contact pads. Then remove the 8 plastic buttons.
|
|
| Step 5 :: Dismantling the Directional Pad |

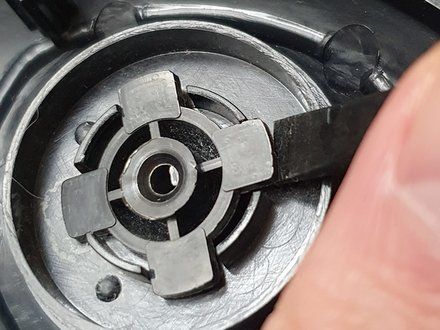

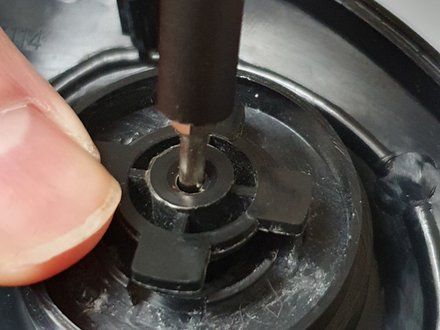

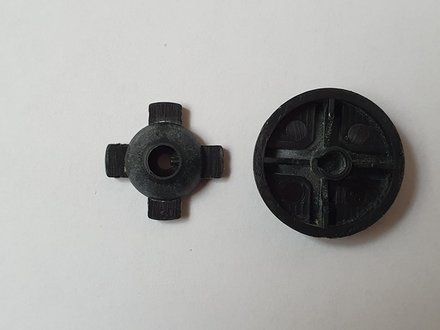

![[step 5 photo]](132517/step05-3.jpg) In order to disassemble the directional cross, it is necessary to levergentlypreferably with a plastic Spudger, under the 4 retaining tabs. Then, push in the central hole with a fine tool (here a screwdriver), in order to undo the assembly. CAUTION: For reassembly, be careful to put the alignment pin in front of the slot of the outer part!
|
|
| Conclusion | | Follow these steps in reverse order to reassemble your device. |
|
|
