PlayStation Case Disassembly

This guide is by JakeDeschamps on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This will guide you through the disassembly of your PlayStation's case.

Tools: Phillips #1 Screwdriver

Step 1

• Remove the parallel port cover on the back of the PlayStation.

Step 2

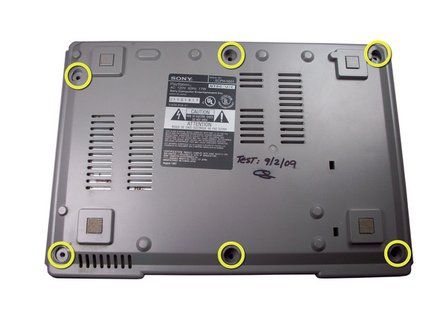

• Flip over the PlayStation and remove the six screws from the bottom.

Step 3

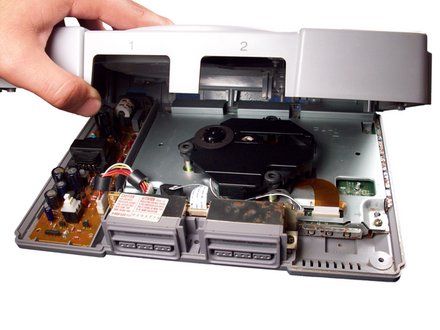

• Turn the PlayStation upright. Remove the cover by lifting it up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
