PlayStation Power Supply Replacement

This guide is by JakeDeschamps on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This will guide you through the replacement of your Power Supply.

Tools: Phillips #1 Screwdriver

Step 1

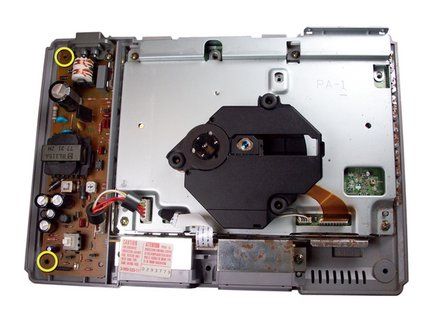

• Remove the two screws securing the power supply to the console.

Step 2

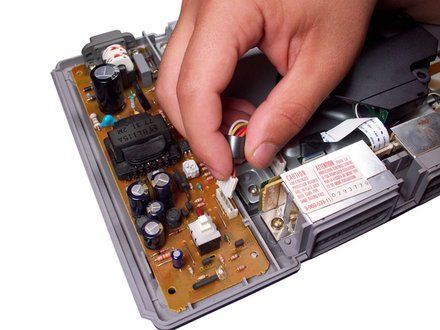

• Detach the connector from the power supply.

Step 3

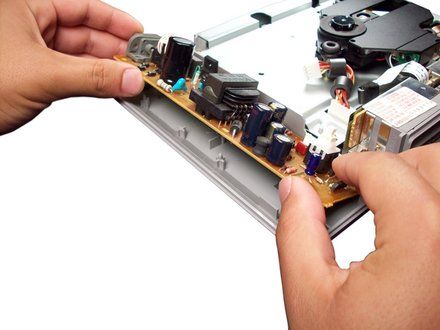

• Lift up the left side of the power supply. Slide it to the left to remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
