PLAYSTATION OPTICAL DRIVE REPLACEMENT::
DevicePlayStation
DifficultyEasy
Time5 - 10 minutes
Steps3
This guide is by JakeDeschamps on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This will guide you through the process of replacing your PlayStation's optical drive.

Tools: Phillips #1 Screwdriver


STEP 1::

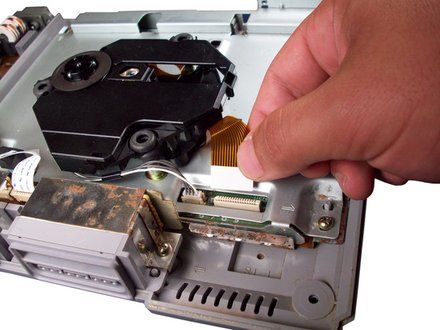

[step 1 photo]
• Carefully disconnect the gold-colored ribbon cable from it's connector.
• CAUTION: To avoid damaging the cable, pull it by the white, reinforced tab.

STEP 2::

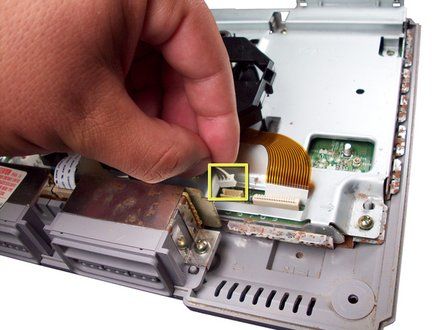

[step 2 photo]
• Disconnect the second cable by pulling up on the plastic connector at the end.

STEP 3::

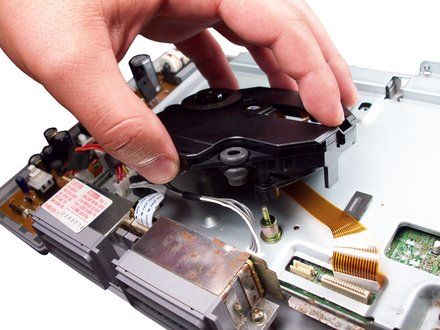

[step 3 photo]
• Lift the optical drive off of the PlayStation.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by JakeDeschamps on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
