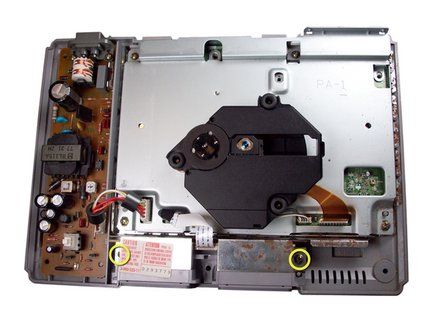

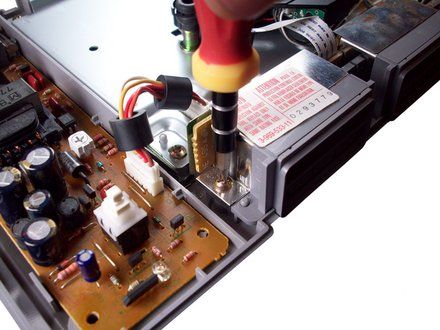

![[step 1 photo]](128571/step01-2.jpg) Remove the two screws securing the controller port to the case.
|
|
|
|  |  |  |

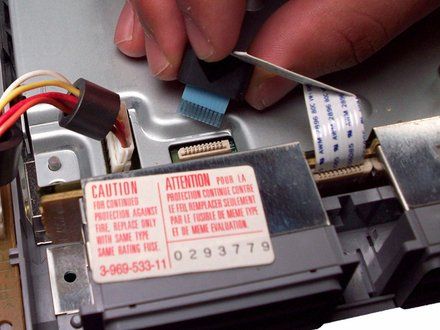

|  | ![[step 2 photo]](128571/step02-1.jpg) Gently disconnect the ribbon cable from the logic board. This is done by pulling on the blue area of the cable near the connector.
|
|
|
|  |  |  |

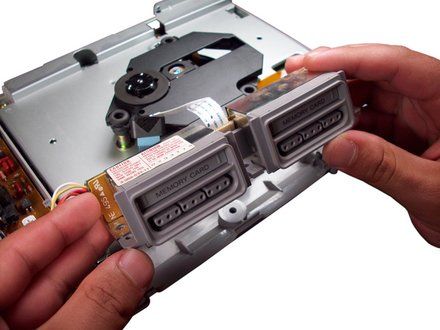

|  | ![[step 3 photo]](128571/step03-1.jpg) Remove and replace the controller port.
|
|
|
|  |  |  |
|  | | To reassemble your device, follow these instructions in reverse order. |
|
|
|  |  |  |
|
