Sega Saturn Case Replacement

Device	Sega Saturn
Difficulty	Moderate
Time	4 minutes
Steps	5

This guide is by Jan Ulloa on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will walk you through safely removing the battery and outer case of the Sega Saturn, either for replacing the case or gaining access to other internal parts. If your case is physically damaged, you can use this guide to completely replace the outer case. However, if you find your case is structurally sound but has yellowed or become discolored, you can remove the case and clean it chemically to restore it's original color (https://www.howtogeek.com/196687/ask-htg-why-do-old-computers-and-game-consoles-turn-yellow/).

Tools: ESD Safe Blunt Nose Tweezers; iFixit Opening Tool; JIS #1

Parts: CR2032 Lithium Battery

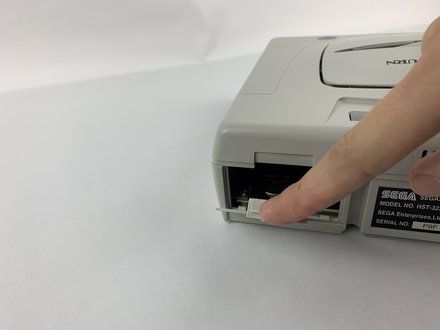

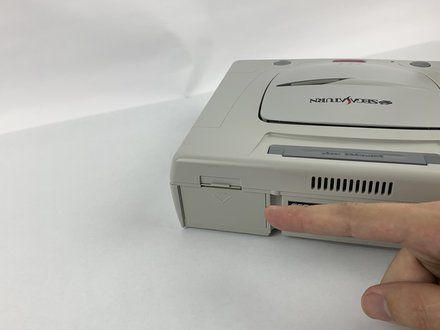

Step 1

• Press on the plastic lever on the back of the Sega Saturn to pop open the battery slot.

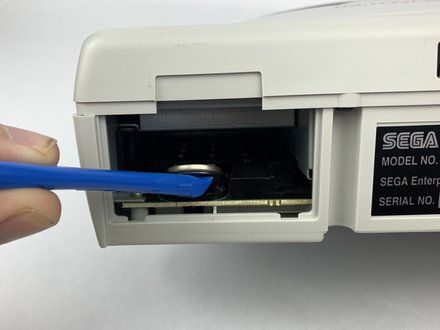

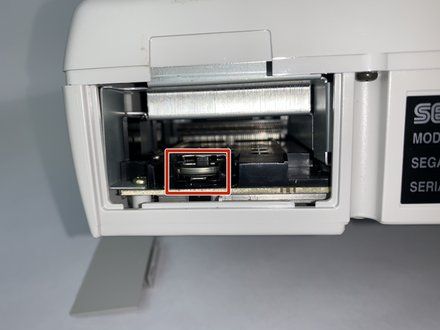

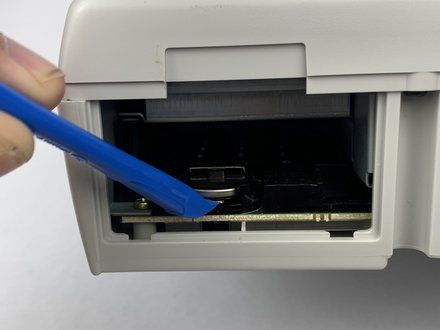

Step 2

• Push up the edge of the battery with the iFixit opening tool to get the battery out of its socket.

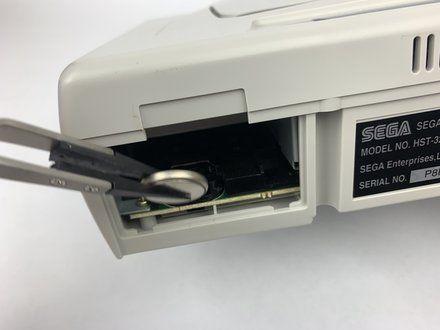

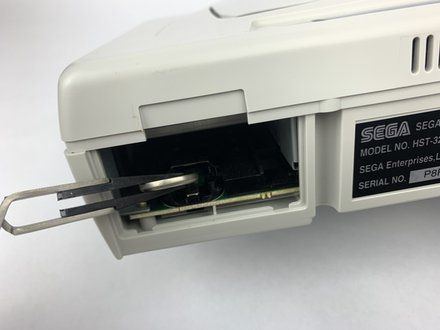

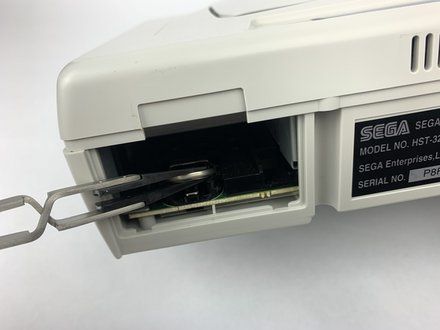

Step 3

• Use the ESD safe tweezers (https://www.ifixit.com/en-ca/products/tweezers) to pull the battery out of its slot.

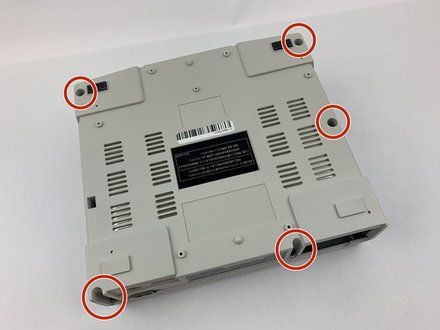

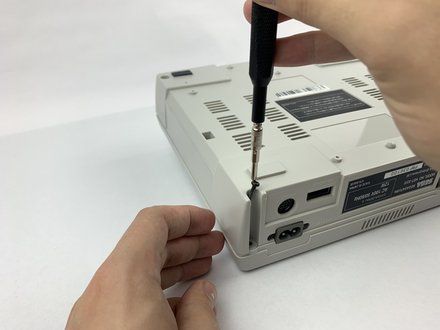

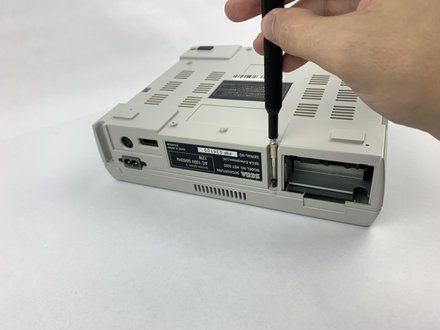

Step 4

• Remove the five black 13.5mm JIS#1 screws on the bottom of the device. One might be hidden by a sticker.

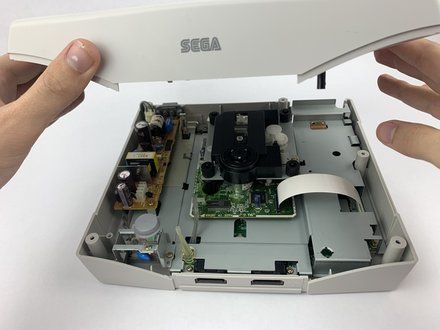

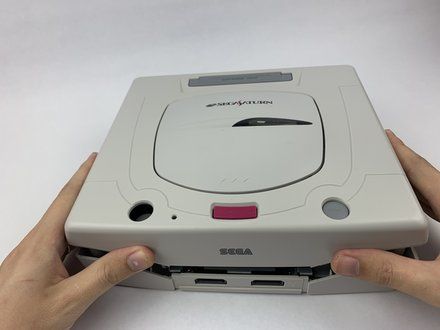

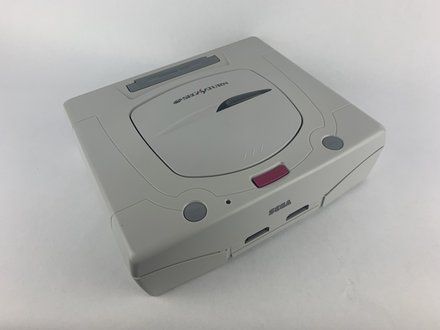

Step 5

• Flip the device over so it rests right side up.
• Lift gently across the seam of the Sega Saturn. If parts get stuck, a light shake or prying with the iFixit opening tool should free it up. Do not use any brute force, as this can damage the case so it doesn't close again.

Conclusion

To reassemble your device, follow these instructions in reverse order.
