NINTENDO GAME BOY ADVANCE SP BUTTONS
REPLACEMENT::
DeviceNintendo Game Boy Advance SP
DifficultyModerate
Time30 - 45 minutes
Steps13
This guide is by Spencer Day on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Follow this guide to replace, upgrade, or customize the buttons in your Nintendo Game Boy Advance SP.

This guide covers how to replace the action (A + B), shoulder (L + R), D?pad, brightness, and Start/Select buttons, plus the ON/OFF power switch cover.

If you're completely re?shelling your Game Boy, follow this guide (https://www.ifixit.com/Guide/How+to+Reshell+Your+Game+Boy+Advance+SP/137582).

The Game Boy Advance SP uses JIS screws. If you use a non-iFixit Phillips driver in JIS screws, you'll risk stripping them. iFixit's Phillips bits are designed to be compatible with JIS screws.

Tools: iFixit Precision Bit Driver; JIS 00 Screwdriver Bit; Tri-point Y0 Screwdriver Bit; Spudger; Tweezers


STEP 1 :: PREPARE YOUR GAME BOY FOR
DISASSEMBLY::
[step 1 photo] [step 1 photo] [step 1 photo]

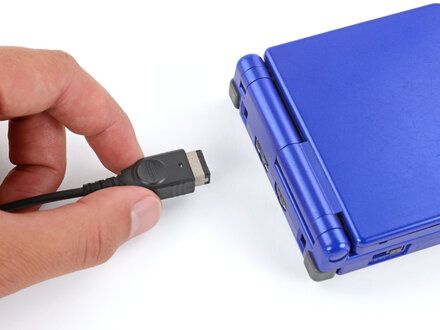

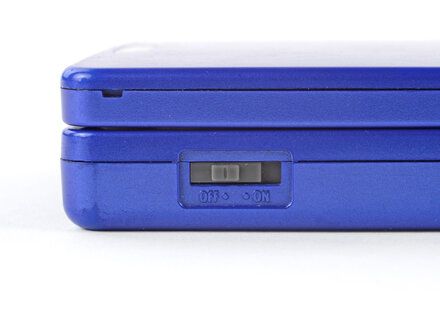

• Slide the power switch to the OFF position and unplug any cables.

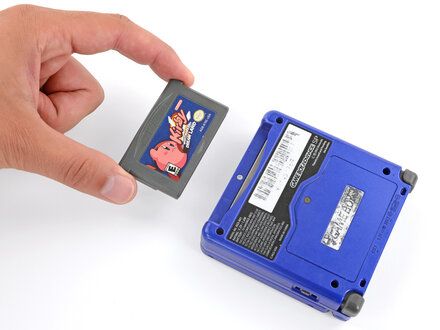

• If you have a game cartridge in, remove it.

STEP 2 :: REMOVE THE BATTERY COVER::
[step 2 photo] [step 2 photo]

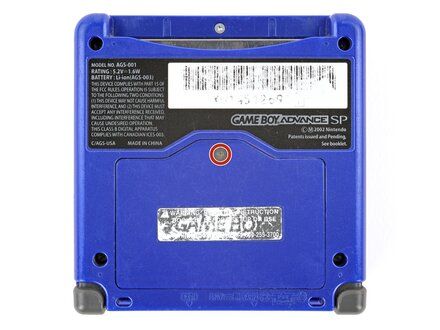

• Use a JIS 00 screwdriver to loosen the captive screw securing the battery cover.
    • NOTE: You can try to use a non-iFixit Phillips driver in a pinch, but you risk damaging or stripping the screw. Push down firmly on the driver and twist slowly.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

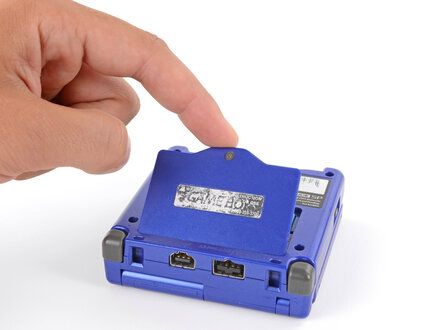

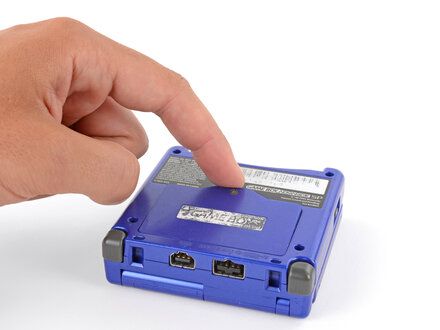

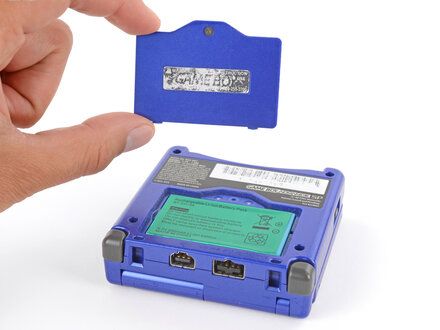

• Lift the edge of the cover near the screw and remove the cover.
• REMINDER: During reassembly, hook the tabs on the bottom edge of the cover into their slots and lay the cover into place.

STEP 4 :: REMOVE THE BATTERY::
[step 4 photo] [step 4 photo] [step 4 photo]

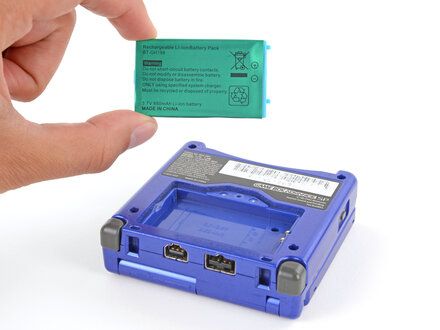

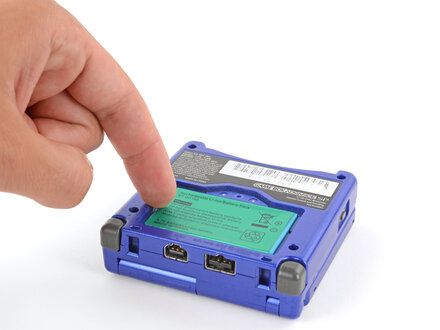

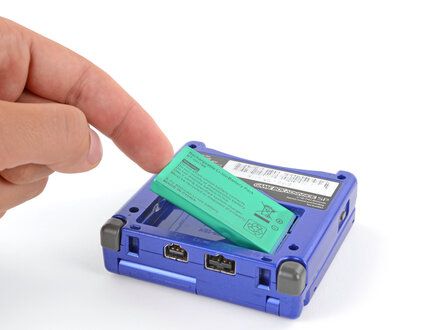

• Use your finger to lift the battery by the tab on its left edge, then remove it.
• REMINDER: During reassembly:
    • CAUTION: Never reuse a deformed or damaged battery--it's a fire hazard. Replace it with a new battery.
    • NOTE: Your replacement battery may come with a plastic enclosure (https://guide-images.cdn.ifixit.com/igi/AjbNiXYo4IjHmjmi.full) that slides over the battery.
    • Insert the edge of the battery with contacts (https://guide-images.cdn.ifixit.com/igi/cJ4ZcVQRCO6Kk1Jg.full) at a slight downward angle--aligning the contacts with their prongs (https://guide-images.cdn.ifixit.com/igi/N2qYpL2LmeRFSh1F.full) in the recess--and press the battery into place.

STEP 5 :: REMOVE THE BOTTOM SHELL::
[step 5 photo] [step 5 photo]

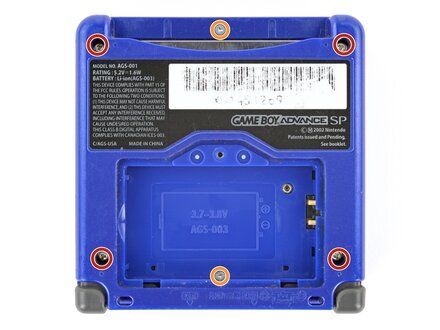

• Use a tri?point Y0 screwdriver to remove the six screws securing the bottom shell:
    • Four 6.3 mm?long recessed screws
    • Two 4.6 mm?long screws

STEP 6::
[step 6 photo] [step 6 photo]

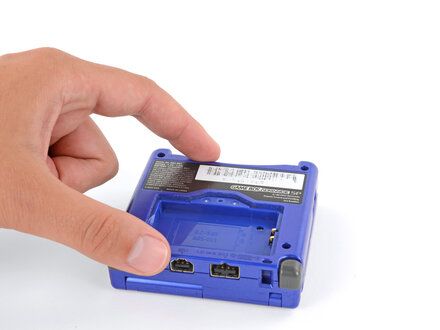

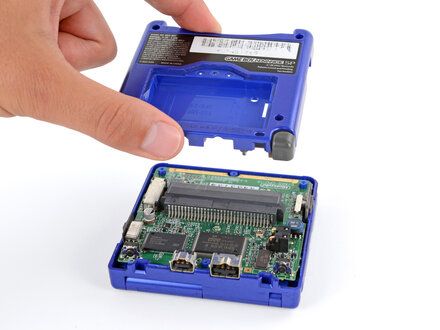

• Lift the bottom shell straight up and remove it.

STEP 7 :: UNCLIP THE SHOULDER BUTTONS::
[step 7 photo] [step 7 photo] [step 7 photo]

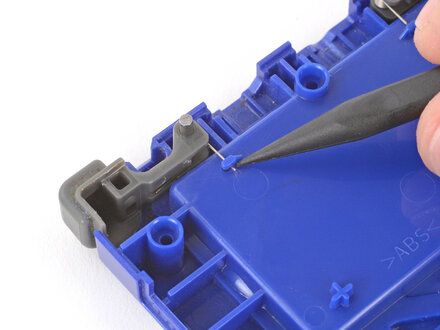

• NOTE: The shoulder buttons are located on the rear shell. They're made up of three parts (https://guide-images.cdn.ifixit.com/igi/BbjO5YNlxhgSkbUB.full)--the plastic cover, a hinge pin, and a small spring.

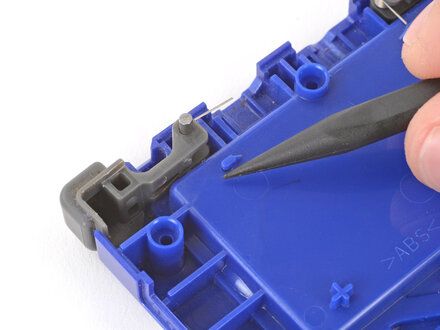

• Use the point of a spudger to push the spring arm out from under its clip.

STEP 8 :: REMOVE THE SHOULDER BUTTONS::
[step 8 photo] [step 8 photo]
• NOTE: The button's three parts will likely fall out during removal--don't worry, just set them aside for reassembly.

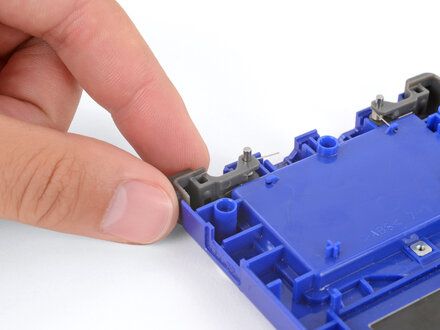

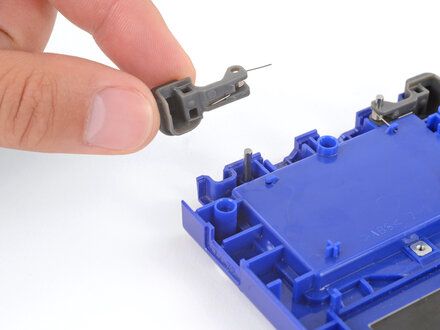

• Lift the shoulder button straight up and off its hinge pin to remove it.
• Repeat the process to remove the other shoulder button.
• REMINDER: During reassembly, follow this guide (https://www.ifixit.com/Guide/How+to+Install+Shoulder+Buttons+in+Your+Game+Boy+Advance+SP/193210) to install the shoulder buttons.

STEP 9 :: REMOVE THE POWER SWITCH COVER::
[step 9 photo] [step 9 photo]

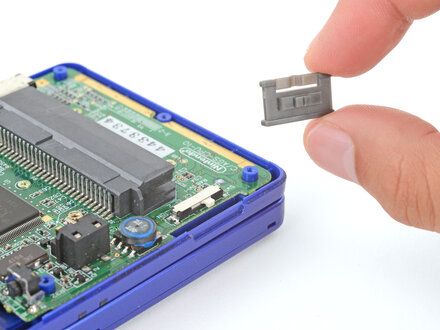

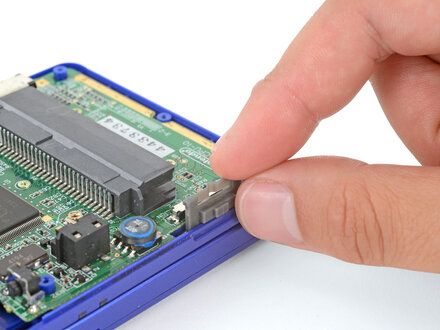

• Use your fingers to lift and remove the power switch cover.
• REMINDER: During reassembly:
    • Use your fingers to put the power switch cover (notched side up) into place so the cutout goes around the actual switch (https://guide-images.cdn.ifixit.com/igi/K5mXTLbSGyAbw3j4.full).
    • Gently slide the cover back and forth to make sure it's positioned properly and moving the switch.
        • NOTE: If the switch isn't properly in its cutout, you won't be able to power on your Game Boy.

STEP 10 :: REMOVE THE MOTHERBOARD
SCREWS::
[step 10 photo] [step 10 photo]

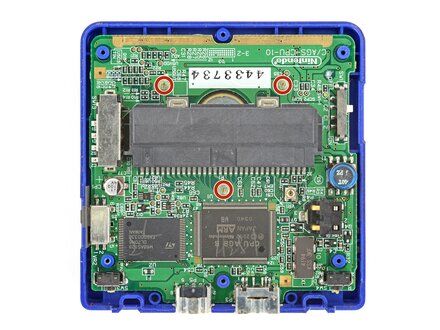

• Use a JIS 00 screwdriver to remove the three 4.1 mm?long screws securing the motherboard.

STEP 11 :: PROP UP THE MOTHERBOARD::
[step 11 photo] [step 11 photo] [step 11 photo]

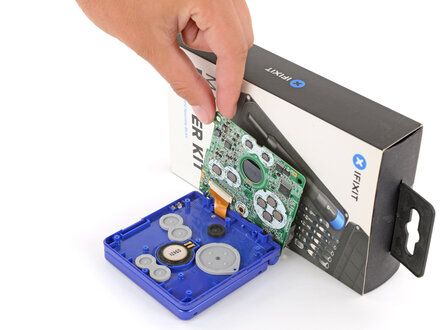

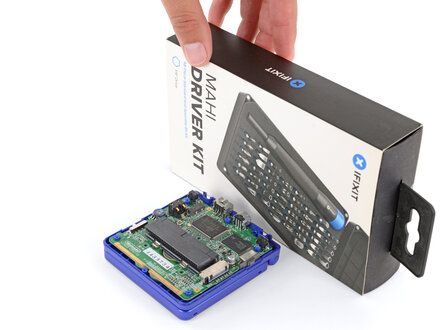

• Place a sturdy object such as a stack of books or tool case along the edge of your Game Boy with the hinges.

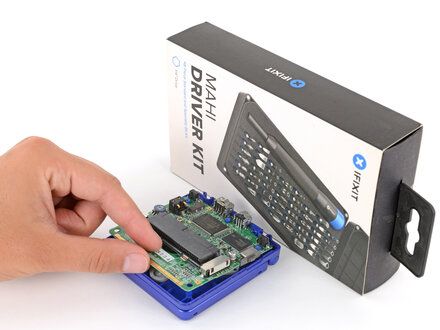

• Use your fingers to gently flip the motherboard over the hinges and prop it up.

STEP 12 :: REMOVE THE SILICONE PADS::
[step 12 photo] [step 12 photo] [step 12 photo]

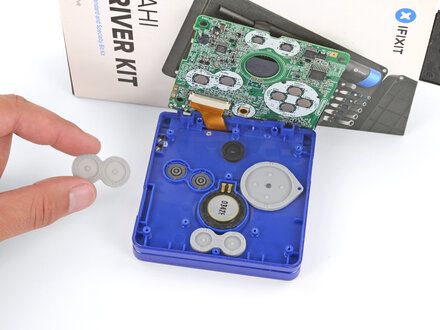

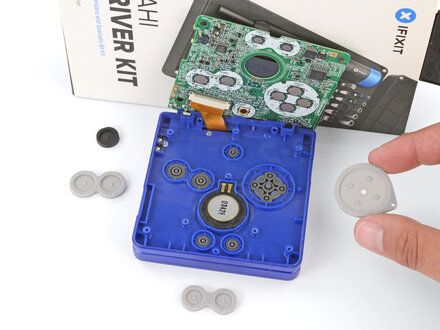

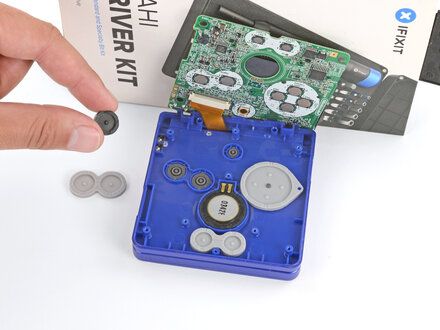

• Use tweezers or your fingers to remove the four silicone pads covering the buttons (A and B, D?pad, brightness, and Start/Select).
    • NOTE: If any of the pads are missing, they may be stuck to their corresponding spot on the motherboard.

STEP 13 :: REMOVE THE BUTTONS::
[step 13 photo] [step 13 photo] [step 13 photo]

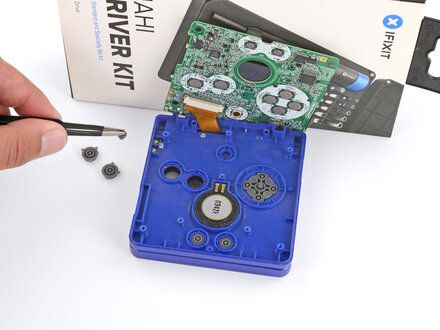

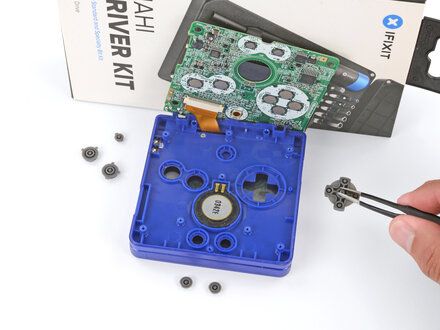

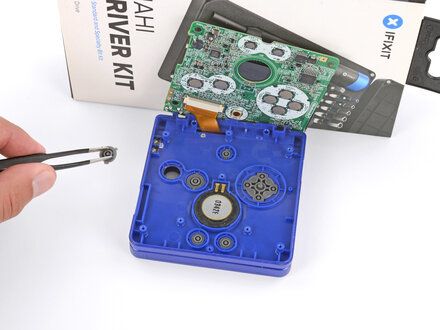

• Use tweezers or your fingers to remove the buttons (A and B, D?pad, brightness, and Start/Select).
• REMINDER: When re?inserting the action buttons, note that each one is keyed specifically for its recess and proper orientation.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler (https://www.ifixit.com/Wiki/E-Waste).

Repair didn't go as planned? Try some basic troubleshooting (https://www.ifixit.com/Wiki/Troubleshooting_Problems_After_a_Repair), or ask our Answers Community (https://www.ifixit.com/Answers/Device/Game_Boy_Advance_SP) for troubleshooting help.

CREDIT::
This guide is by Spencer Day on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
