TEARDOWN OF IBM THINKPAD I SERIES 1200::
DeviceIBM ThinkPad i Series 1200
DifficultyModerate
TimeNo estimate
Steps20
This guide is by Gianfranco Grigera on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide shows how to disassemble the IBM ThinkPad i Series 1200. In addition, it explains how to remove the microprocessor to change its thermal paste.

Tools: Destornilladores planos; Destornilladores phillips


STEP 1 :: DRUMS::
[step 1 photo]
• Before beginning, ensure the notebook is powered off.
• CAUTION: Unplug the power cord.

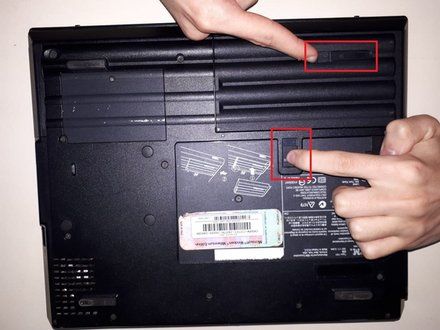

• To remove it, slide the two switches in such a way that it is unlocked, as shown in the picture, and then remove it.

STEP 2 :: HDD (HARD DRIVE)::
[step 2 photo] [step 2 photo]

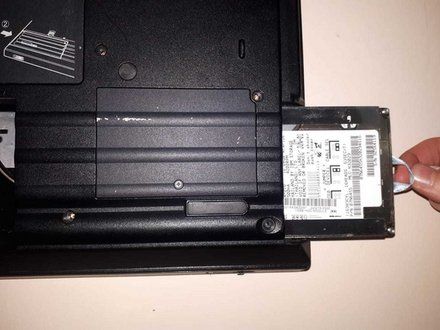

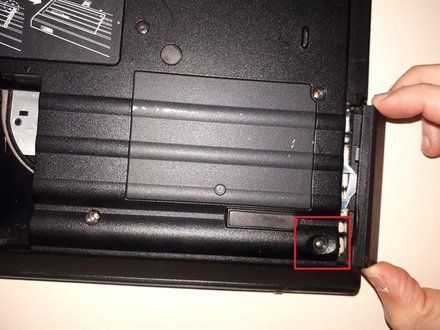

• Remove the screw in the lower corner.
• Remove the "cover" of the disk.
• Pull the "hook" that is attached to the disc to remove it.

STEP 3 :: RAM COVER::
[step 3 photo] [step 3 photo]

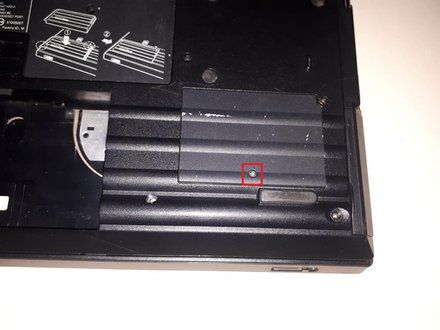

• Remove the indicated screw from the backside of the notebook.

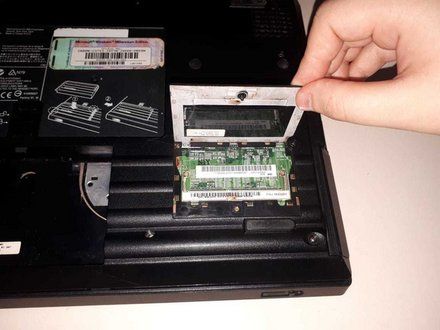

• Take off the cover that protects the RAM memory.

STEP 4 :: KEYBOARD::
[step 4 photo]

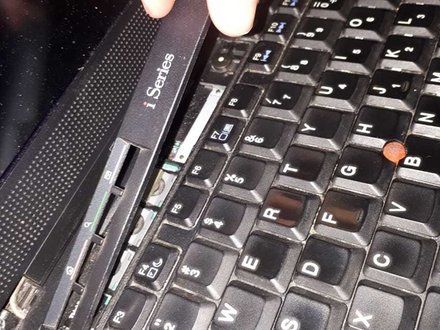

• Open the screen and lay it off the side in a flat manner.

STEP 5::
[step 5 photo]

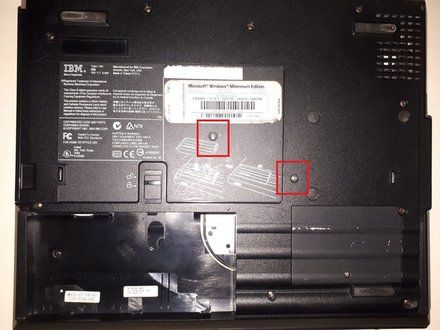

• Remove the indicated screws on the backside of the PC.

STEP 6::
[step 6 photo]
• Slide the keyboard down so that the covers from above aren't blocked and as so we will be able to remove them more easily.
• CAUTION: Don't pull too hard as this can cause the flex cables to break.

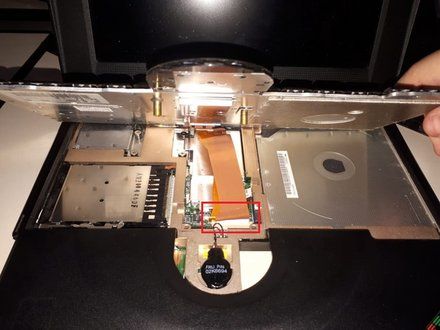

• Disconnect the two ribbon cables that are located on the underside of the keyboard.
• NOTE: The back up battery will be connected on the upper middle part.

STEP 7 :: INTERNAL RAM::
[step 7 photo]

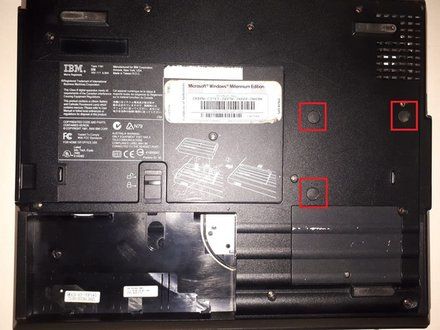

• Remove the three indicated screws from the backside.
• NOTE: It is to be note that these screws are located under protective rubber caps.

STEP 8::
[step 8 photo]

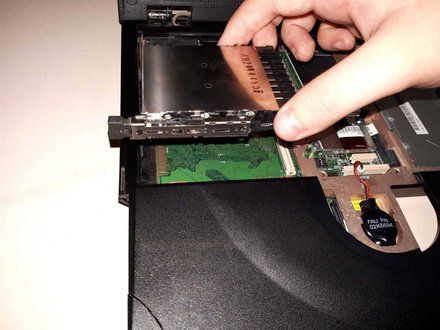

• Remove the RAM compartment.

STEP 9 :: ETHERNET CARD::
[step 9 photo] [step 9 photo]

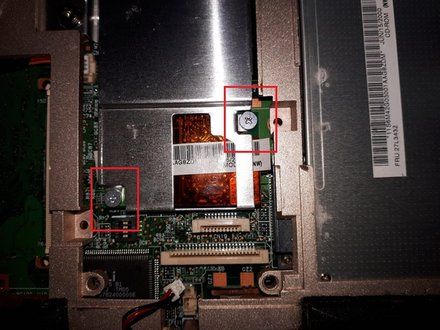

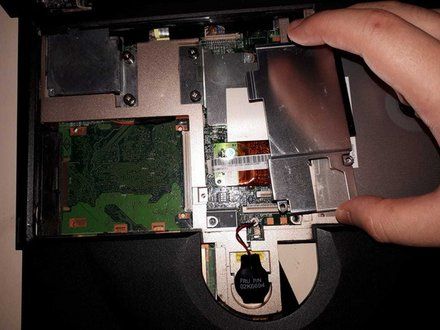

• Remove the two indicated screws.
• Remove the metal protector that is found above the plate.

STEP 10::
[step 10 photo]

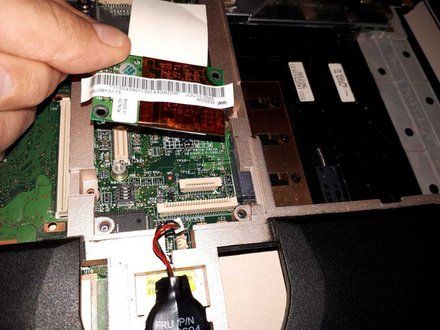

• Remove the Ethernet card.
• CAUTION: Careful as there's a cable connected that can be accidentally broken.

STEP 11 :: OPTICAL DRIVE::
[step 11 photo] [step 11 photo]

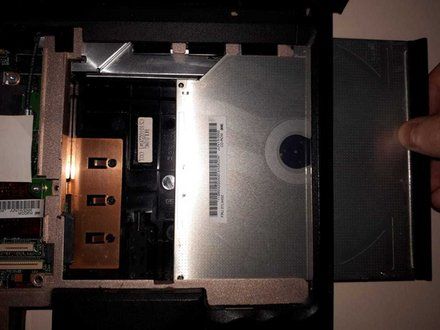

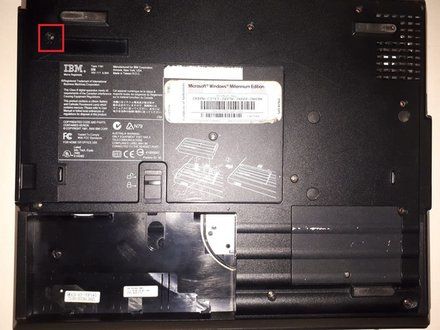

• Remove the indicated screws from the backside of the PC.
• Remove the optical drive by simply sliding it out.

STEP 12 :: DISPLAY::
[step 12 photo]

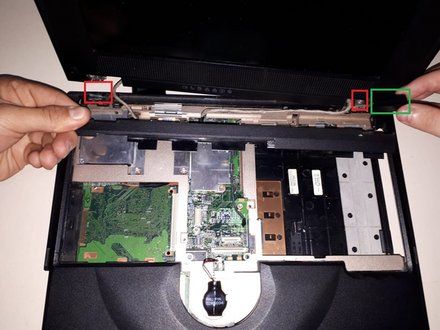

• First, remove the plastic components indicated.
• NOTE: These components are press-fitted, and thus we will have to remove them with care.
• Remove the two screws that are found after step one.
• Remove the plastic protector that is found on the upper part.

STEP 13::
[step 13 photo] [step 13 photo]

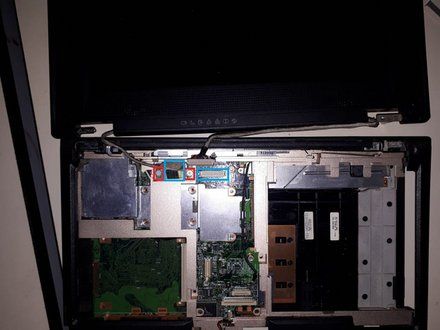

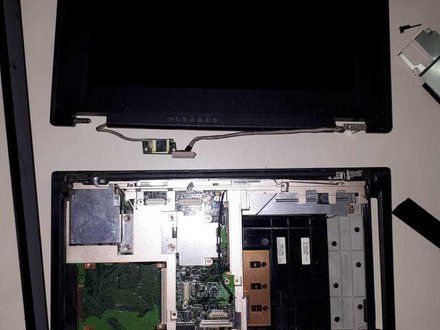

• Remove the two indicated screws.
• Proceed by removing the two connectors that are found there.
• CAUTION: Carefully start separating the display from the inferior side of our PC.

STEP 14 :: CPU::
[step 14 photo] [step 14 photo]

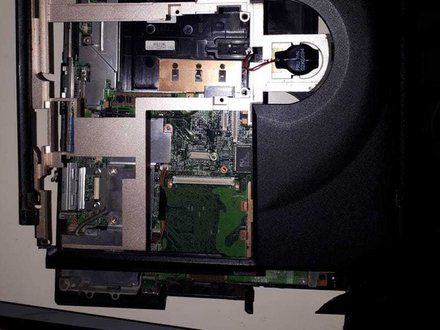

• Remove the plastic frame that surround the netbook.
• CAUTION: This component is press-fitted, so you have to remove it carefully so it doesn't break.
• Remove the metallic protector.

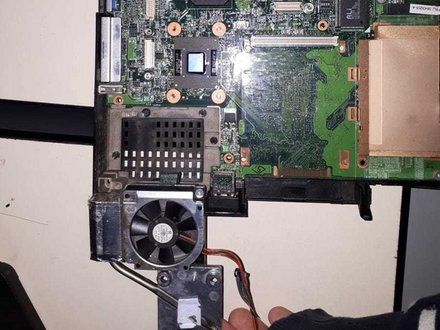

• Put aside the CPU cooler.

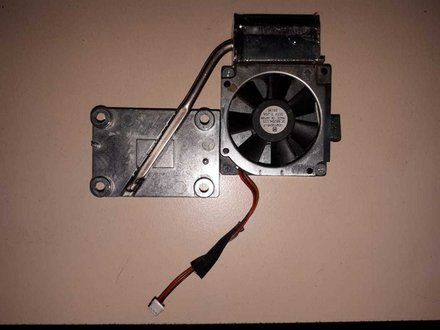

STEP 15 :: THERMIC PASTE CHANGE::
[step 15 photo] [step 15 photo]

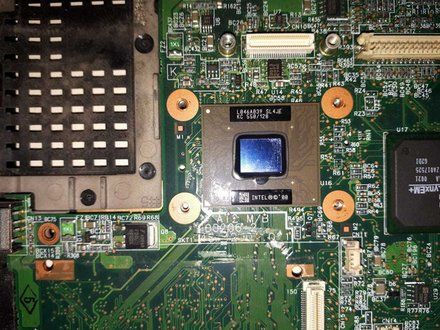

• Clean the fan and the old CPU paste.
• NOTE: You have to use alcohol and a small tissue.
• CAUTION: Alcohol is to not be used on any other part that was that aforementioned.

STEP 16::
[step 16 photo]

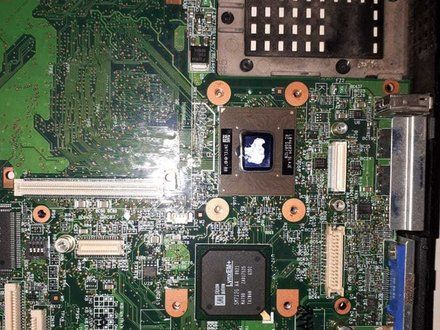

• Place new thermic paste and start putting your PC back together.

STEP 17 :: DISMANTLING THE DISLPAY.::
[step 17 photo] [step 17 photo]
• Once step 13 is completed.

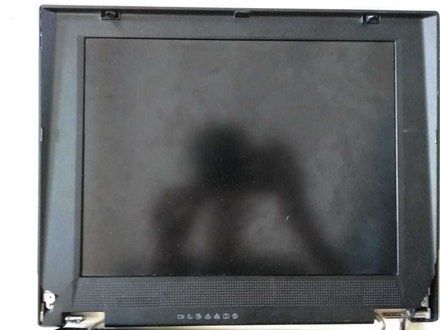

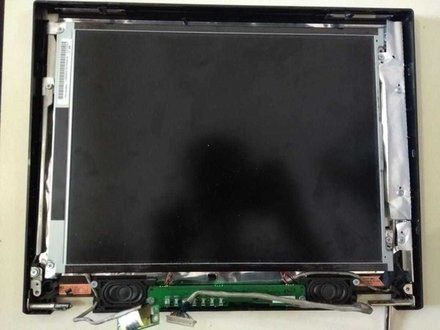

• Remove the plastic covers that surround the display.
• CAUTION: It must be done with a guitar "pick" as the plastic covers could break or scratch.

STEP 18::
[step 18 photo] [step 18 photo]

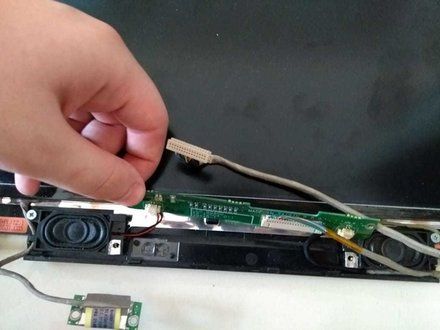

• Remove the indicated screws that hold the led board.

STEP 19 :: INVERTER::
[step 19 photo] [step 19 photo] [step 19 photo]

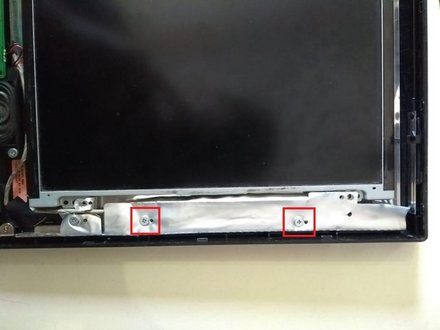

• Remove the indicated screws that hold the metallic covering.

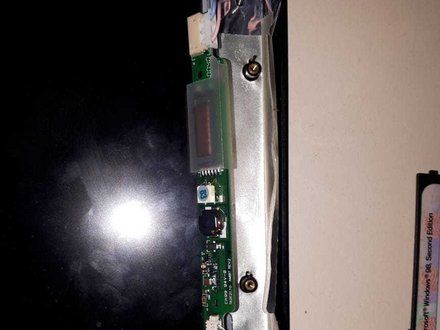

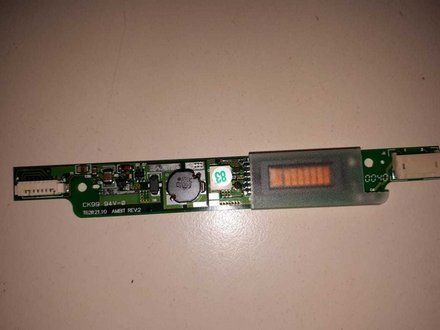

• Underneath you will find the inverter.

STEP 20::
[step 20 photo]

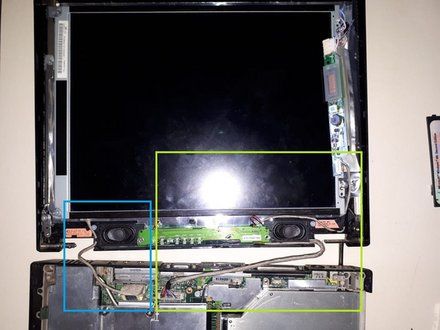

• Power supply connectors from motherboard to inverter.
• Data cables from motherboard to display.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
