| | Game Boy Color LCD Display Replacement |
| Device | Game Boy Color |
| Difficulty | Easy |
| Time | 50 minutes |
| Steps | 9 |
This guide is by Ajmal Puyehgar on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
The LCD Display is the screen that displays images from the Game Boy Color. This guide details how to disassemble and install an LCD Display.
Tools: Phillips #1 Screwdriver; Spudger; Tri-point Y0 Screwdriver |
|
| Step 1 |

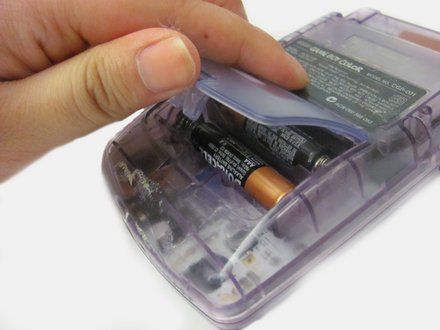

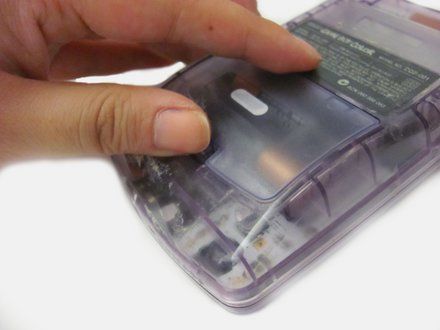

![[step 1 photo]](12761/step01-2.jpg) Locate the battery compartment on the back of the Game Boy Color. Push down on the tab and hinge the cover downwards and outwards to remove the battery cover.
|
|

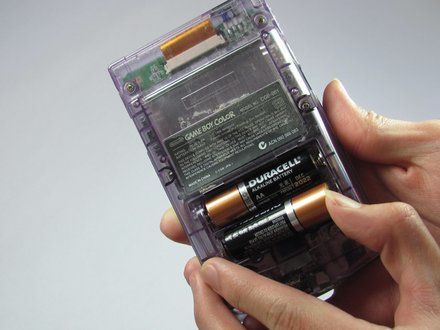

| Step 2 | ![[step 2 photo]](12761/step02-1.jpg) Remove the batteries from the battery compartment.
|
|

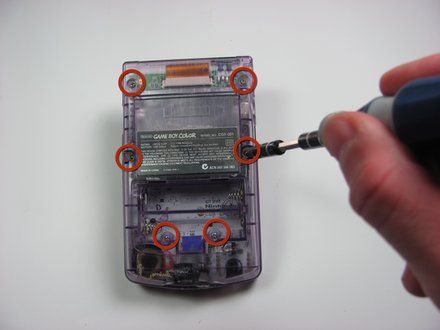

| Step 3 | ![[step 3 photo]](12761/step03-1.jpg) Using a Y1 screwdriver, remove the six screws on the back of the device as pictured. The bottom two screws are located inside of the battery compartment.
|
|
| Step 4 |

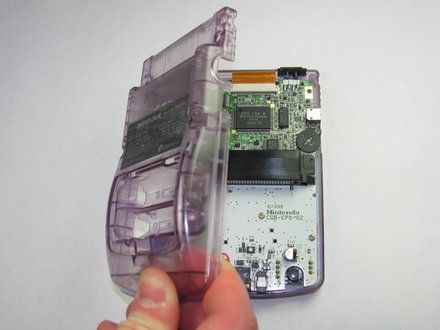

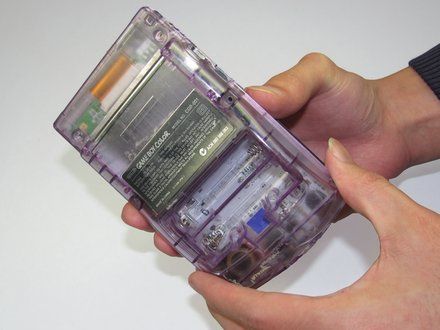

![[step 4 photo]](12761/step04-2.jpg) Gently lift and separate the back housing from the rest of the device. Now you've got the back housing out!
|
|
| Step 5 |

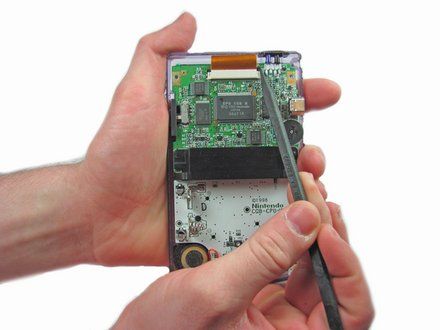

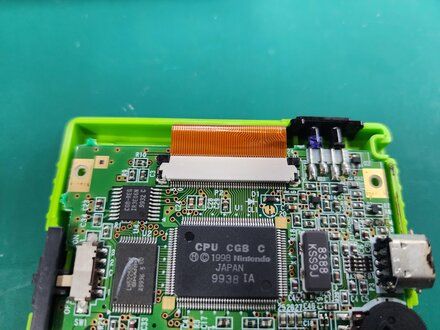

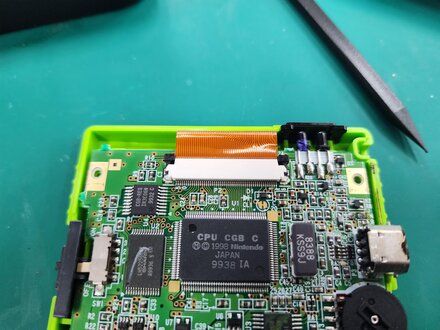

![[step 5 photo]](12761/step05-3.jpg) Push up on the tabs on either side of the ribbon with a spudger.
|
|
| Step 6 |

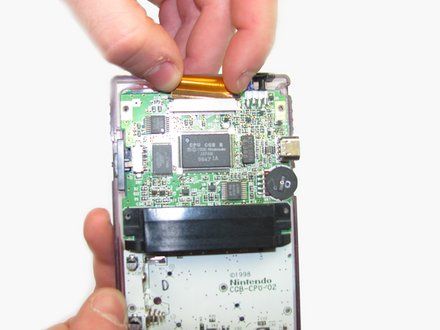

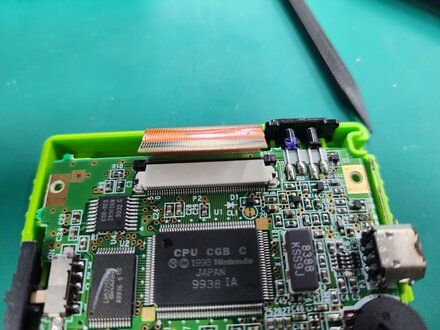

![[step 6 photo]](12761/step06-2.jpg) Gently remove the ribbon cable from the port
|
|
| Step 7 |

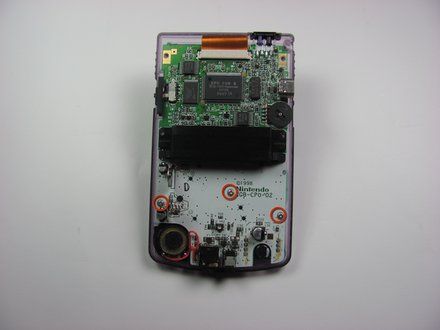

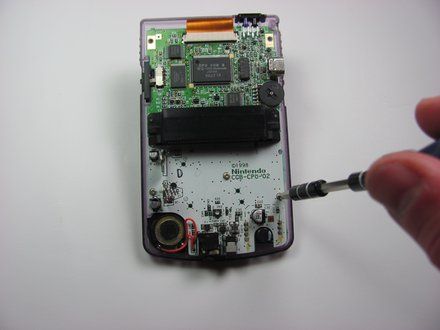

![[step 7 photo]](12761/step07-2.jpg) Using the Phillips #1 screwdriver, remove the 3 screws shown in the picture.
|
|

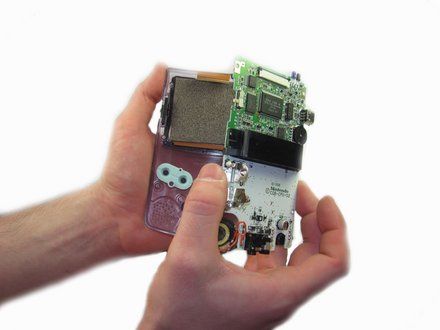

| Step 8 | ![[step 8 photo]](12761/step08-1.jpg) Gently lift the motherboard from the front housing.
|
|
| Step 9 |

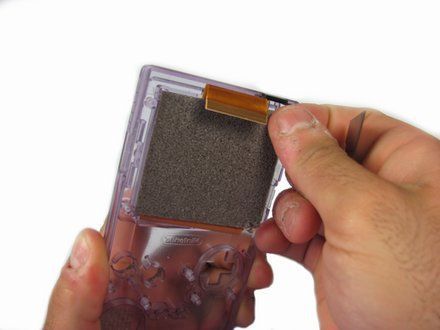

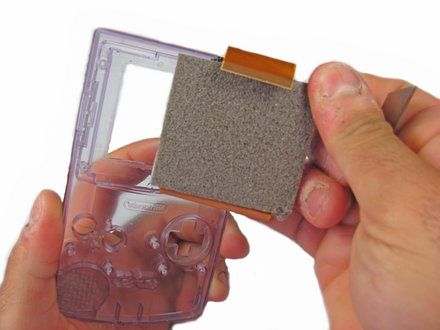

![[step 9 photo]](12761/step09-2.jpg) Gently pry and lift the LCD Display from the front panel. NOTE: Twisting the front casing may help gain more leverage.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
