| | Game Boy Color Front Housing Replacement |
| Device | Game Boy Color |
| Difficulty | Moderate |
| Time | 5 - 10 minutes |
| Steps | 11 |
This guide is by Angela Yoeurng on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
Is the outside shell of your Game Boy cracked, damaged, or you're just getting sick of your old housing? This guide outlines how to get down to the front housing so you can swap it out!
Tools: Phillips #1 Screwdriver; Spudger; Tri-point Y0 Screwdriver; Tweezers |
|
| Step 1 |

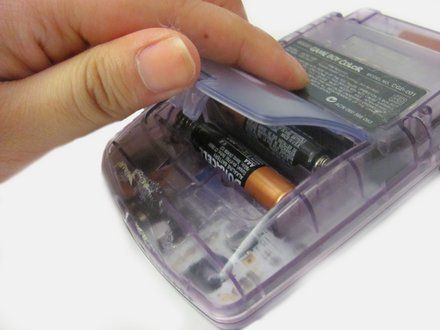

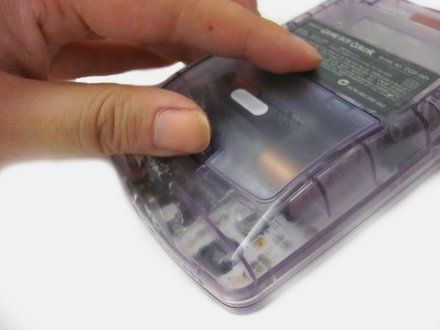

![[step 1 photo]](12731/step01-2.jpg) Locate the battery compartment on the back of the Game Boy Color. Push down on the tab and hinge the cover downwards and outwards to remove the battery cover.
|
|

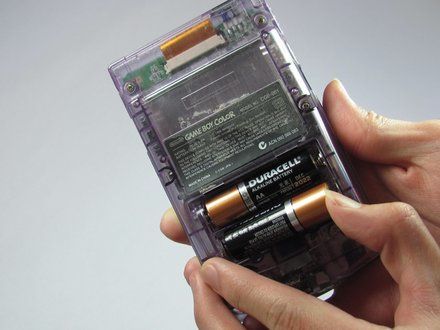

| Step 2 | ![[step 2 photo]](12731/step02-1.jpg) Remove the batteries from the battery compartment.
|
|

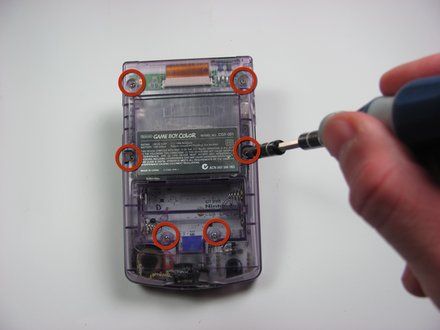

| Step 3 | ![[step 3 photo]](12731/step03-1.jpg) Using a Y1 screwdriver, remove the six screws on the back of the device as pictured. The bottom two screws are located inside of the battery compartment.
|
|
| Step 4 |

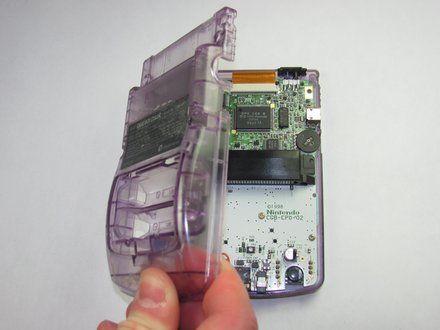

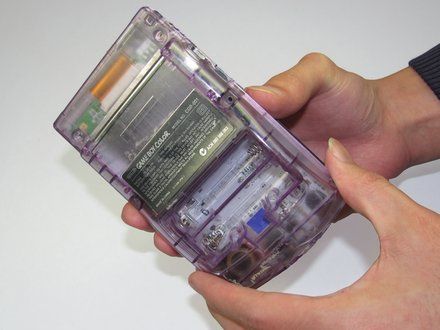

![[step 4 photo]](12731/step04-2.jpg) Gently lift and separate the back housing from the rest of the device. Now you've got the back housing out!
|
|
| Step 5 |

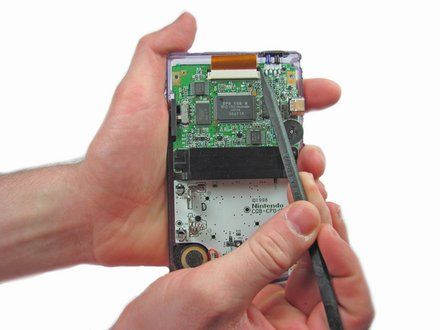

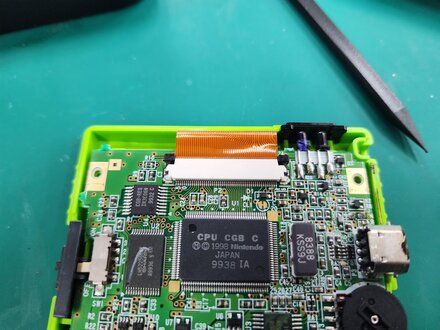

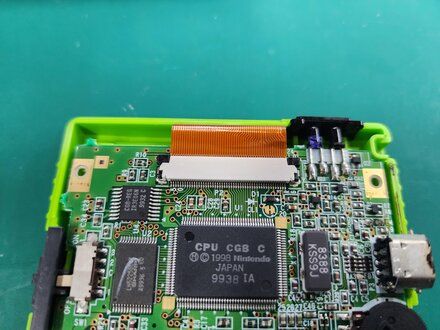

![[step 5 photo]](12731/step05-3.jpg) Push up on the tabs on either side of the ribbon with a spudger.
|
|
| Step 6 |

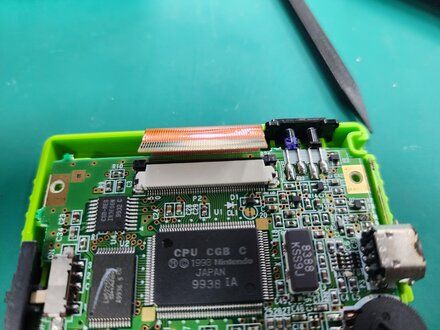

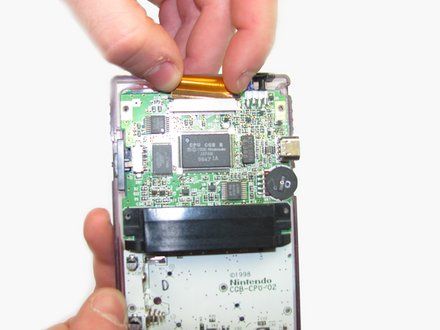

![[step 6 photo]](12731/step06-2.jpg) Gently remove the ribbon cable from the port
|
|
| Step 7 |

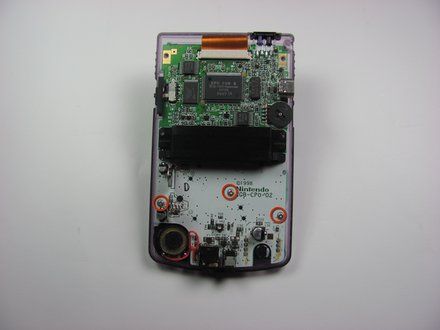

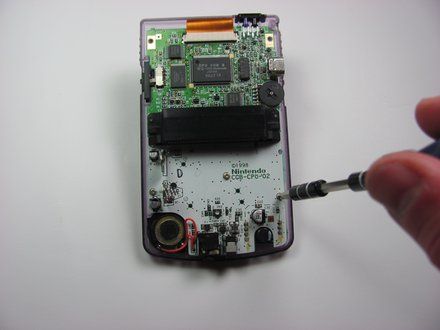

![[step 7 photo]](12731/step07-2.jpg) Using the Phillips #1 screwdriver, remove the 3 screws shown in the picture.
|
|

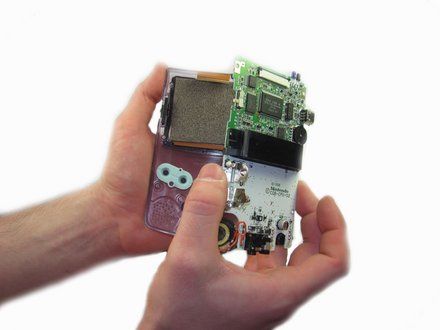

| Step 8 | ![[step 8 photo]](12731/step08-1.jpg) Gently lift the motherboard from the front housing.
|
|

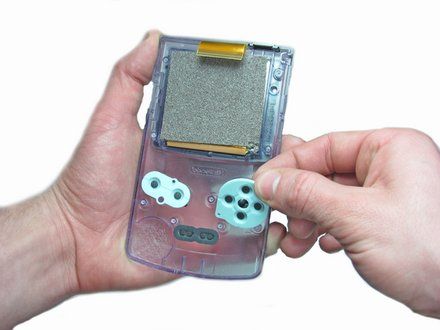

| Step 9 | ![[step 9 photo]](12731/step09-1.jpg) Remove the rubber backing on each button grouping.
|
|

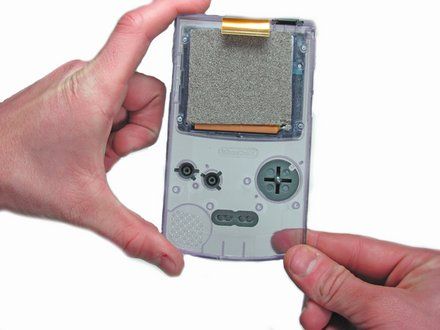

| Step 10 | ![[step 10 photo]](12731/step10-1.jpg) Remove the original buttons from the housing.
|
|
| Step 11 |

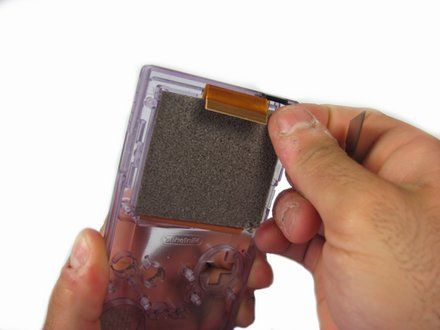

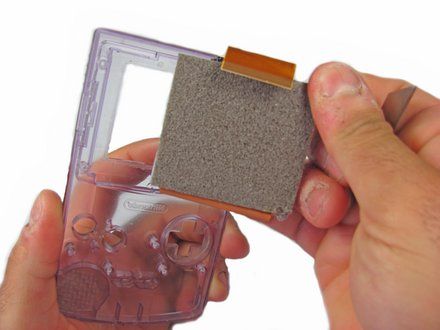

![[step 11 photo]](12731/step11-2.jpg) Gently pry and lift the LCD Display from the front panel. NOTE: Twisting the front casing may help gain more leverage.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
