Game Boy Color Screen Cover Replacement

Device	Game Boy Color
Difficulty	Moderate
Time	15 - 20 minutes
Steps	4

This guide is by Nick Katsantones on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The screen cover is the plastic window in front of the LCD screen. This guide shows how to replace the screen cover of the Game Boy Color.

Tools: Razor Blade; Spudger

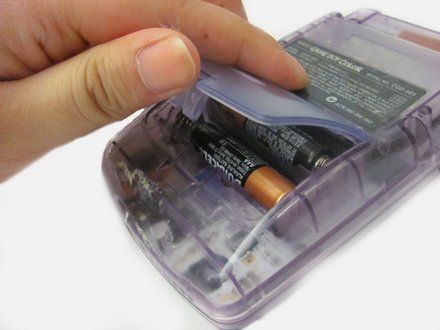

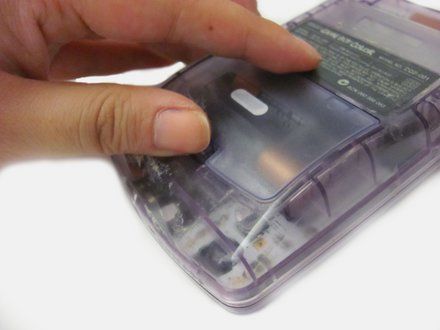

Step 1

• Locate the battery compartment on the back of the Game Boy Color.
• Push down on the tab and hinge the cover downwards and outwards to remove the battery cover.

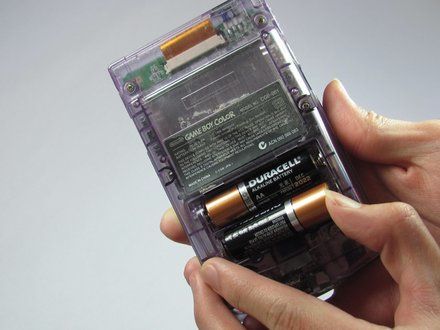

Step 2

• Remove the batteries from the battery compartment.

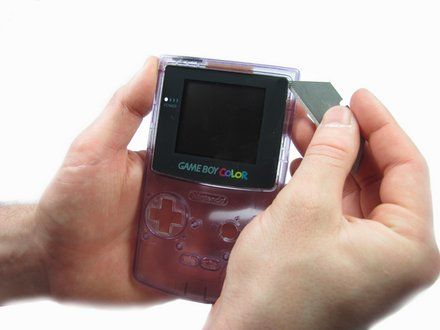

Step 3

• Carefully slide a razor blade under one of the corners of the screen cover.

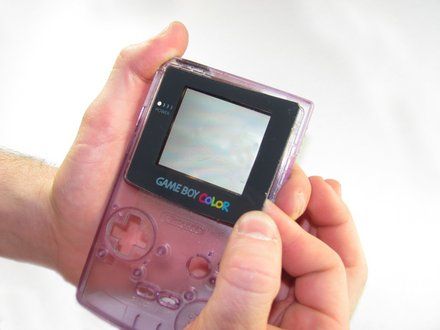

Step 4

• Carefully lift up on the corner of the screen until you can grab the corner with your fingers.
• Continue gently pulling up on the cover until it is fully removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
