Nintendo GameCube Controller Z Button Replacement

Device	Nintendo GameCube Controller
Difficulty	Easy
Time	1 - 3 minutes
Steps	3

This guide is by Sean Michel on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The Z button is located above the right trigger but functions as a button.

Tools: Tri-point Y0 Screwdriver; Tweezers

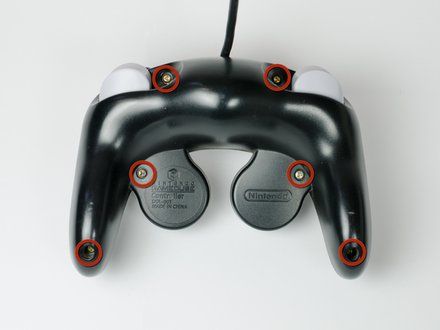

Step 1

• Place the controller (buttons down) on a solid surface.
• Remove the six 9.2mm Tri-wing Y0 screws that hold the back panel in place.

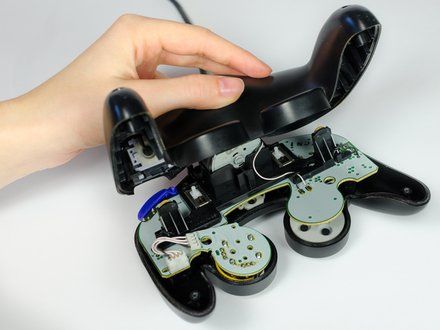

Step 2

• Gently lift the back panel up, separating it from the front panel.
• NOTE: Some of the buttons may fall out if they are knocked around.

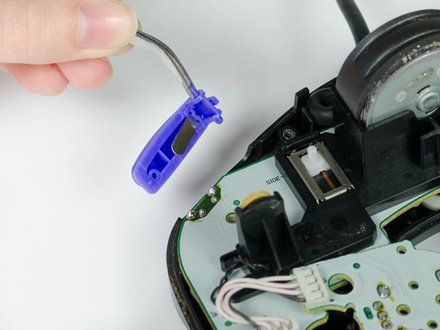

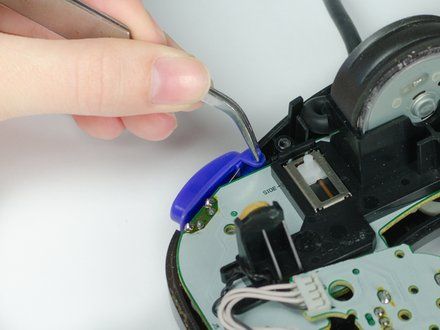

Step 3

• Grab the Z-button by the peg with tweezers and lift it out of the controller.
• REMINDER: During re-assembly, make sure the plastic rim and spring fit into the slot provided, or else the case will not shut.

Conclusion

To reassemble your device, follow these instructions in reverse order.
