Nintendo GameCube Controller Back Panel Replacement

Device	Nintendo GameCube Controller
Difficulty	Easy
Time	1 - 3 minutes
Steps	2

This guide is by Jeffrey Hufford on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

In this step we will be removing the bottom panel from the rest of the controller. This is necessary in order to access the inside components of the controller.

WARNING: Use caution when removing the bottom grip panel. Many of the buttons and components are held only loosely by the front panel and can fall out. Be sure to set screws aside carefully.

Tools: Tri-point Y0 Screwdriver

Step 1

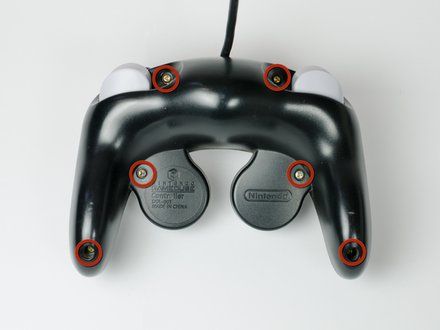

• Place the controller (buttons down) on a solid surface.
• Remove the six 9.2mm Tri-wing Y0 screws that hold the back panel in place.

Step 2

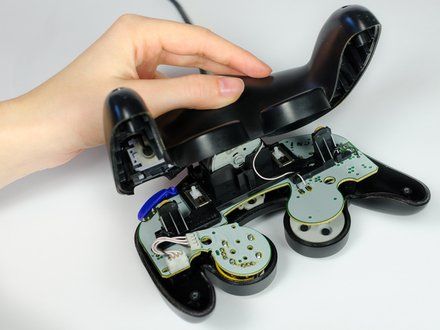

• Gently lift the back panel up, separating it from the front panel.
• NOTE: Some of the buttons may fall out if they are knocked around.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Credit
