| |  Apple Lisa SCSI Card Installation |
| Device | Apple Lisa |
| Difficulty | Moderate |
| Time | 5 minutes |
| Steps | 5 |
This guide is by LisaGuide on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
Parts: Sun Remarketing SCSI Card |
|
| Step 1 :: Disassembly | ![[step 1 photo]](123178/step01-1.jpg)
![[step 1 photo]](123178/step01-2.jpg)
• Follow the Apple Lisa Disassembly Guide (https://www.ifixit.com/Guide/Apple+Lisa+Disassembly/117991) to remove the Lisa's real panel.
• Remove the Lisa's Card Cage.
|
|
| Step 2 :: Installing the SCSI Card | ![[step 2 photo]](123178/step02-1.jpg)
![[step 2 photo]](123178/step02-2.jpg)

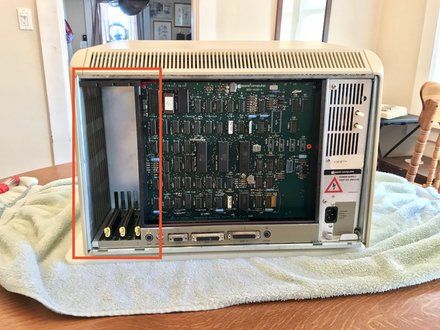

• Locate Lisa's expansion slots.
• Locate expansion slot 3.
• Pull the metal rod out from slot 3 and rotate 90º clockwise.

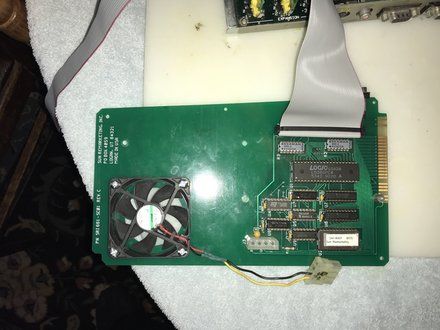

• Slide the SCSI Card into expansion slot 3.
• Rotate the metal rod, as described before, 90º counter-clockwise and push in to secure the Lisa DAC.
|
|
| Step 3 :: SCSI Upgrades | • The SCSI card includes 1 internal connector and 1 external connector.
• The internal connector is used for connecting a hard disk.
• If you intend to connect a hard disk then connect it now.
• Pin 1 is marked.
• The SCSI Card can also be cut to accommodate a Card Cage fan upon order request.
|
|

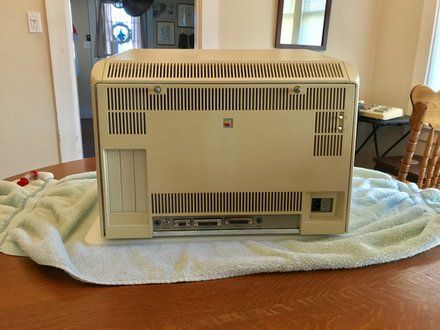

| Step 4 :: Reinstall Rear Panel | ![[step 4 photo]](123178/step04-1.jpg)
• Reinstall the Lisa's rear panel.
|
|
| Step 5 :: Using the SCSI Card | ![[step 5 photo]](123178/step05-1.jpg)
• The SCSI Card requires MacWorks Plus II (http://vintagemicros.com/catalog/lisa-macworks-plus-p-180.html).
• To use devices connected to the SCSI card please refer to the device's manual for proper device installation.

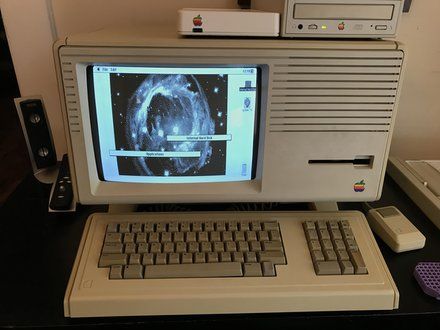

• This SCSI card was installed to use an Apple External SCSI CD-ROM Drive.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
