Apple Lisa XLerator 12.5/18 Installation

Device	Apple Lisa
Difficulty	Moderate
Time	20 minutes
Steps	6

This guide is by LisaGuide on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Philips head screwdriver; Flat Head Screwdriver

Parts: XLerator 12.5/18

Step 1 :: Disassembly

• Follow the Apple Lisa Disassembly Guide (https://www.ifixit.com/Guide/Apple+Lisa+Disassembly/117991) to remove the Lisa's real panel.
• Remove the Lisa's Card Cage.

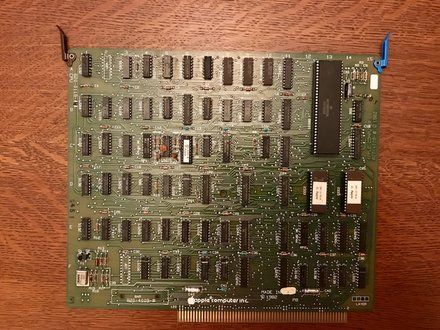

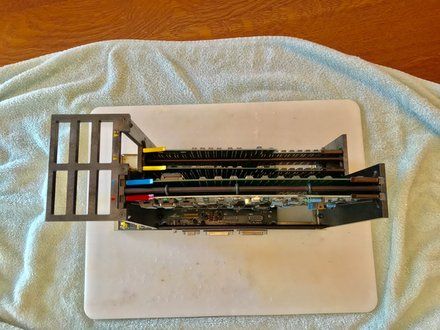

Step 2 :: Remove the CPU Board

• Remove the CPU Board. It is marked in blue.
• Lift up on the CPU Board's clips.
• Lift up the CPU Board to remove.

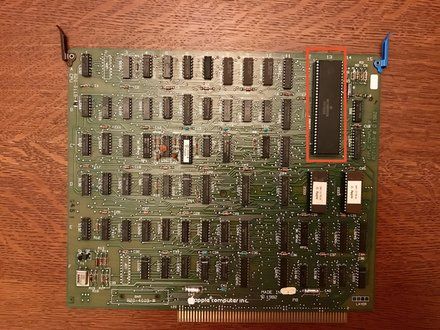

Step 3 :: Remove CPU Chip

• Locate the CPU at location 13A/B/C (the big one.)
• Remove the CPU. I used a flat head screwdriver to gently pry up the chip although there are better tools such as a Chip Remover.

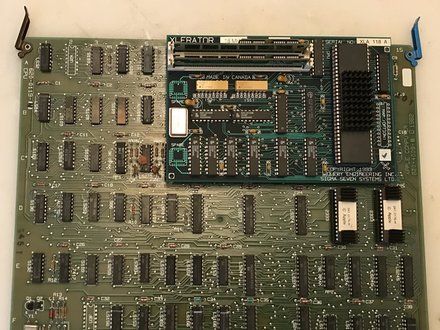

Step 4 :: Insert the XLerator

• Insert the XLerator in the CPU's socket.
• Ensure it "click" in all the way.
• If the XLerator seems loose then use electrical tape at your discretion to secure it to the CPU Board.

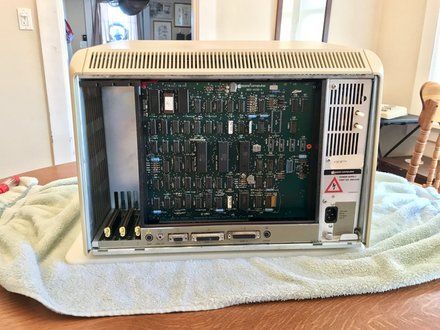

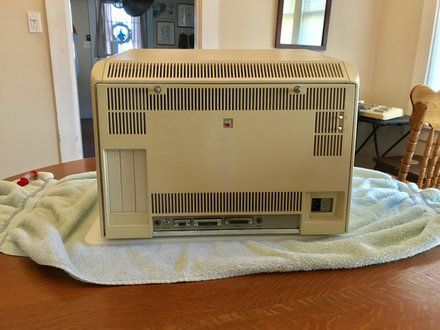

Step 5 :: Reassembly

• Reinstall the CPU Board into the Lisa's Card Cage.
• Reinstall the Lisa's Card Cage into the Lisa.
• Reinstall the Lisa's rear panel.

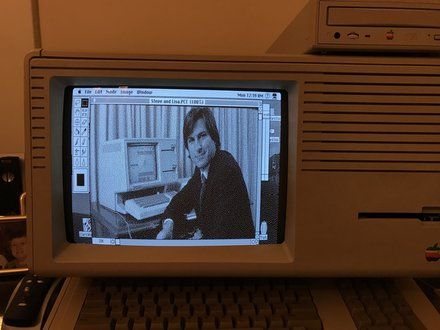

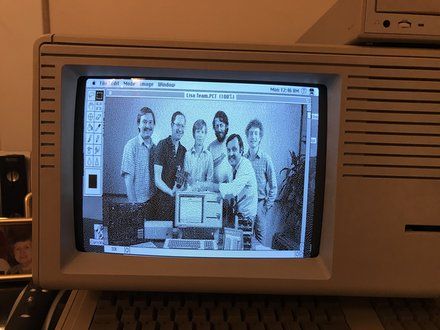

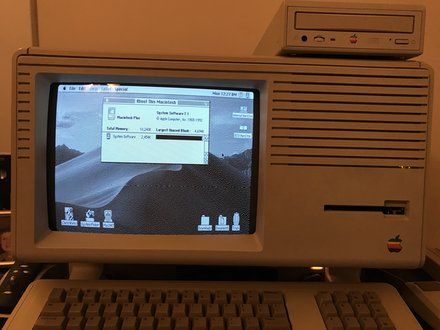

Step 6 :: Installing the Software

• XLerator software can be found on the MacWorks + II (MW+II) Installation floppy (http://macintoshgarden.org/apps/macworks-plus-ii).

Conclusion

To reassemble your device, follow these instructions in reverse order.

Credit
