Apple Lisa MacWorks II PFG Instalation
DeviceApple Lisa
DifficultyModerate
Time20 minutes
Steps7
This guide is by LisaGuide on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Philips head screwdriver

Parts: MacWorks Plus II Kit


Step 1 :: Disassembly
[step 1 photo] [step 1 photo]

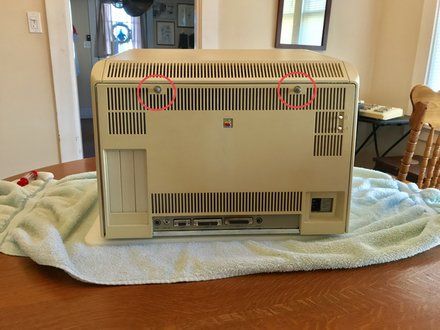

• Follow the Apple Lisa Disassembly Guide (https://www.ifixit.com/Guide/Apple+Lisa+Disassembly/117991) to remove the Lisa's real panel.

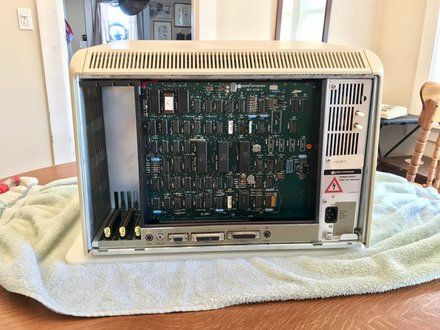

• Remove the Lisa's Card Cage.

Step 2 :: Remove I/O Board
[step 2 photo] [step 2 photo]

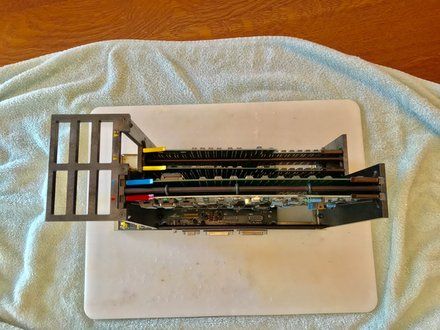

• Remove the Lisa's I/O Board. The I/O Board's clips are marked in red.
• Release both clips holding the I/O Board.
• Pull the I/O Board up to remove it.

Step 3 :: Removing the 8530 Chip
[step 3 photo]

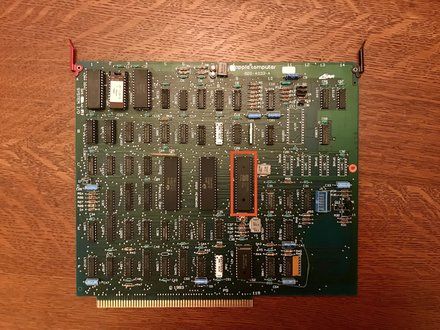

• Remove the chip marked 8530 at location 9D.

Step 4 :: Crystal Insulation
[step 4 photo]

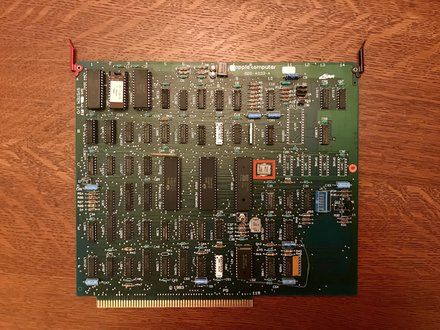

• Next to the chip removed in step 3 is a crystal. These are not always installed with a plastic coating. The crystal shown in the image is insulated.
• If your crystal is not insulated then tape a small piece of cardboard on top of it.

Step 5 :: Installing the Daughter Board
[step 5 photo]

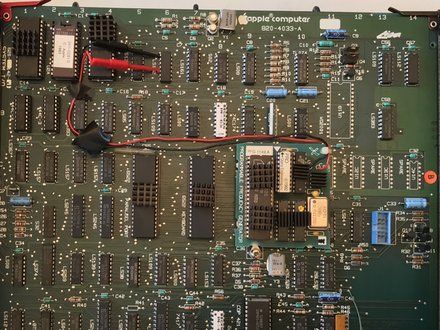

• Ensure the pins on the MW+II PFG (Programable Frequency Generator) are perfectly straight. If they are not then slightly bend them into place.
• Insert the PFG into the 8530 socket.

Step 6 :: Attaching Red and Black Wires
[step 6 photo] [step 6 photo] [step 6 photo]

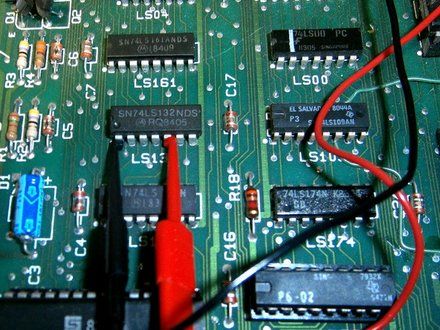

• Locate the chip marked LS132 located at 6A.
• Connect the Red and Black wires as shown in the second image on this step.
• It is best to place a piece of electrical tape on the wires to help hold them in place.

Step 7
[step 7 photo]
• Replace the I/O Board back into Lisa's Card Cage.
• Replace Lisa's Card Cage Back into the Lisa.
• Replace the rear panel on the Lisa.
• MacWorks + II (MW+II) floppy images can be found here (http://macintoshgarden.org/apps/macworks-plus-ii).
• The MW+II manual can be found here (http://mirror.macintosharchive.org/macintoshgarden.org/files/manuals/MacWorks_Plus_II_Manual.pdf) which includes detailed instructions how to instal thel MW+II software.

Conclusion
MW+II supports Macintosh System Software up to Macintosh System 7.5.5.
Supports over 10MB of RAM (more than 4MB requires an XLerator.)

Credit
This guide is by LisaGuide on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
