NINTENDO 64 CONTROLLER TEARDOWN::
DeviceNintendo 64 Controller
DifficultyModerate
Time5 - 15 minutes
Steps6
This guide is by Ian on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Phillips #1 Screwdriver; Phillips #0 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

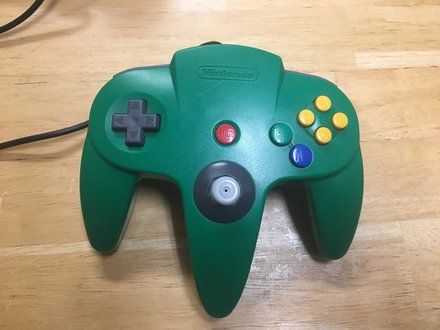

• Behold the glorious retro controller face, then forget about it because you will flip the controller for the rest of the teardown.

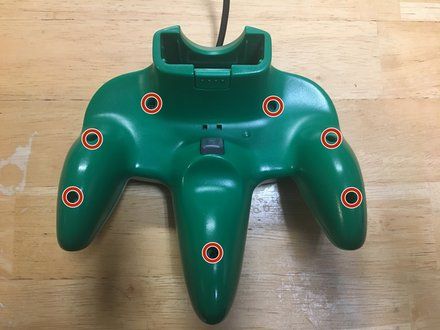

• Use the size #1 Philips to remove the 7 screws on the back of the controller.

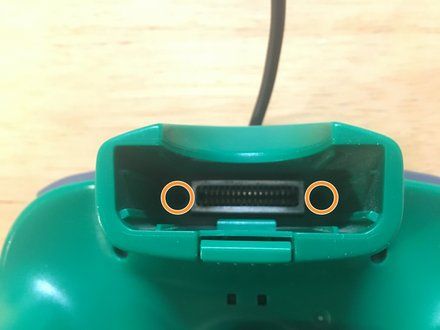

• Use the size #0 Philips to remove the smaller screws in the controller pak slot.

STEP 2::
[step 2 photo]

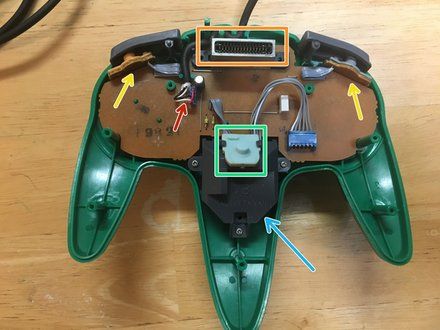

• Remove the back plate. You can now see the:
• Power Input
• Game Pak Slot
• Trigger Button Assemblies
• Z Button Assembly
• Joystick Module

STEP 3::
[step 3 photo]

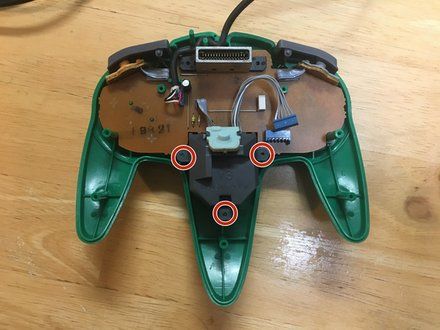

• Using a spudger or similar tool, carefully pry the Z button assembly from the joystick module.
• Remove the 3 size #0 screws holding in the joystick module.
• Remove the joystick cable from the main board.

STEP 4::
[step 4 photo] [step 4 photo]

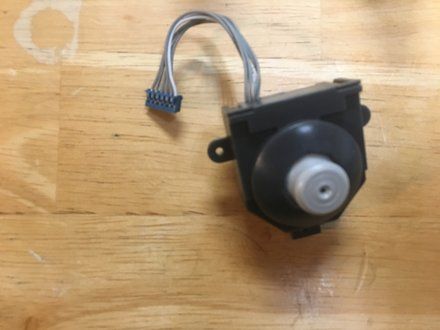

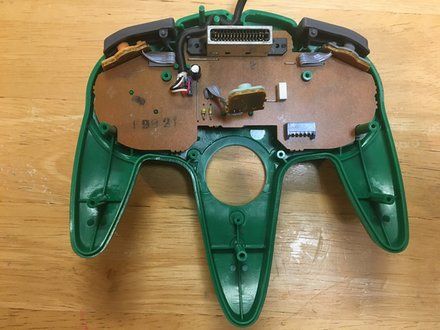

• Remove the joystick module.
• NOTE: This particular module is a third party replacement. Yours may look different.

STEP 5::
[step 5 photo] [step 5 photo]

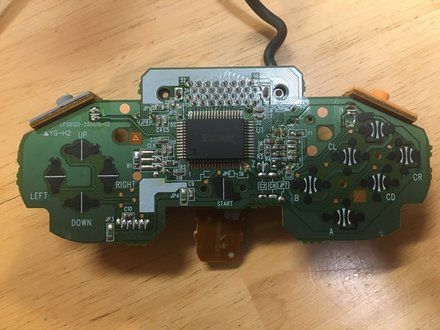

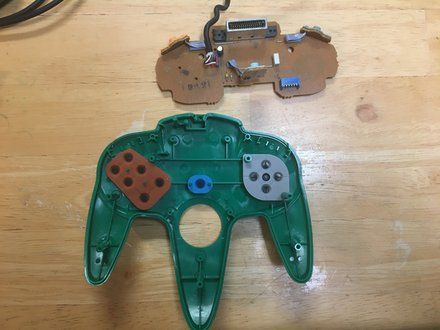

• Remove the main board and trigger assemblies.
• Your controller is now fully disassembled!

STEP 6::
[step 6 photo]

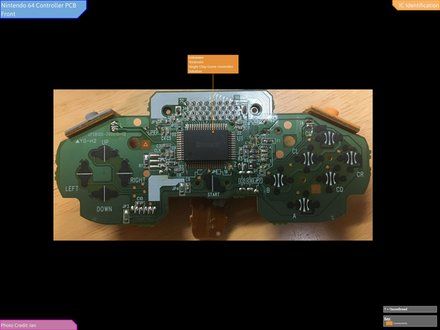

• Full IC Identification:
• NOTE: You may need to enlarge it to view the text.

CREDIT::
This guide is by Ian on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
