Apple Lisa Soft Switch Lamp Replacement

Device	Apple Lisa
Difficulty	Moderate
Time	45 minutes
Steps	6

This guide is by LisaGuide on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Philips head screwdriver

Parts: Apple Lisa SoftSwitch Lamp

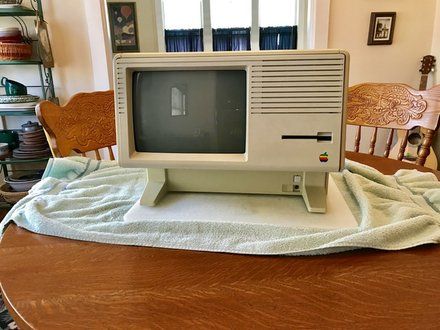

Step 1 :: Disassembly

[step 1 photo]

• Follow the Apple Lisa disassembly guide steps 1-9.

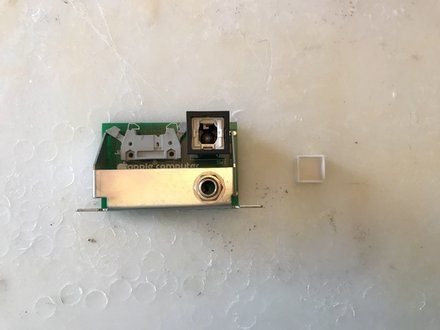

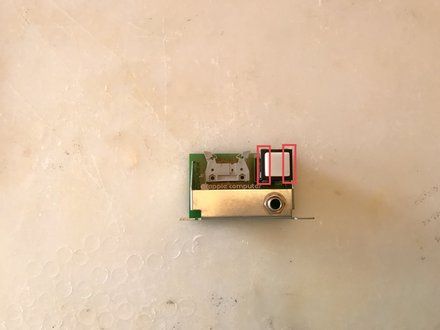

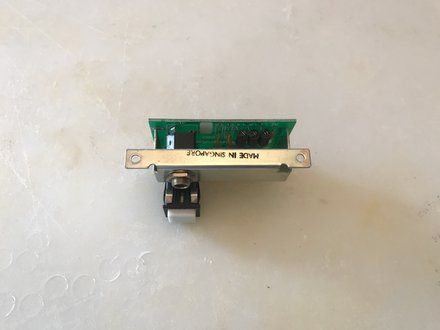

Step 2 :: Remove Lamp Cover

[step 2 photo]

[step 2 photo]

[step 2 photo]

• Insert something thin, non metallic, and sturdy. This will pop the the cover off the two clips that hold it in.

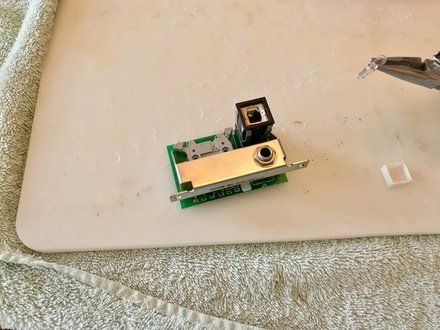

Step 3 :: Remove Bulb

[step 3 photo]

• Be careful and remove old bulb with needle-nose pliers.

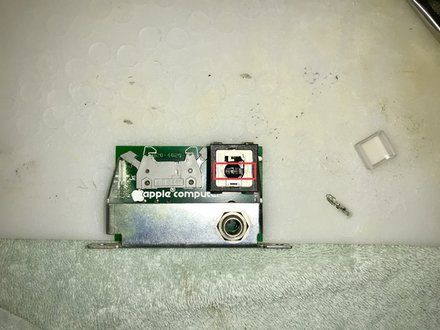

Step 4 :: Bulb Insertion

[step 4 photo]

• When inserting the new bulb be careful to line up the prongs.

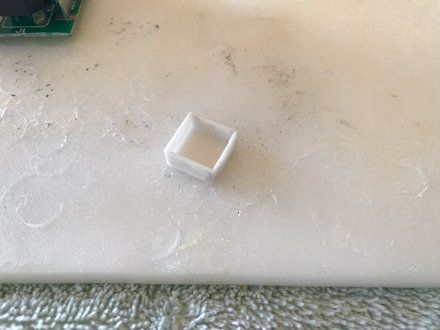

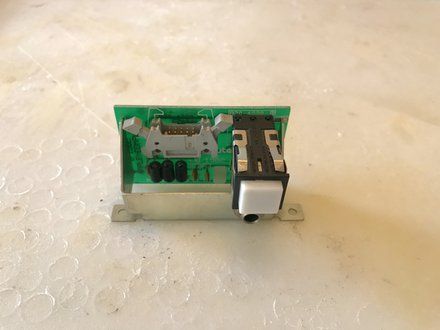

Step 5 :: Cover Replacement

[step 5 photo]

[step 5 photo]

• The cover will have two small holes and two larger notches. The two smaller notches will go up and down and the larger notches go left and right.

Step 6 :: Reassemble

[step 6 photo]

• Follow disassembly guide steps in reverse to reassemble.

Conclusion

To reassemble your device, follow these instructions in reverse order.
