IBM THINKPAD T30 OPTICAL DRIVE
REPLACEMENT::
DeviceIBM ThinkPad T30
DifficultyEasy
Time5 - 10 minutes
Steps4
This guide is by Alex Kost on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The IBM ThinkPad T30 is a laptop that was commonly used in both professional and personal settings. The optical drive allows users to read CDs and DVDs, making it useful for installing software, accessing media, or transferring files. As the device ages, the optical drive can begin to fail, causing issues such as discs not reading properly, unusual noises, or the drive failing to open at all.

These symptoms often indicate that the optical drive is worn out or no longer functioning correctly. Replacing the drive is a straightforward repair that can restore this functionality and improve the overall usability of the laptop.

In this guide, you will follow a step-by-step process to remove and replace the optical drive in the ThinkPad T30. This repair is considered easy and requires only basic tools, making it accessible for users with little to no repair experience.

Before starting, make sure the laptop is powered off, unplugged, and the battery is removed to prevent electrical damage. Although this repair is simple, internal components can still be sensitive, so avoid using excessive force when removing the drive.

Tools: Phillips #00 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

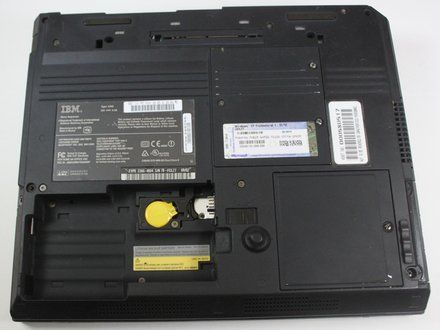

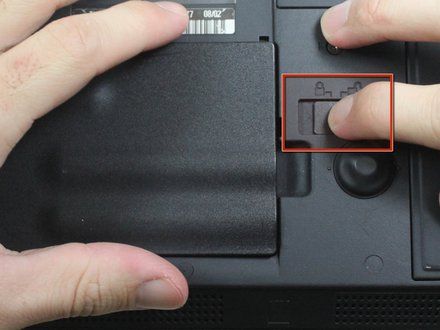

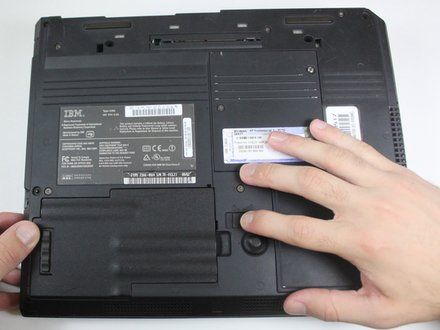

• NOTE: Make sure the ThinkPad is off and the power supply is unplugged.
• Flip the ThinkPad upside down with the bottom facing you.
• Slide the latch to the right into the unlock position.
• While holding the latch in the unlock position, lift the battery out with your other hand.

STEP 2::
[step 2 photo]

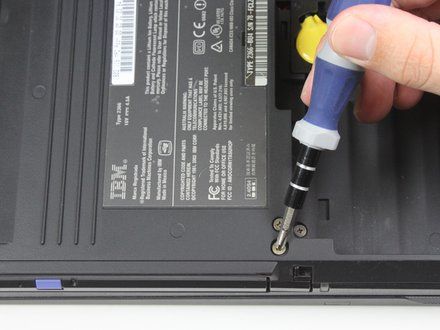

• Locate the 4.8mm Phillips #0 screw on the far left of the ThinkPad, closest to the edge and above the battery, and unscrew it with a Phillips #0 screwdriver.

STEP 3::
[step 3 photo] [step 3 photo]

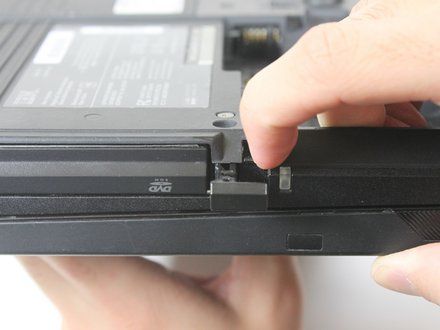

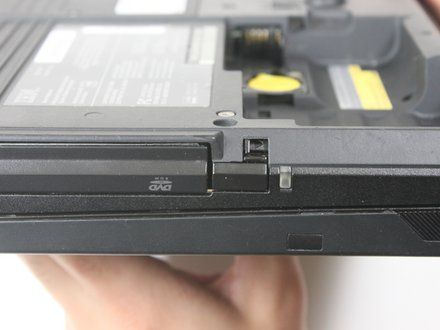

• On the side of the ThinkPad, locate a lock next to the optical drive. Use your fingernail to slide the lock to the right.

STEP 4::
[step 4 photo] [step 4 photo]

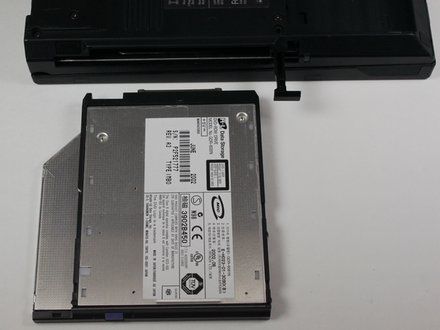

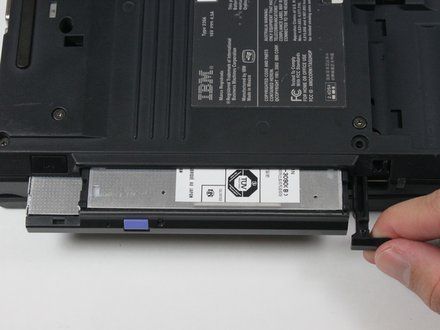

• Once it is unlocked, a small tab will pop out. Pull on the tab with your fingers.
• The optical drive will easily slide out. Remove the optical drive.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Alex Kost on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
