COLECOVISION CONTROLLER CIRCUIT BOARD
REPLACEMENT::
DeviceColecoVision
DifficultyModerate
Time20 minutes
Steps4
This guide is by Juin Yeh on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The purpose of this guide is to show step-by-step instructions on how to replace the circuit board of a ColecoVision game controller.

Tools: Phillips #1 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo]

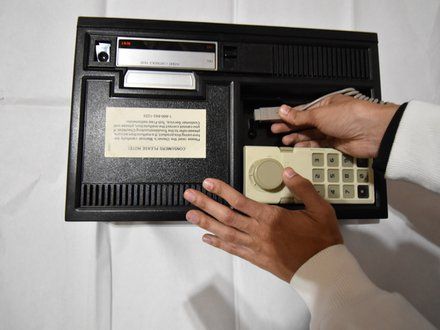

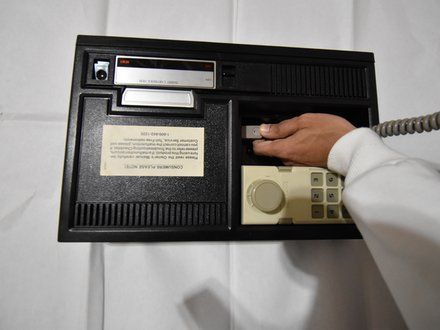

• Unplug the controller from the game console.

STEP 2::
[step 2 photo] [step 2 photo]

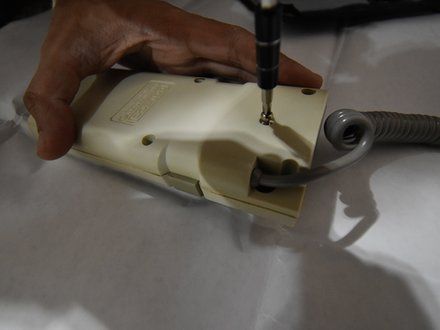

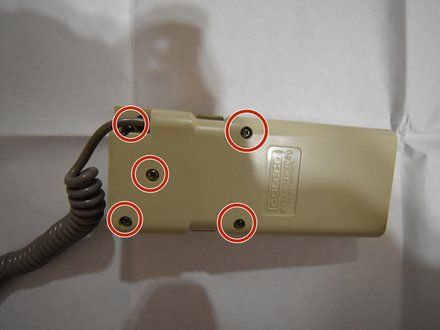

• Place the controller with the back panel up (buttons down).
• Remove the five 15mm screws on the back with a Phillips #1 screwdriver.

STEP 3::
[step 3 photo]

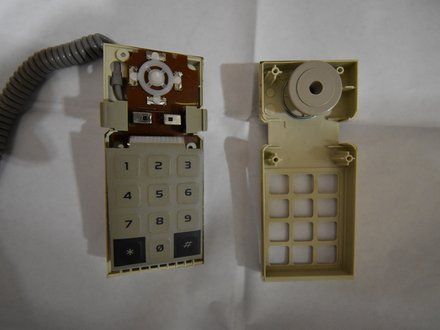

• Turn the device around.
• Separate the front panel from the rest of the controller and set aside.

STEP 4::
[step 4 photo] [step 4 photo]

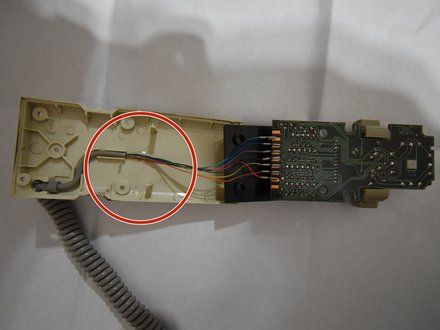

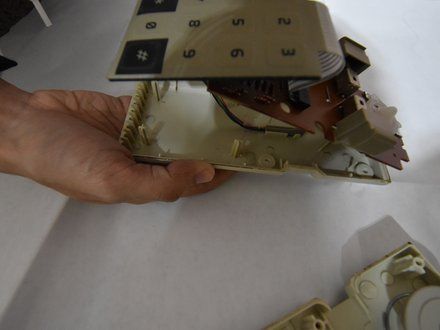

• Remove the tape and wiring holding the wires in place.
• Carefully lift the circuit board out of the controller.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
