ColecoVision Motherboard Replacement

Device	ColecoVision
Difficulty	Moderate
Time	15 - 20 minutes
Steps	4

This guide is by Krystalina on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The purpose of this guide is to give step-by-step instruction on how to replace the motherboard on a ColecoVision.

Tools: Metal Spudger; Phillips #1 Screwdriver

Step 1

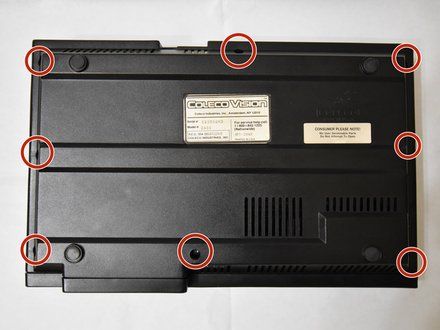

• Start by laying the console face down.
• Remove the eight 15mm Phillips #1 screws from the bottom of the device.

Step 2

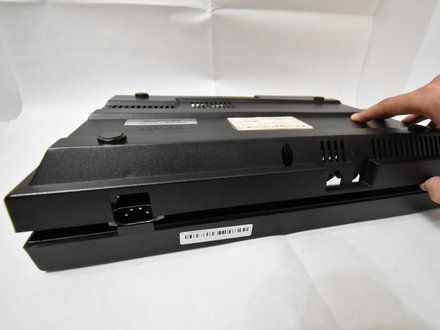

• Flip the console back over.

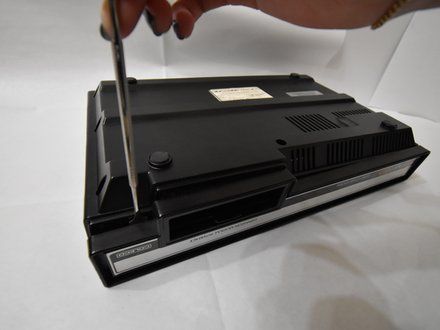

• Lift the front panel off. I would reccomended using a metal spudger along the rim of the top to safely remove it and set it aside.

Step 3

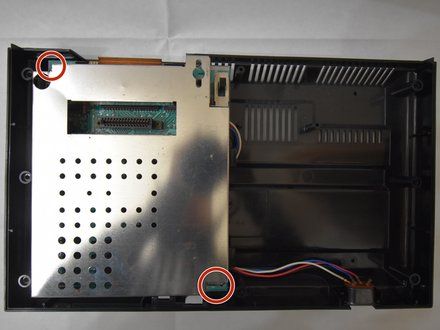

• Remove the two 15mm Phillips #1 screws holding the casing in place.

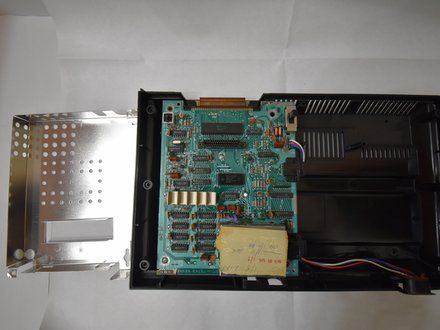

• Carefully lift the casing from the motherboard.

Step 4

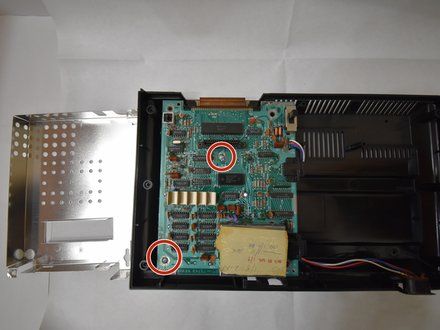

• Remove the center Phillips #1 screw near the cartridge slot.
• Remove the second Phillips #1 screw near the RAM chips.
• Carefully lift and remove the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
