COLECOVISION CARTRIDGE READER
REPLACEMENT::
DeviceColecoVision
DifficultyVery difficult
Time30 minutes
Steps4
This guide is by Anastazia Kidder on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The purpose of this guide is to communicate steps on how to replace or repair the cartridge reader on a ColecoVision.

Tools: Phillips #1 Screwdriver; Metal Spudger; Spudger; FixHub Power Series Smart Soldering Iron; Desoldering Pump

Parts: 15 Pin Card Edge Connector (Cartridge Reader)


STEP 1::
[step 1 photo]

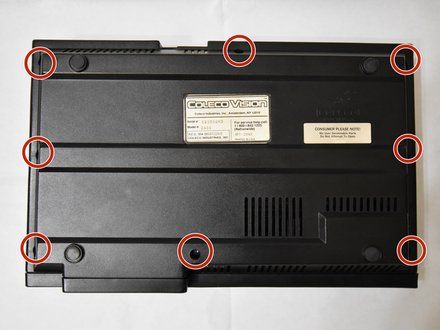

• Flip the console upside down and remove the eight 15mm Phillips #1 screws.

STEP 2::
[step 2 photo] [step 2 photo]

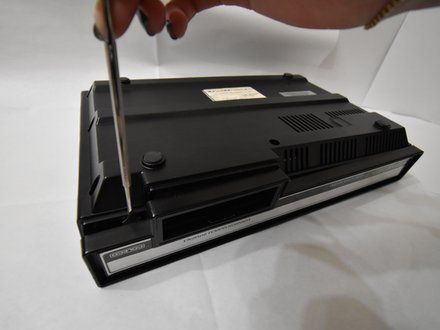

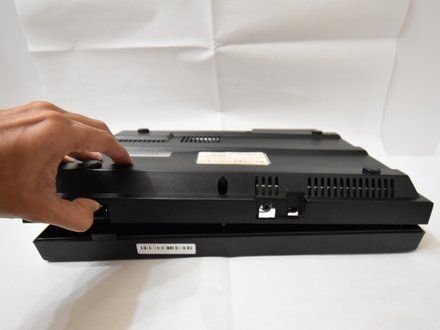

• Use the metal spudger along the bottom rim of the front panel to safely remove the top of the console. Set aside the top.

STEP 3::
[step 3 photo] [step 3 photo]

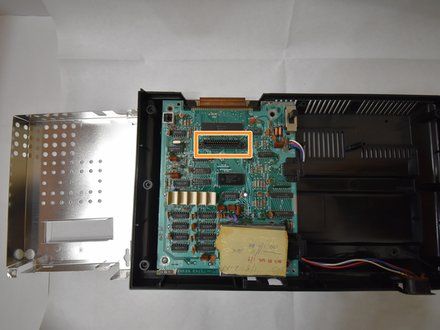

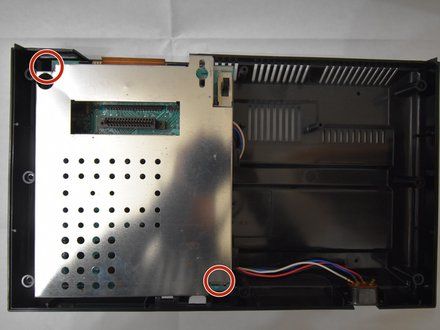

• Remove the two 15mm Phillips #1 screws holding the casing in place.
• Remove the casing to reveal the cartridge reader.

STEP 4::
[step 4 photo] [step 4 photo] [step 4 photo]

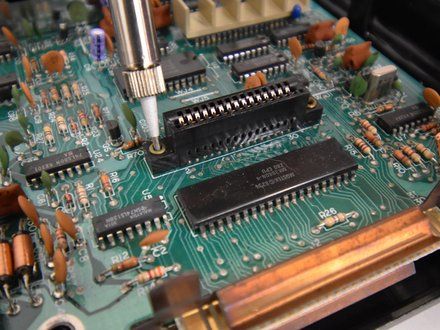

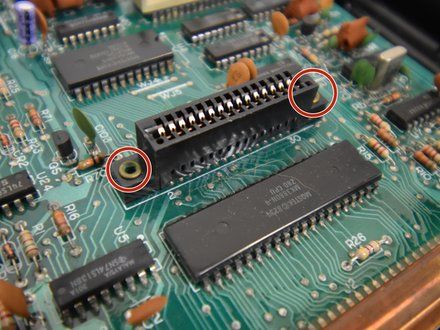

• Desolder the sides of the cartridge reader using the soldering iron and desolder pump (https://www.ifixit.com/en-ca/products/desoldering-pump).
    • Refer to this soldering technique guide for reference (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750)
• Patiently wait for the cartridge reader to cool down after being desoldered.
• CAUTION: It's very important to remove all the tin from the motherboard and cartridge reader before lifting it from the motherboard. Failure to do so could damage the motherboard.

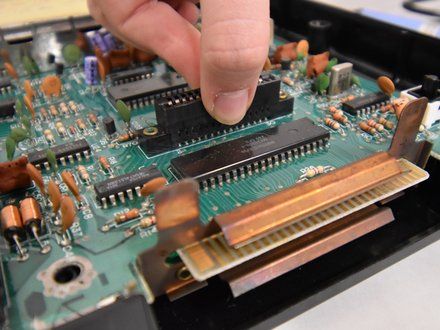

• Carefully lift up the cartridge reader. A plastic spudger might be helpful in order to easily remove the cartridge reader.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Anastazia Kidder on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
