Power Macintosh G3 Blue and White PRAM Battery Replacement

Device	Power Macintosh G3 Blue and White
Difficulty	Easy
Time	5 - 7 minutes
Steps	3

This guide is by [deleted] on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Parts: Power Macintosh G3 PRAM Battery

Step 1

• NOTE: Unfortunately, I am unable to provide OG content for this step due to my Power Mac's outer case being severely damaged. Once I get my new outer case I will update this step.

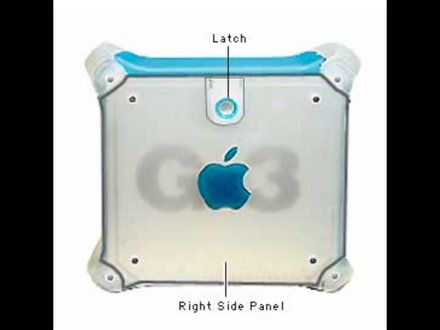

• Lift the latch on the right side panel to reveal the internals.
• NOTE: If you are doing this on a hard surface I highly suggest you put a mat down between the door and the ground to prevent scratches.

Step 2

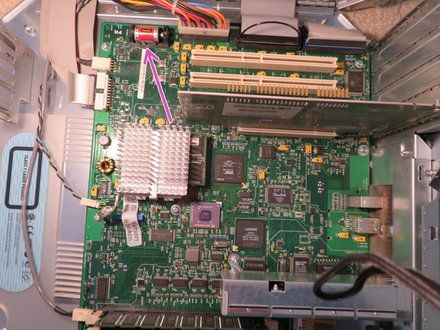

• Locate the PRAM battery.
• NOTE: The PRAM battery is usually at the top right corner of the logic board.

Step 3

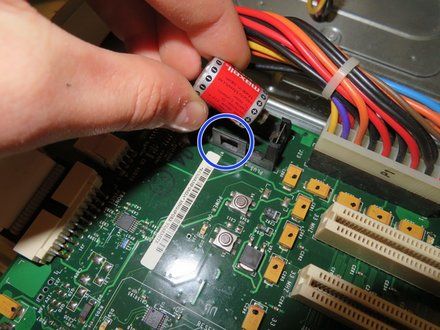

• Lift the battery out of the PRAM battery holder.
• What I did to free the PRAM battery is I broke the plastic battery holder identical to the circled one on the other side of the PRAM battery, then I was able to free the PRAM battery. I couldn't get the PRAM battery to budge without breaking the holder.
• NOTE: Don't be worried, breaking the plastic holder won't cause much damage nor will it hinder the ability for the PRAM battery to stay in place. Only break one holder, though.

Conclusion

To reassemble your device, follow these instructions in reverse order.
