ColecoVision Power Switch Replacement

Device	ColecoVision
Difficulty	Very difficult
Time	30 minutes
Steps	6

This guide is by Bobby on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The purpose of this guide is to communicate steps on how to replace or repair the power switch on a ColecoVision.

Tools: Soldering Iron; Metal Spudger; Desoldering Pump; Phillips #1 Screwdriver

Step 1

• Flip the ColecoVision over with the pegs facing the ceiling.

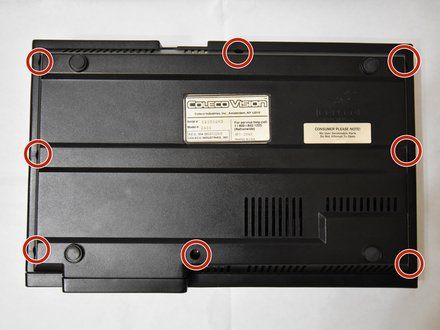

• Remove the eight 15mm screws holding the bottom of the ColecoVision in place using the Phillips #1 screwdriver.

Step 2

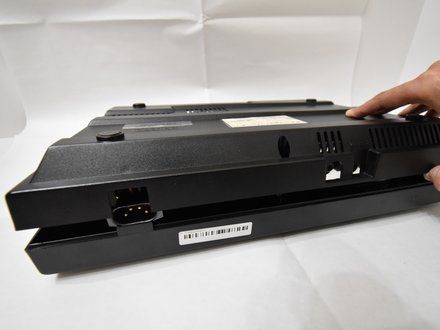

• Carefully remove the bottom of the ColecoVision out of the top.

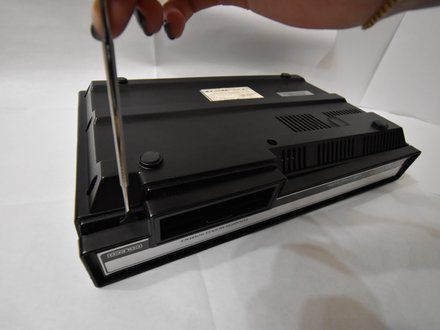

• I would recommend running a metal spudger along the rim of the case to remove the bottom.

Step 3

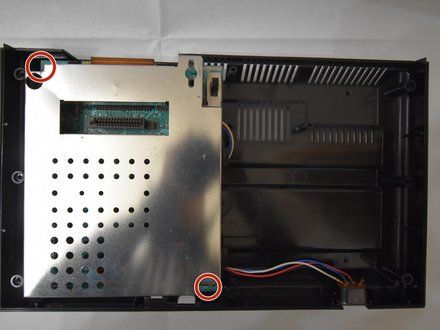

• Remove the two 15 mm screws holding the casing in place using the Phillips #1 screwdriver.

Step 4

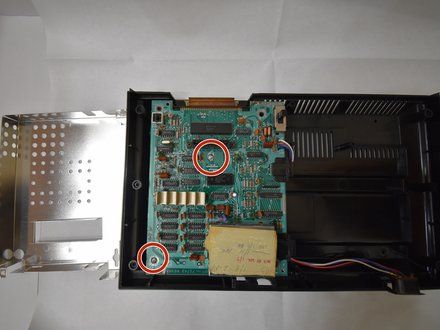

• Using a Phillips #1 screwdriver, remove the two 15mm screws on the motherboard.

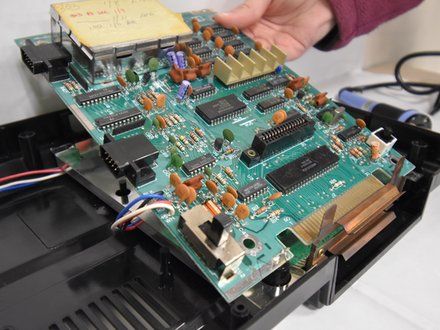

• Pull the entire motherboard towards the back of the system and carefully lift the entire motherboard.

Step 5

• Flip the motherboard over.

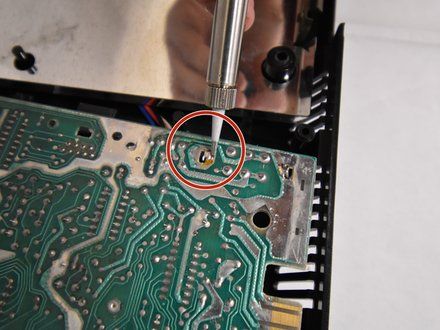

• Using a soldering iron, carefully desolder the power switch from the motherboard.
• NOTE: Refer to this soldering technique guide (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750) for reference.

Step 6

• Wait for power switch to cool down.
• Turn the motherboard over upright.

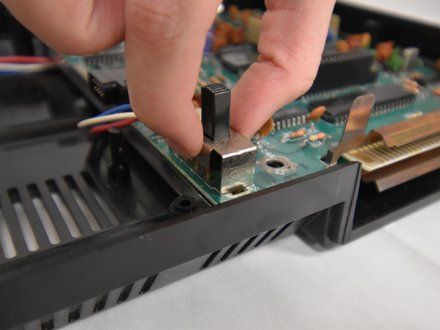

• Carefully lift up the power switch to completely remove it from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
