IBM THINKPAD T30 HARD DRIVE REPLACEMENT::
DeviceIBM ThinkPad T30
DifficultyEasy
Time5 - 10 minutes
Steps5
This guide is by Allie Knauer on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

In this guide, you will learn how to remove and replace a hard drive for an IBM ThinkPad T30 laptop. The laptop comes with an IDE / PATA Hard disk drive that is either 20/40/60GB and is easy to remove only using a few tools

Tools: Phillips #1 Screwdriver; iFixit Opening Tool

Parts: Crucial MX500 1 TB SSD; 250 GB SSD; Crucial BX500 500 GB SSD; 2 TB SSD


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

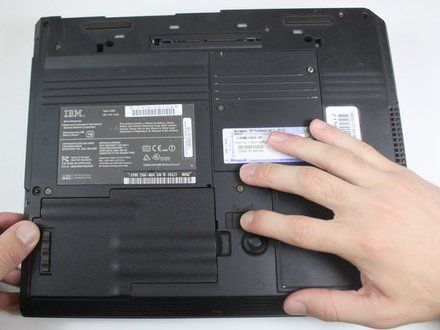

• NOTE: Make sure the ThinkPad is off and the power supply is unplugged.

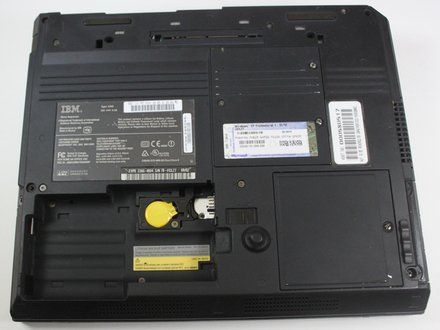

• Flip the ThinkPad upside down with the bottom facing you.

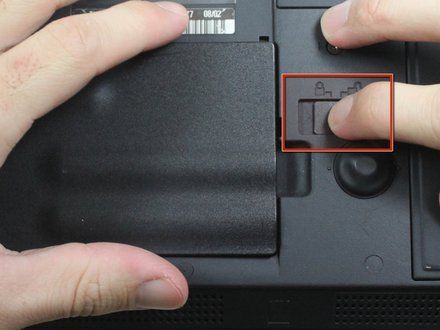

• Slide the latch to the right into the unlock position.
• While holding the latch in the unlock position, lift the battery out with your other hand.

STEP 2 :: HARD DRIVE::
[step 2 photo]

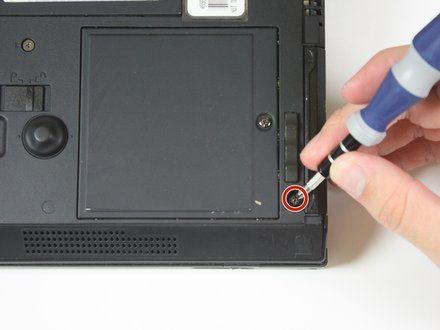

• Flip to the back of the Thinkpad.
• Remove the single 11 mm screw using the Phillips #0 screwdriver.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

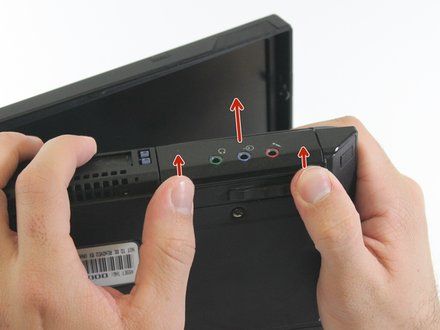

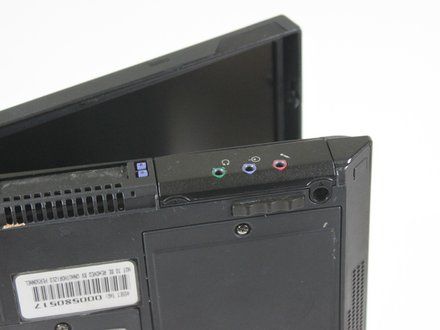

• Flip the Thinkpad on its side to get a better view of the hard drive.

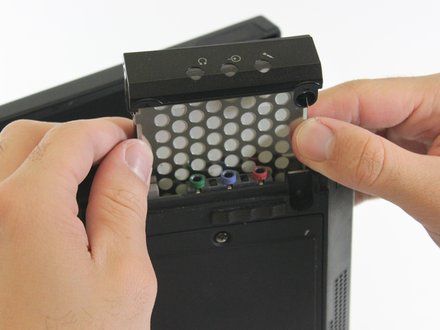

• Push on the lower edge of the hard drive cover to detach the hard drive from the Thinkpad.
• Once you have detached the hard drive from the Thinkpad, slide the hard drive out of the device.

STEP 4::
[step 4 photo] [step 4 photo]

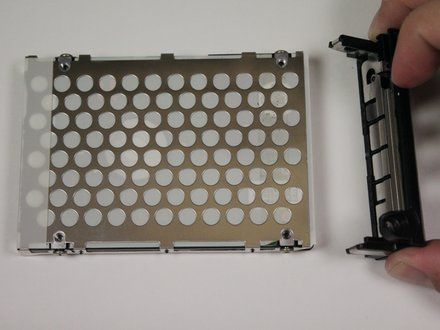

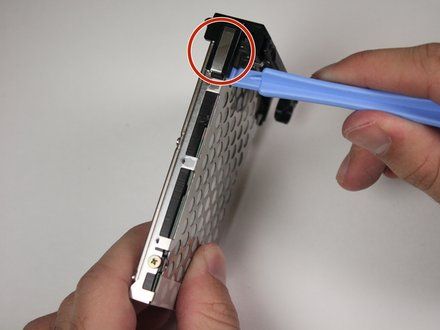

• Using the plastic tool, remove the black plastic cover from the main body of the hard drive.
    • Place the plastic tool at the ends of the plastic cover to detach it from the hard drive.
• NOTE: Once the black plastic has been detached, the plastic will then slide off the body of the hard drive.

STEP 5::
[step 5 photo] [step 5 photo]

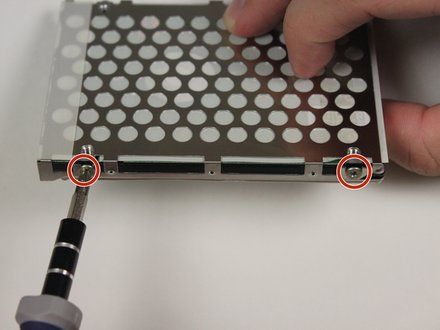

• Remove the four 2.8 mm screws from the mounting bracket using a Phillips #0 screwdriver.

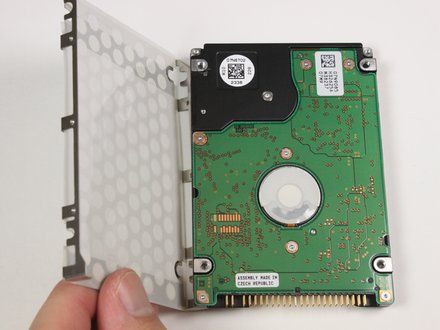

• Pull the mounting bracket off of the hard drive.
• NOTE: It may be easier to remove the mounting bracket by rotating it off of the hard drive as if it is on a hinge.

CONCLUSION::
To reassemble your device with a new hard drive, follow these instructions in reverse order with a new hard drive replacing the old one.
