IBM THINKPAD A31 CPU REPLACEMENT::
DeviceIBM ThinkPad A31
DifficultyModerate
Time15 minutes
Steps14
This guide is by Thomas Stone on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: iFixit Opening Tool; Phillips #1 Screwdriver; Flathead 3/32" or 2.5 mm Screwdriver

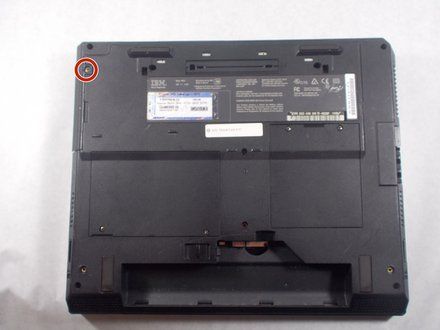

STEP 1::

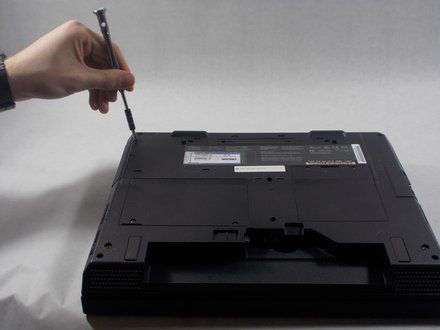

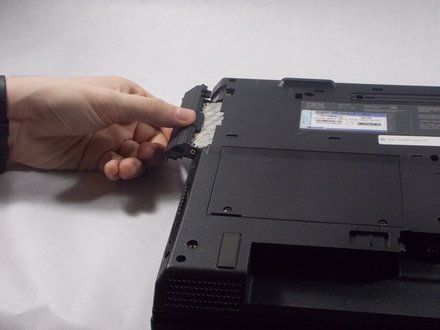

[step 1 photo] [step 1 photo] [step 1 photo]
• Remove the 6mm screw
• Pull out the hard drive
• REMINDER: The hard drive might be a little tough to pull out

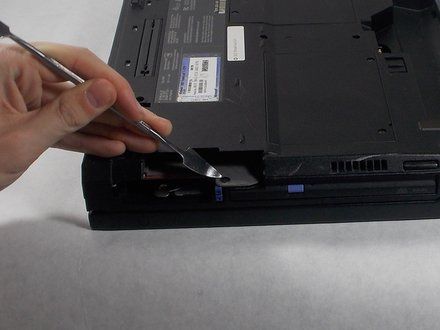

STEP 2::

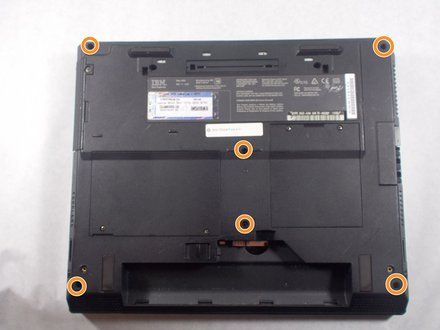

[step 2 photo] [step 2 photo] [step 2 photo]

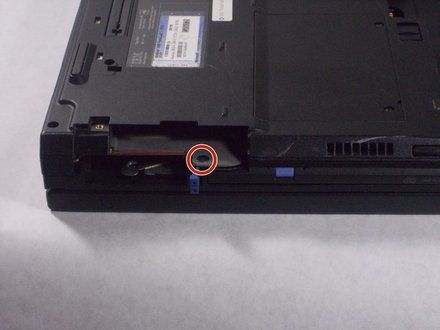

• CAUTION: The sticker is to keep the warranty on the laptop so once removed the warranty is void
• Peel the sticker and remove the 15mm screw
• Remove all 6 of the 16mm screws

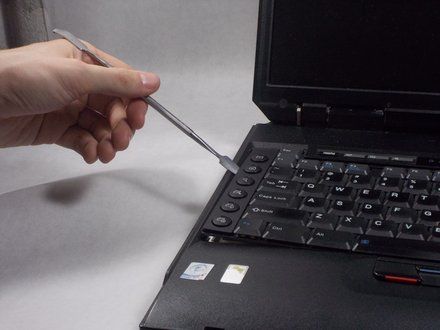

STEP 3::
[step 3 photo] [step 3 photo]

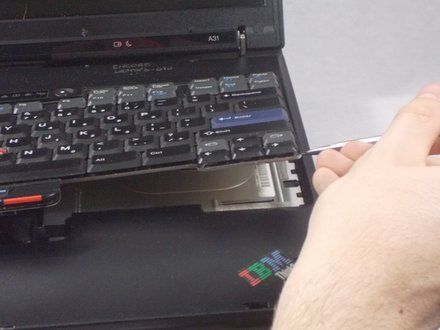

• use a prying tool and insert it on the cracks on the sides of the keyboard and lift gently until you here a click
• repeat this step on all sides of the keyboard until the keyboard is completely detached from the laptop

STEP 4::

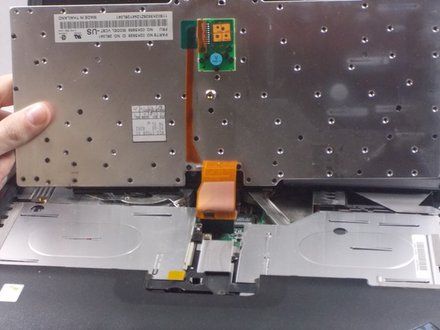

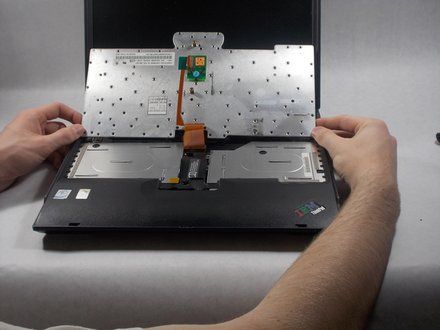

[step 4 photo] [step 4 photo] [step 4 photo]

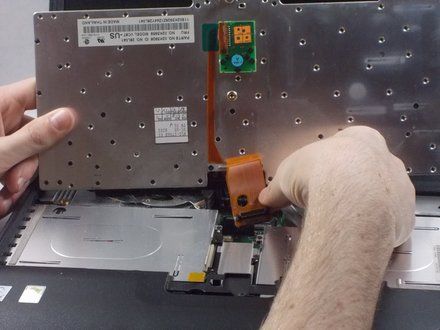

• Lift the keyboard and remove the keyboard ribbon cable from the laptop

STEP 5::

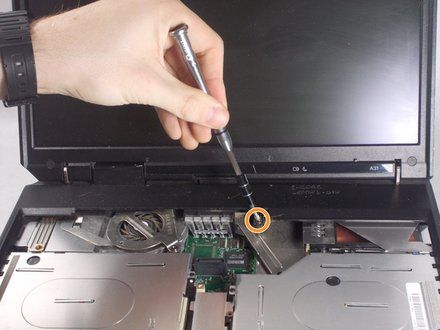

[step 5 photo] [step 5 photo]

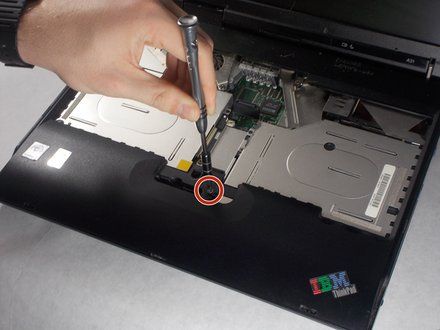

• Remove the one 21mm screw
• Remove the 6mm screw

STEP 6::

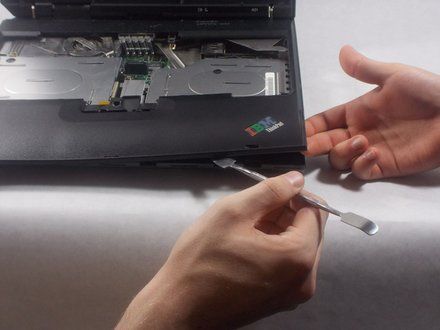

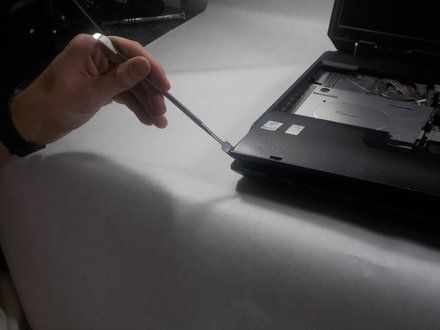

[step 6 photo] [step 6 photo]
• Take the tool and run it under the black case.

STEP 7::
[step 7 photo] [step 7 photo] [step 7 photo]

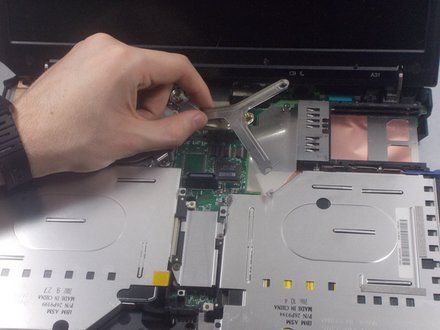

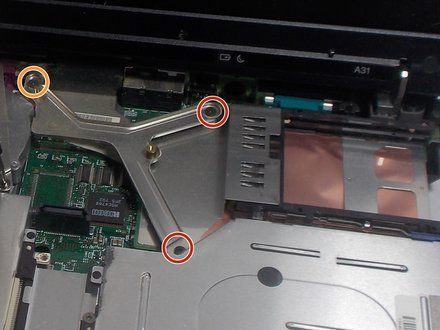

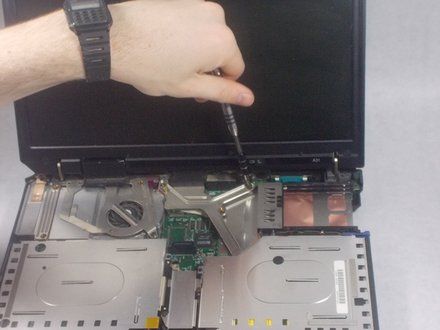

• Unscrew the 2 (17mm) screws
• Unscrew the 6mm screw

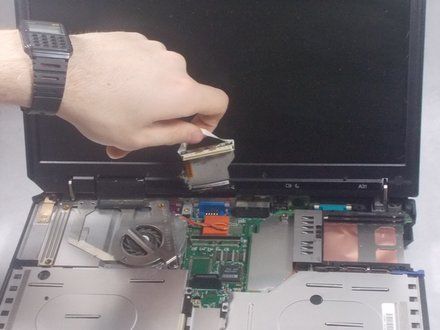

STEP 8::

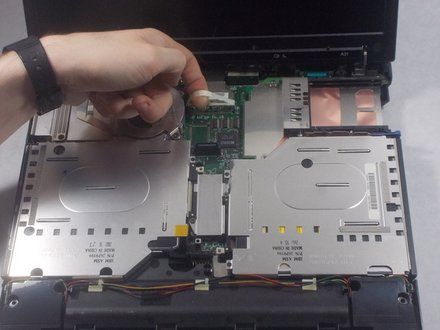

[step 8 photo] [step 8 photo]
• Gently disconnect the white display ribbon cable
• CAUTION: Pulling on the ribbon cable too hard could result in worse or faulty connection.

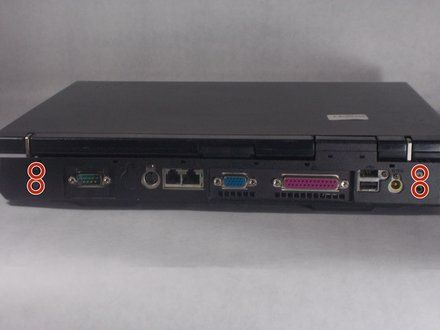

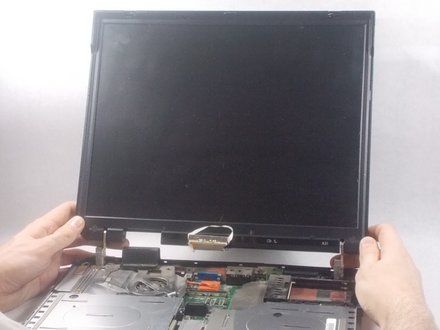

STEP 9::

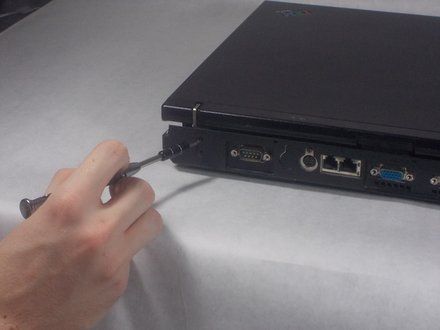

[step 9 photo] [step 9 photo] [step 9 photo]
• Unscrew 4 (6mm) screws
• Lift screen straight up
• CAUTION: If not lifted straight up the screen could get damaged

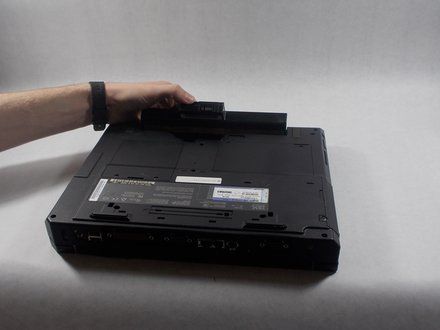

STEP 10::
[step 10 photo] [step 10 photo]

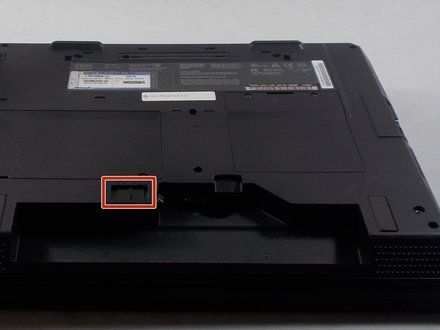

• Flip the ThinkPad over so that it is upside down.
• Push latch switch to the left.
• Gently lift the battery out and away from the ThinkPad
• NOTE: You have to hold the latch to the left while you remove the battery. Simply pushing once will not unlock the battery

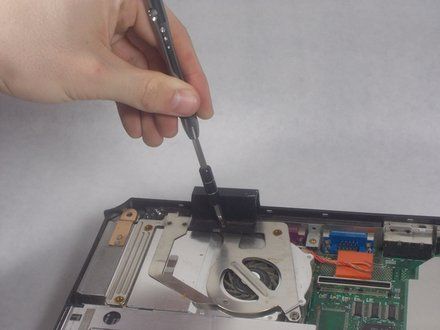

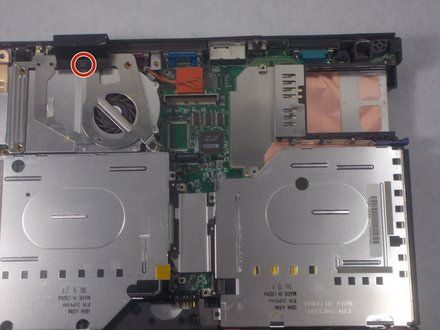

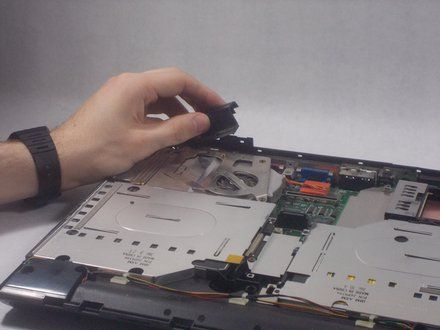

STEP 11::
[step 11 photo] [step 11 photo] [step 11 photo]
• Remove the 6mm screw
• LIft the bracket out

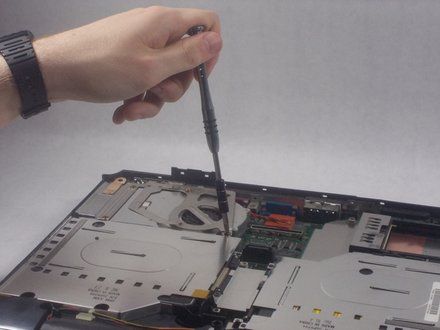

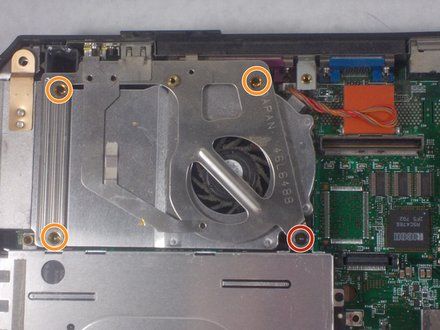

STEP 12::

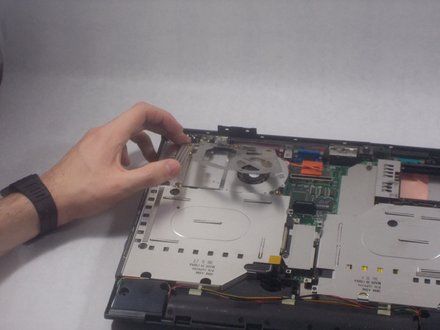

[step 12 photo] [step 12 photo] [step 12 photo]
• Remove one 6mm screw
• Remove 3 18mm screws
• Take off the bracket on the CPU fan

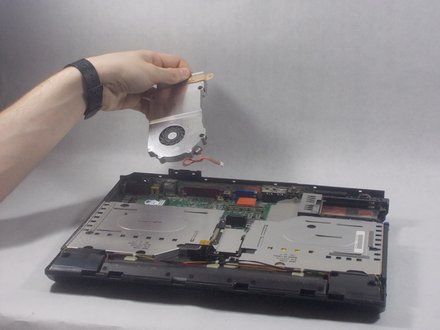

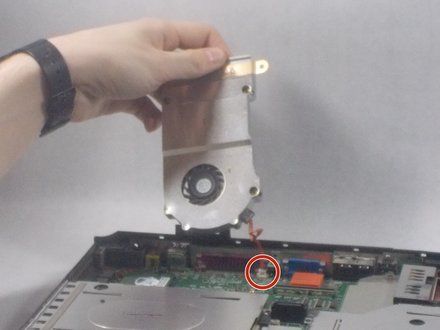

STEP 13::

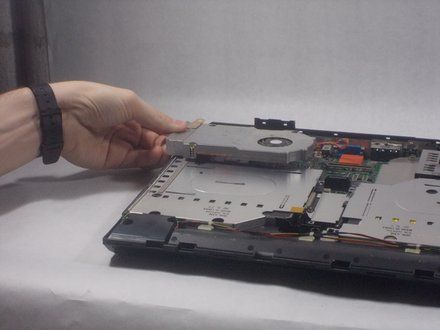

[step 13 photo] [step 13 photo] [step 13 photo]
• Lift the CPU fan
• Pull out the cable attached to the motherboard

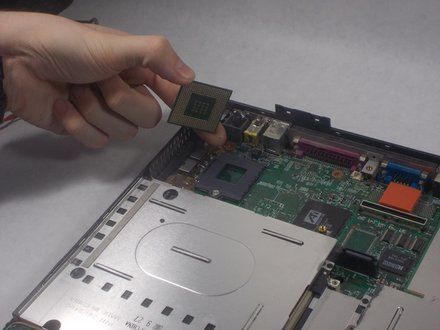

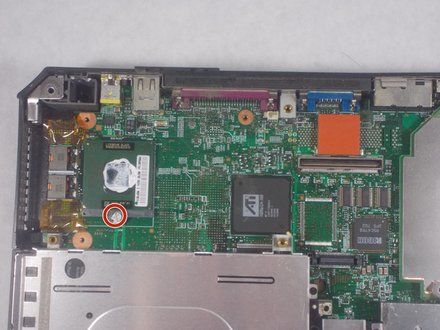

STEP 14::
[step 14 photo] [step 14 photo]
• Turn the locking screw to unlock with the flat head screwdriver
• LIft the CPU out

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Thomas Stone on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
