IBM ThinkPad A31 Hard Drive Replacement

Device	IBM ThinkPad A31
Difficulty	Easy
Time	3 minutes
Steps	2

This guide is by Thomas Stone on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Phillips #1 Screwdriver

Step 1

• Flip the ThinkPad over so that it is upside down.

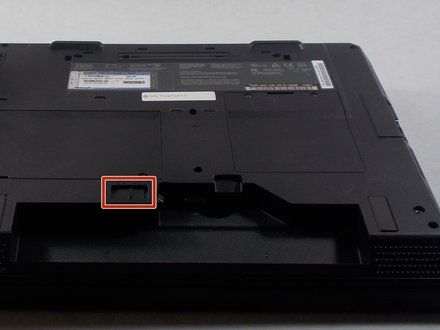

• Push latch switch to the left.

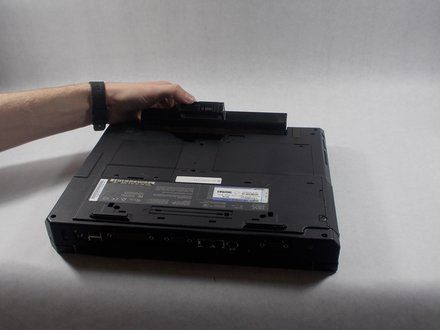

• Gently lift the battery out and away from the ThinkPad
• NOTE: You have to hold the latch to the left while you remove the battery. Simply pushing once will not unlock the battery

Step 2

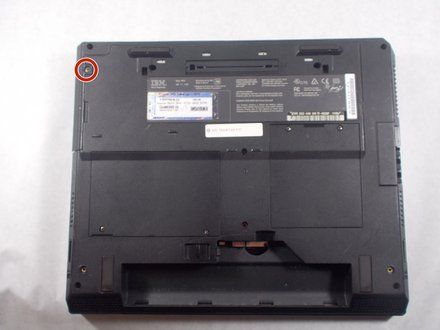

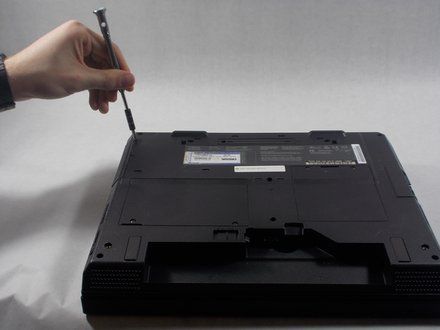

• Remove the 6mm screw

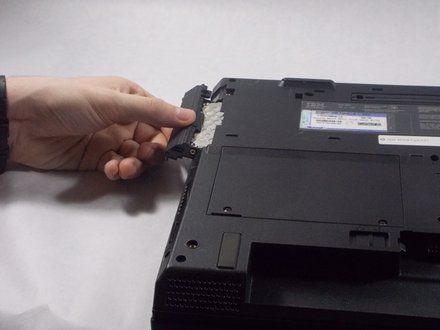

• Pull out the hard drive
• REMINDER: The hard drive might be a little tough to pull out

Conclusion

To reassemble your device, follow these instructions in reverse order.
